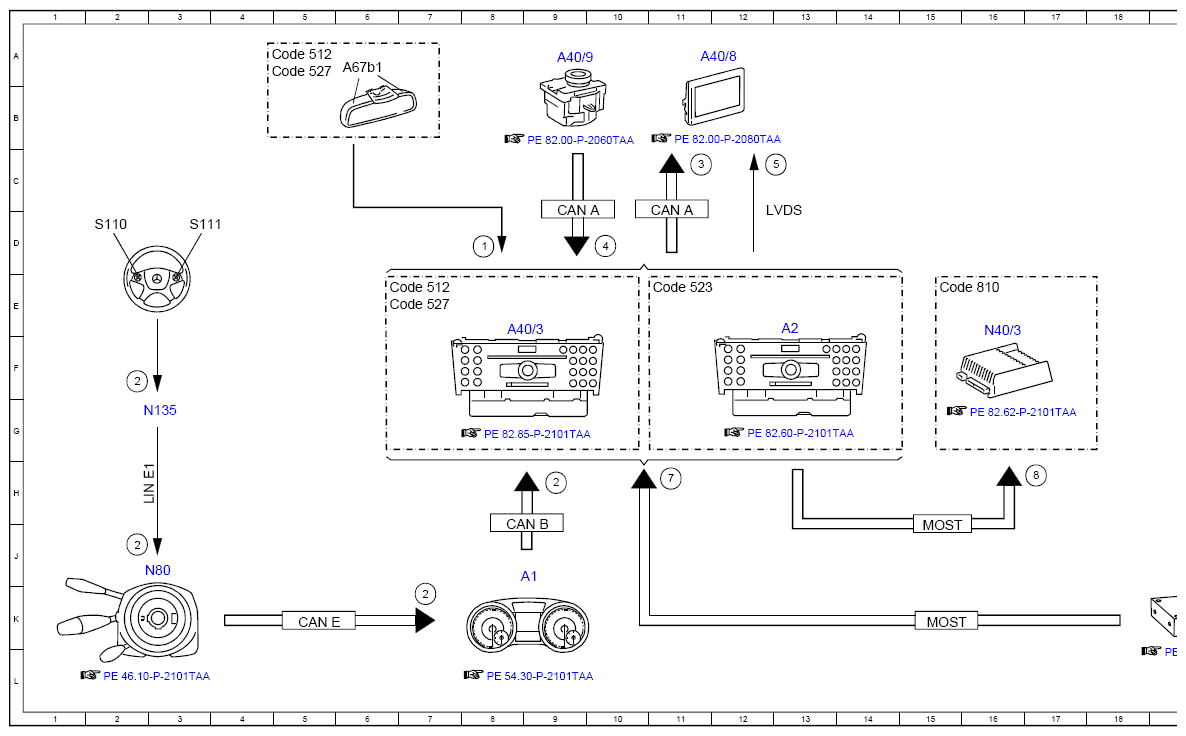

Electrical Function Schematic For SDAR Function - PE82.60-P-2060-97TAA
Model 172.4
up to model year 2017
with code 536 (Sirius satellite radio complete system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Voice input, signal | 8D |
| 2 | Multifunction steering wheel button group, signal | 2J |
| 2 | Multifunction steering wheel button group, signal | 7K |
| 2 | Multifunction steering wheel button group, signal | 2F |
| 2 | Multifunction steering wheel button group, signal | 9H |
| 3 | Switch-on request, signal | 11C |
| 4 | Operation, signal | 10D |
| 5 | Low voltage differential signal video signal data transfer, signal | 13C |
| 6 | SDAR antenna, signal | 21K |
| 7 | Audio, signal | 11H |
| 8 | Sound system amplifier, actuation | 17H |
| A1 | Instrument cluster | 8J |
| A2 | Radio | 13E |
| A28/11 | Multifunction antenna | 22L |
| A40/3 | COMAND® control unit | 8E |
| A40/8 | Audio/COMAND® display | 11A |
| A40/9 | Audio/COMAND® control panel | 9A |
| A67b1 | Inside rearview mirror microphone | 6A |
| CAN A | Telematics CAN | 9D |
| CAN A | Telematics CAN | 11D |
| CAN B | Interior CAN | 8J |
| CAN E | Chassis CAN | 5K |
| Code 512 | COMAND® APS with DVD changer | 6E |
| Code 512 | COMAND® APS with DVD changer | 4A |
| Code 523 | Audio 20 radio | 11E |
| Code 527 | COMAND® APS with single DVD drive (with navigation) | 6E |
| Code 527 | COMAND® APS with single DVD drive (with navigation) | 4A |
| Code 810 | Sound system | 15E |
| LIN E1 | Steering LIN | 2H |
| LVDS | Low voltage differential signal | 13D |
| MOST | Media Oriented System Transport | 15K |
| MOST | Media Oriented System Transport | 15J |
| N135 | Steering wheel electronics | 2G |
| N40/3 | Sound system amplifier control unit | 16E |
| N80 | Steering column module control unit | 2J |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 19J |
| S110 | Left multifunction steering wheel button group | 2D |
| S111 | Right multifunction steering wheel button group | 3D |
