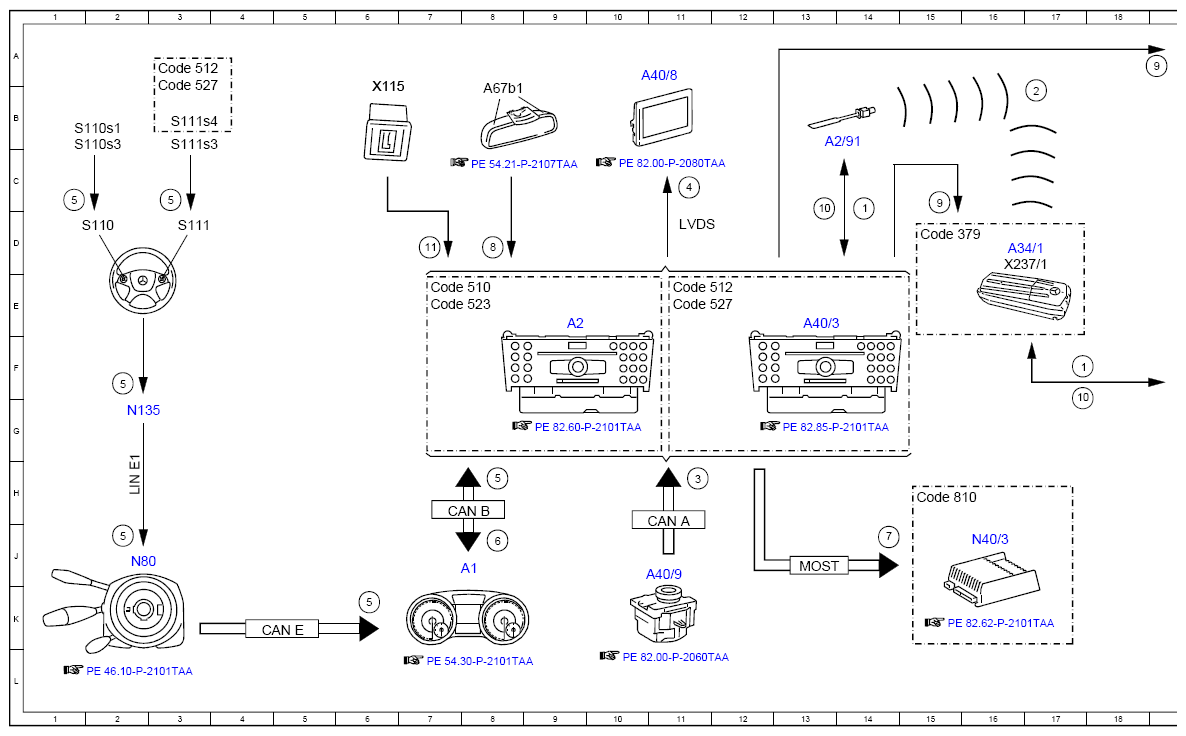

Electrical Function Schematic For Cellular Phone - PE82.70-P-2051-97TAB
Model 172.4
as of model year 2014 up to model year 2017
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Telephone, signal | 14D |
| 1 | Telephone, signal | 22G |
| 1 | Telephone, signal | 17F |
| 1 | Telephone, signal | 20D |
| 10 | Internet, signal | 13D |
| 10 | Internet, signal | 17G |
| 10 | Internet, signal | 20D |
| 10 | Internet, signal | 22G |
| 11 | Address data, signal | 7D |
| 2 | Bluetooth®, signal | 17B |
| 3 | Operation, signal | 11H |
| 4 | Audio/COMAND® display, message | 11C |
| 5 | Multifunction steering wheel button group, signal | 6K |
| 5 | Multifunction steering wheel button group, signal | 2J |
| 5 | Multifunction steering wheel button group, signal | 2F |
| 5 | Multifunction steering wheel button group, signal | 8H |
| 5 | Multifunction steering wheel button group, signal | 3C |
| 5 | Multifunction steering wheel button group, signal | 1C |
| 6 | Instrument cluster, message | 8J |
| 7 | Sound system amplifier, actuation | 14J |
| 8 | Voice input, signal | 8D |
| 9 | Switch-on request, signal | 15C |
| 9 | Switch-on request, signal | 19A |
| A1 | Instrument cluster | 7J |
| A2 | Radio | 9E |
| A2/91 | Bluetooth® antenna | 13B |
| A28/11 | Multifunction antenna | 23H |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 20F |
| A34/1 | Telephone module with Bluetooth® (SAP profile) | 16D |
| A34/15 | Mobile phone holder | 20C |
| A40/3 | COMAND® control unit | 13E |
| A40/8 | Audio/COMAND® display | 10A |
| A40/9 | Audio/COMAND® control panel | 10J |
| A67b1 | Inside rearview mirror microphone | 8B |
| CAN A | Telematics CAN | 11J |
| CAN B | Interior CAN | 7H |
| CAN E | Chassis CAN | 5K |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 15D |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 19F |
| Code 386 | Comfort telephony | 19A |
| Code 386 | Comfort telephony | 19F |
| Code 510 | Audio 20 with CD changer | 7E |
| Code 512 | COMAND® APS with DVD changer | 3A |
| Code 512 | COMAND® APS with DVD changer | 11E |
| Code 523 | Audio 20 radio | 7E |
| Code 527 | COMAND® APS with single DVD drive (with navigation) | 3B |
| Code 527 | COMAND® APS with single DVD drive (with navigation) | 11E |
| Code 810 | Sound system | 15H |
| LIN E1 | Steering LIN | 2H |
| LVDS | Low voltage differential signal | 11D |
| MOST | Media Oriented System Transport | 13J |
| N135 | Steering wheel electronics | 2G |
| N40/3 | Sound system amplifier control unit | 16J |
| N80 | Steering column module control unit | 2J |
| S110 | Left multifunction steering wheel button group | 1D |
| S110s1 | Scroll forward/back button | 1B |
| S110s3 | System selection button | 1C |
| S111 | Right multifunction steering wheel button group | 3D |
| S111s3 | Accept/terminate phone call button | 3C |
| S111s4 | Voice control system ON button | 3B |
| X115 | USB electrical connector | 6B |
| X237/1 | Mobile phone contact plate | 16D |
| X237/1 | Mobile phone contact plate | 20C |
