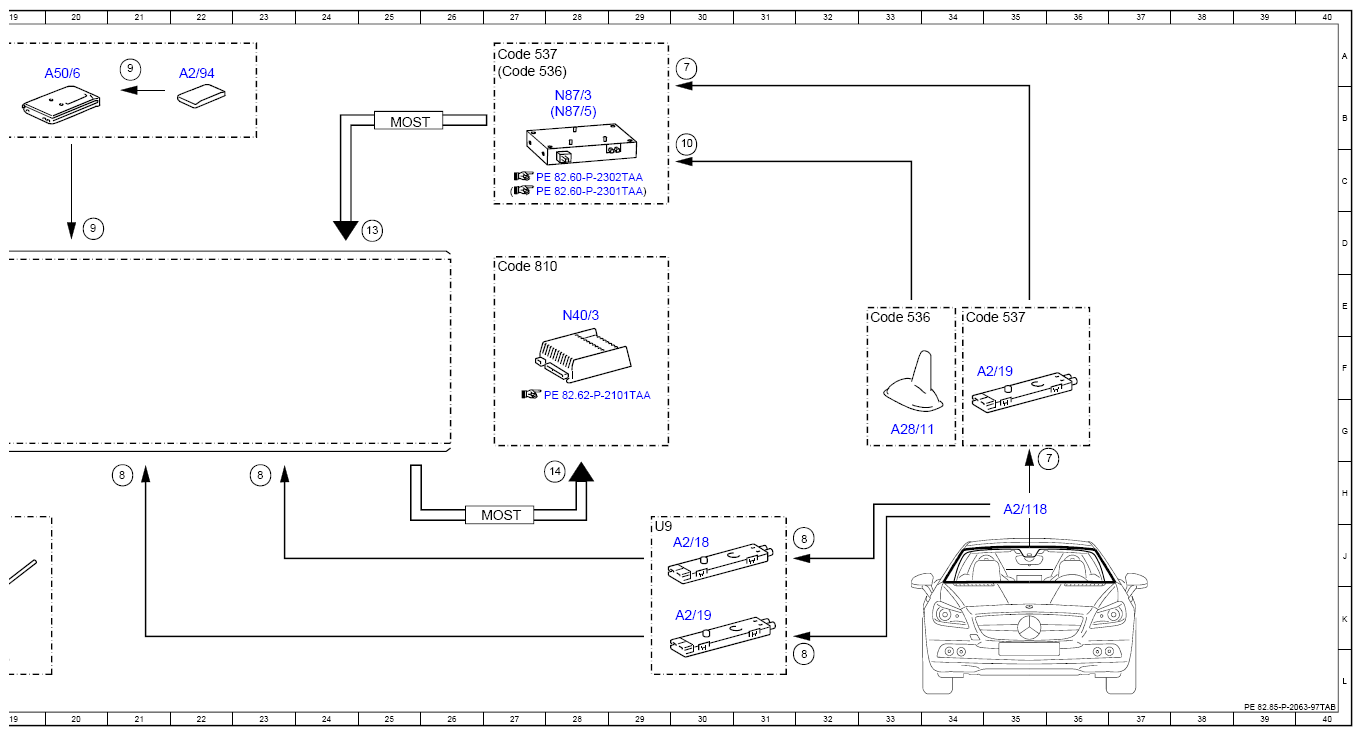

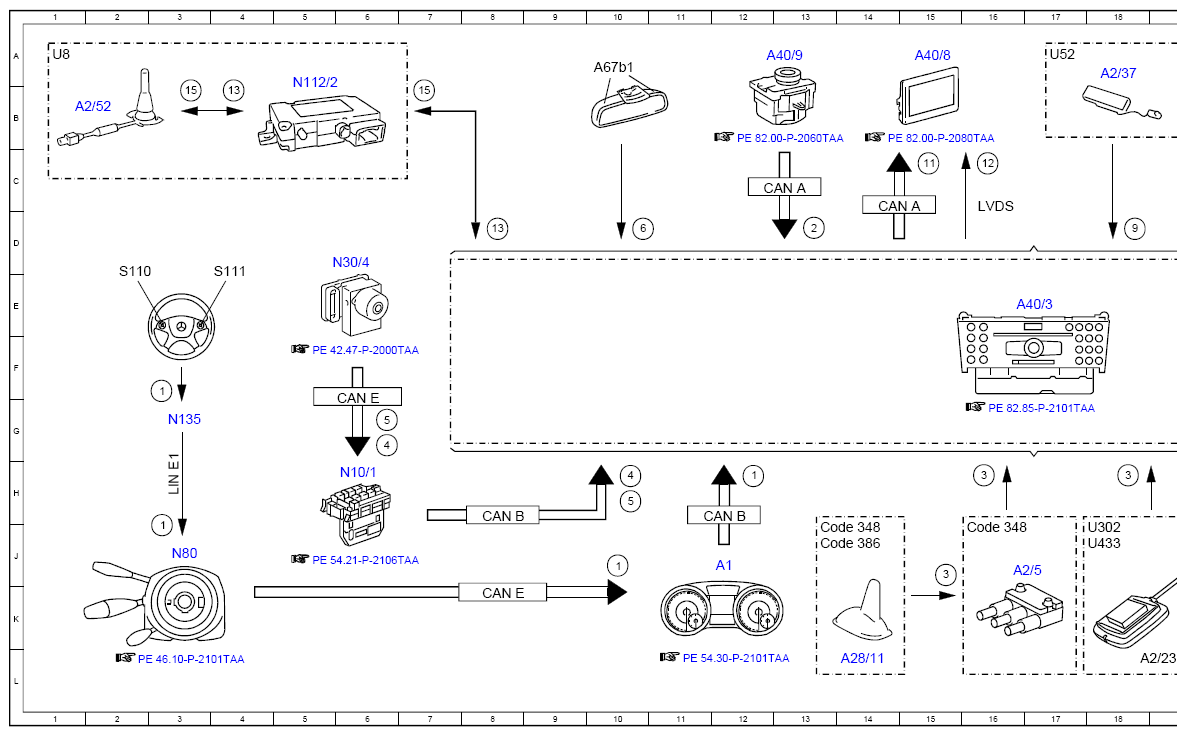

Electrical Function Diagram For Navigation Mode (COMAND®), Function - PE82.85-P-2063-97TAB
Model 172.4
as of model year 2014 up to model year 2017
with code 512 (COMAND® APS with DVD changer)
Model 172.4
as of model year 2014 up to model year 2017
with code 527 (COMAND® APS with single DVD drive (with navigation))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 12H |
| 1 | Multifunction steering wheel button group, signal | 3F |
| 1 | Multifunction steering wheel button group, signal | 3J |
| 1 | Multifunction steering wheel button group, signal | 10J |
| 10 | SDAR antenna, signal | 30B |
| 11 | Switch-on request, signal | 15C |
| 12 | Low voltage differential signal video signal data transfer, signal | 16C |
| 13 | Traffic data, signal | 25D |
| 13 | Traffic data, signal | 4B |
| 13 | Traffic data, signal | 8D |
| 14 | Sound system amplifier, actuation | 28H |
| 15 | Position data, signal | 3B |
| 15 | Position data, signal | 7B |
| 2 | Operation, signal | 13D |
| 3 | GPS, signal | 16H |
| 3 | GPS, signal | 18H |
| 3 | GPS, signal | 15J |
| 4 | Wheel rotation direction, signal | 6G |
| 4 | Wheel rotation direction, signal | 10H |
| 5 | Wheel speed, signal | 10H |
| 5 | Wheel speed, signal | 6G |
| 6 | Voice input, signal | 10D |
| 7 | DAB band III, signal | 30A |
| 7 | DAB band III, signal | 36H |
| 8 | FM antenna, signal | 21H |
| 8 | FM antenna, signal | 23H |
| 8 | FM antenna, signal | 32L |
| 8 | FM antenna, signal | 32J |
| 9 | Vehicle Information and Communication System (VICS), signal | 18D |
| 9 | Vehicle Information and Communication System (VICS), signal | 20D |
| 9 | Vehicle Information and Communication System (VICS), signal | 21A |
| A1 | Instrument cluster | 12J |
| A2/118 | Windshield antenna | 35H |
| A2/18 | FM, AM and CL [ZV] antenna amplifier | 30J |
| A2/19 | FM 2, DAB and TV antenna amplifier | 30K |
| A2/19 | FM 2, DAB and TV antenna amplifier | 34F |
| A2/37 | VICS control unit | 18A |
| A2/5 | Global positioning system antenna splitter | 16J |
| A2/52 | Emergency call system antenna | 1B |
| A2/94 | ETC/DSRC antenna | 22A |
| A28/11 | Multifunction antenna | 14L |
| A28/11 | Multifunction antenna | 33G |
| A40/3 | COMAND® control unit | 17E |
| A40/8 | Audio/COMAND® display | 15A |
| A40/9 | Audio/COMAND® control panel | 13A |
| A50/6 | Dedicated Short-Range Communications control unit | 20A |
| A67b1 | Inside rearview mirror microphone | 10A |
| CAN A | Telematics CAN | 13C |
| CAN A | Telematics CAN | 14C |
| CAN B | Interior CAN | 12H |
| CAN B | Interior CAN | 8H |
| CAN E | Chassis CAN | 8K |
| CAN E | Chassis CAN | 6G |
| Code 348 | Emergency call/assistance system | 16J |
| Code 348 | Emergency call/assistance system | 13J |
| Code 386 | Comfort telephony | 13J |
| Code 536 | SIRIUS satellite radio | 27A |
| Code 536 | SIRIUS satellite radio | 33E |
| Code 537 | Digital radio | 27A |
| Code 537 | Digital radio | 34E |
| Code 810 | Sound system | 27D |
| LIN E1 | Steering LIN | 3H |
| LVDS | Low voltage differential signal | 16C |
| MOST | Media Oriented System Transport | 27H |
| MOST | Media Oriented System Transport | 25B |
| N10/1 | Front SAM control unit with fuse and relay module | 6H |
| N112/2 | Telematics services communication module | 5B |
| N135 | Steering wheel electronics | 3G |
| N30/4 | Electronic Stability Program control unit | 6D |
| N40/3 | Sound system amplifier control unit | 28E |
| N80 | Steering column module control unit | 3J |
| N87/3 | Digital Audio Broadcasting control unit | 28B |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 28B |
| S110 | Left multifunction steering wheel button group | 2E |
| S111 | Right multifunction steering wheel button group | 4E |
| U302 | Valid without comfort telephony | 18J |
| U433 | Valid without emergency call system | 18J |
| U52 | Valid for Japan | 17A |
| U8 | Valid for code 367 (Live Traffic Information) and subscription for real-time traffic data | 1A |
| U9 | Not valid for code 367 (Live Traffic Information) and subscription for real-time traffic data | 29J |
