(Cockpit Management And Data System (COMAND®) Control Unit Wiring Diagram - PE82.85-P-2101-97TAB)
Model 172.4
up to 2/29/16
with code 498 (Japanese version)
with code 527 (COMAND® APS with single DVD drive (with navigation))
except code 512 (COMAND® APS with DVD changer)

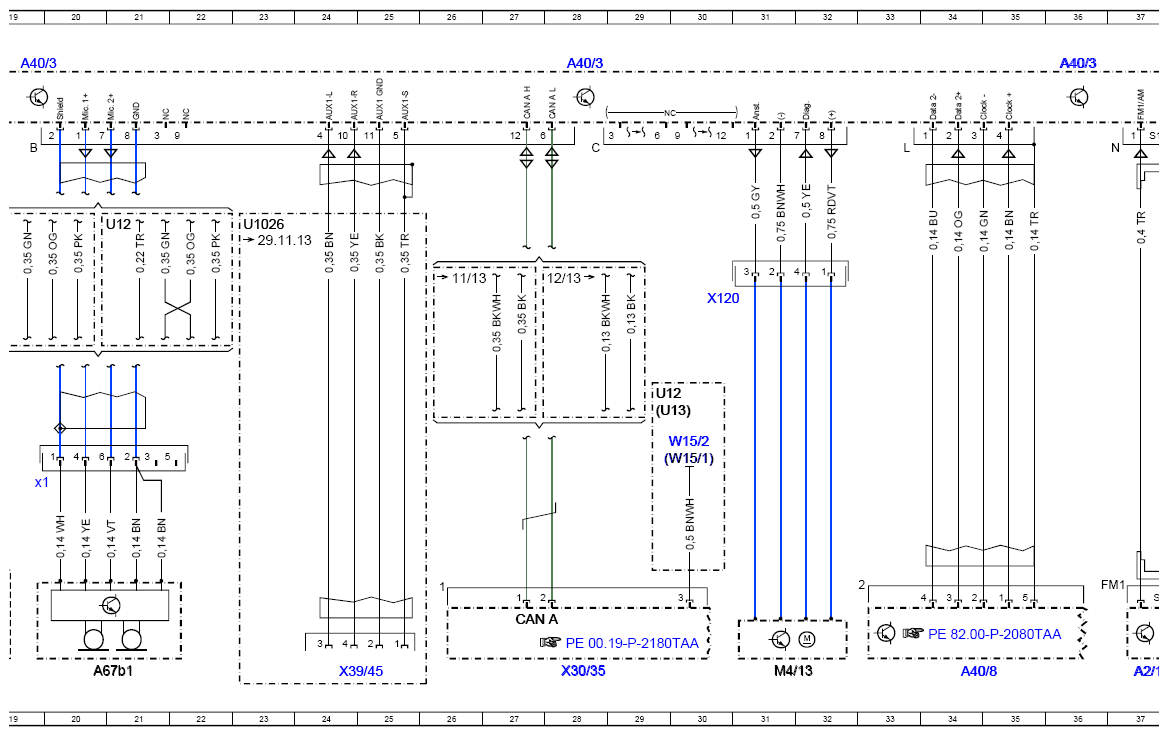

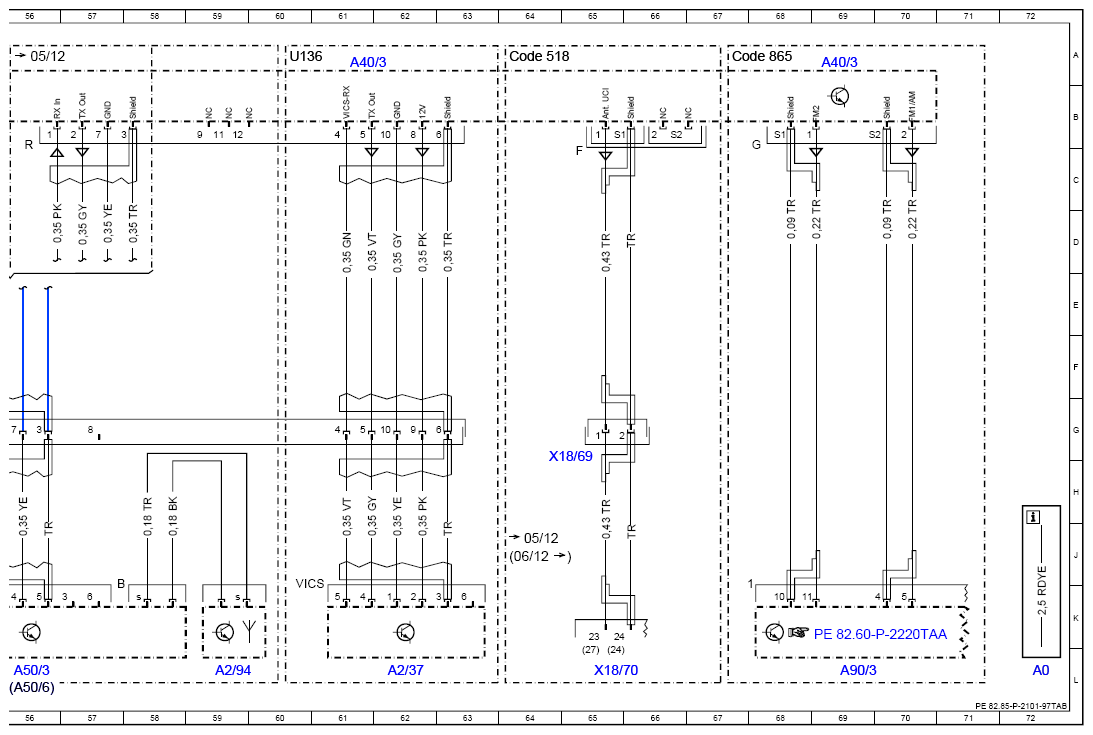

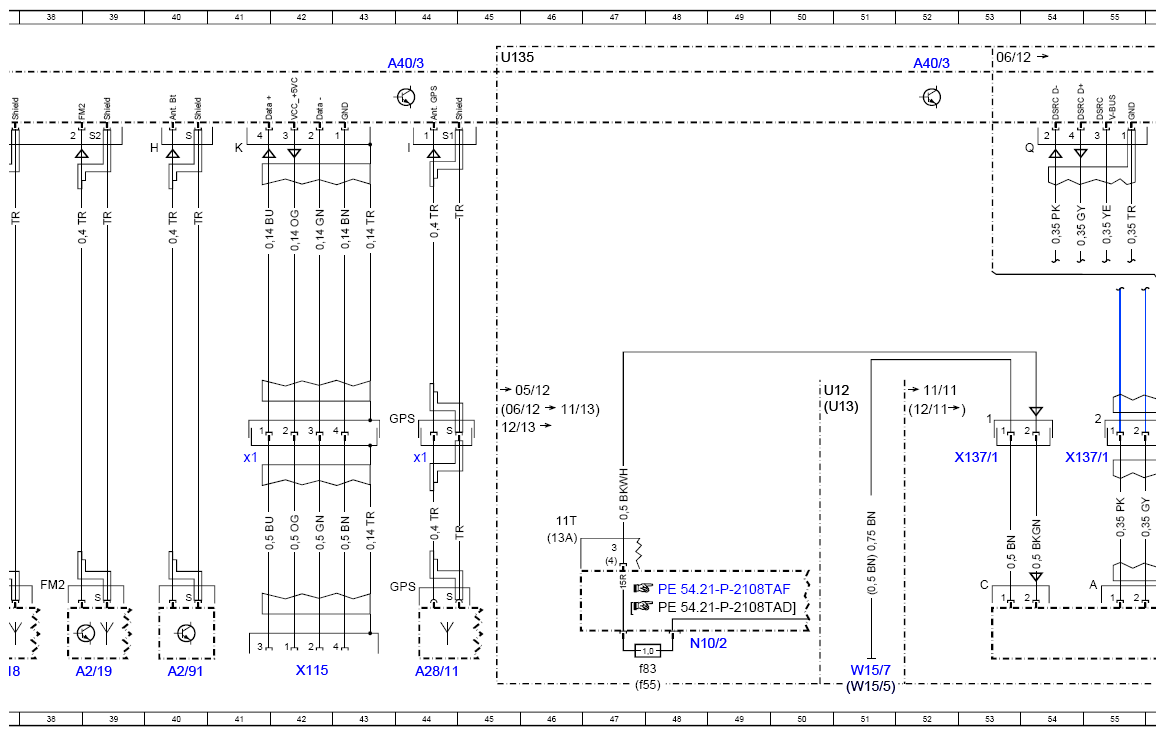

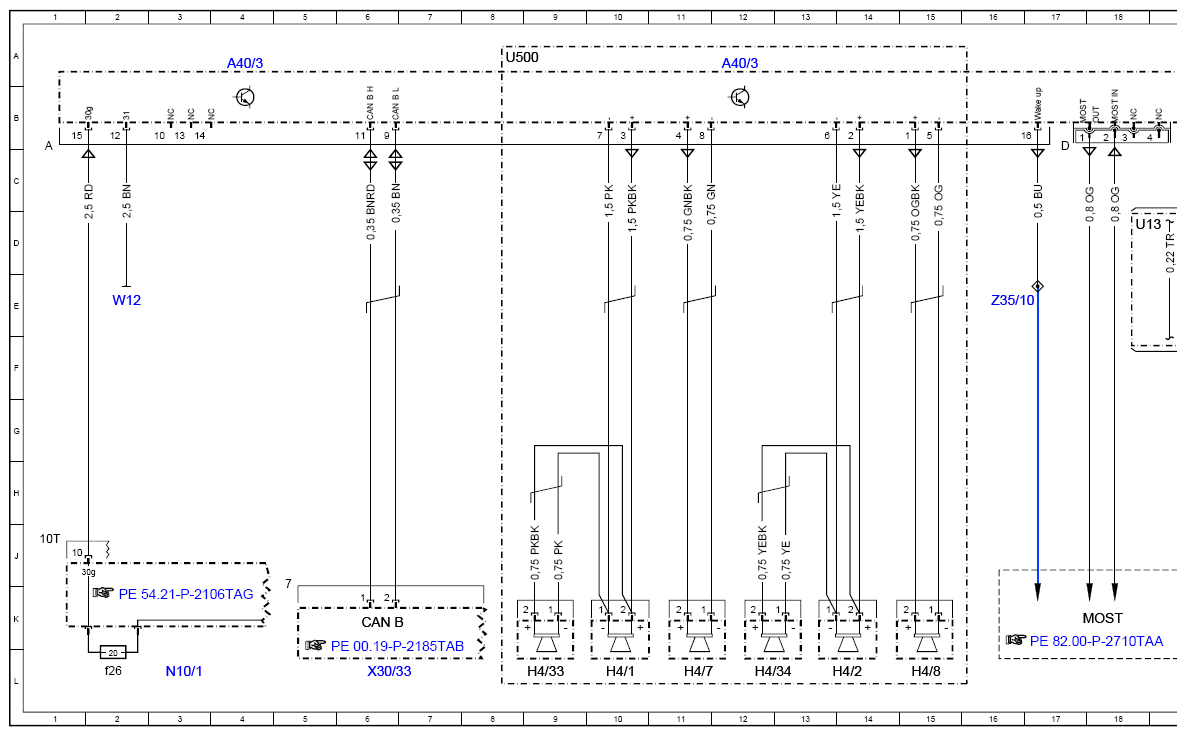

COMAND® controller unit A40/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| A2/18 | FM, AM and CL [ZV] antenna amplifier | 37L |
| A2/19 | FM 2, DAB and TV antenna amplifier | 39L |
| A2/37 | VICS control unit | 62L |
| A2/91 | Bluetooth® antenna | 40L |
| A2/94 | ETC/DSRC antenna | 59L |
| A28/11 | Multifunction antenna | 44L |
| A28/11x1 | GPS multifunction antenna electrical connector | 44H |
| A40/3 | COMAND® control unit | 4A |
| A40/3 | COMAND® control unit | 12A |
| A40/3 | COMAND® control unit | 19A |
| A40/3 | COMAND® control unit | 28A |
| A40/3 | COMAND® control unit | 36A |
| A40/3 | COMAND® control unit | 44A |
| A40/3 | COMAND® control unit | 52A |
| A40/3 | COMAND® control unit | 61A |
| A40/3 | COMAND® control unit | 69A |
| A40/8 | Audio/COMAND® display | 34L |
| A50/3 | Electronic Toll Collection control unit | 56L |
| A50/6 | Dedicated Short-Range Communications control unit | 56L |
| A67b1 | Inside rearview mirror microphone | 20L |
| A67b1x1 | Inside rearview mirror microphone electrical connector | 19H |
| A90/3 | TV digital tuner | 69L |
| CAN A | Telematics CAN | 27K |
| CAN B | Interior CAN | 6K |
| Code 518 | Media Interface | 64A |
| Code 865 | TV tuner (digital) | 67A |
| H4/1 | Left door speaker | 10L |
| H4/2 | Right door speaker | 14L |
| H4/33 | Left door tweeter | 9L |
| H4/34 | Right door tweeter | 12L |
| H4/7 | Left rear speaker | 11L |
| H4/8 | Right rear speaker | 15L |
| M4/13 | COMAND® fan motor | 31L |
| MOST | Media Oriented System Transport | 18K |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1f26 | Fuse 26 | 2L |
| N10/2 | Rear SAM control unit with fuse and relay module | 48K |
| N10/2f55 | Fuse 55 | 47L |
| N10/2f83 | Fuse 83 | 47L |
| U1026 | Not valid for media interface | 23D |
| U12 | Valid for left-hand drive vehicles | 29F |
| U12 | Valid for left-hand drive vehicles | 20D |
| U12 | Valid for left-hand drive vehicles | 50F |
| U13 | Valid for right-hand drive vehicles | 29G |
| U13 | Valid for right-hand drive vehicles | 18D |
| U13 | Valid for right-hand drive vehicles | 50G |
| U135 | Valid for Electronic Toll Collection | 45A |
| U136 | Valid for Vehicle Information and Communication System (VICS) | 60A |
| U500 | Not valid for sound system | 8A |
| W12 | Ground point (center console) | 2E |
| W15/1 | Right footwell ground point | 30H |
| W15/2 | Left footwell ground point | 30G |
| W15/5 | Left front footwell ground point | 51L |
| W15/7 | Right front footwell ground point | 51L |
| X115 | USB electrical connector | 42L |
| X115x1 | USB electrical connector connecting point | 41H |
| X120 | Radio fan electrical connector | 30E |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 53H |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 55H |
| X18/69 | Video media interface electrical connector | 65H |
| X18/70 | Media interface electrical connector | 65L |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 6L |
| X30/35 | Telematics CAN voltage distributor electrical connector | 28L |
| X39/45 | AUX jack electrical connector | 24L |
| Z35/10 | MOST wake-up signal connector sleeve | 16E |
