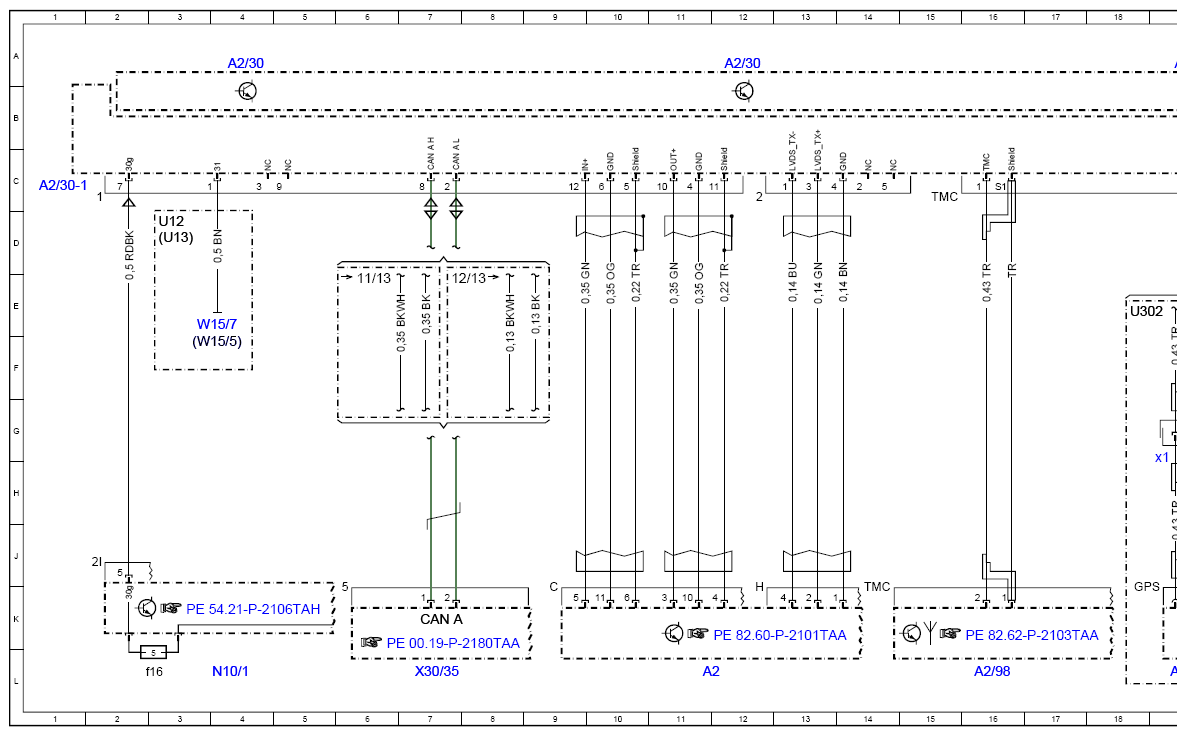

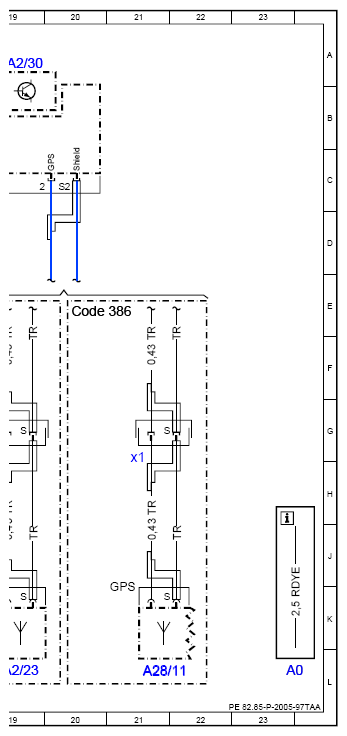

(Wiring Diagram Of Navigation System - PE82.85-P-2005-97TAA)
Model 172.4
up to 2/29/16
with code 508 (Navigation box preinstallation)
Model 172.4
up to 2/29/16
with code 509 (Navigation box)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| A2 | Radio | 11L |
| A2/23 | GPS antenna | 19L |
| A2/23x1 | GPS antenna electrical connector | 19H |
| A2/30 | Navigation module | 4A |
| A2/30 | Navigation module | 12A |
| A2/30 | Navigation module | 19A |
| A2/30-1 | Cradle for navigation module | 1C |
| A2/98 | FM/TMC antenna splitter | 16L |
| A28/11 | Multifunction antenna | 21L |
| A28/11x1 | GPS multifunction antenna electrical connector | 21H |
| CAN A | Telematics CAN | 7K |
| Code 386 | Comfort telephony | 20E |
| N10/1 | Front SAM control unit with fuse and relay module | 4L |
| N10/1f16 | Fuse 16 | 3L |
| U12 | Valid for left-hand drive vehicles | 3D |
| U13 | Valid for right-hand drive vehicles | 3D |
| U302 | Valid without comfort telephony | 18E |
| W15/5 | Left front footwell ground point | 3F |
| W15/7 | Right front footwell ground point | 3E |
| X30/35 | Telematics CAN voltage distributor electrical connector | 7L |
