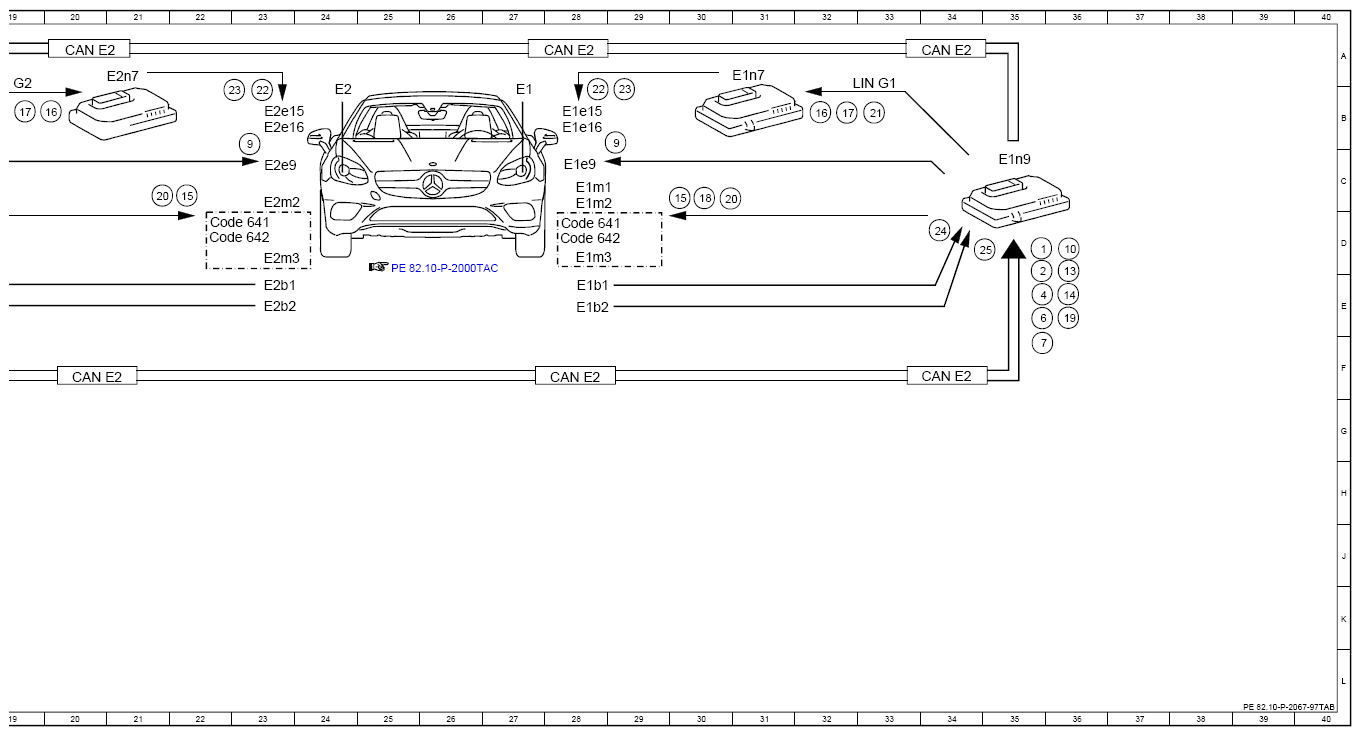

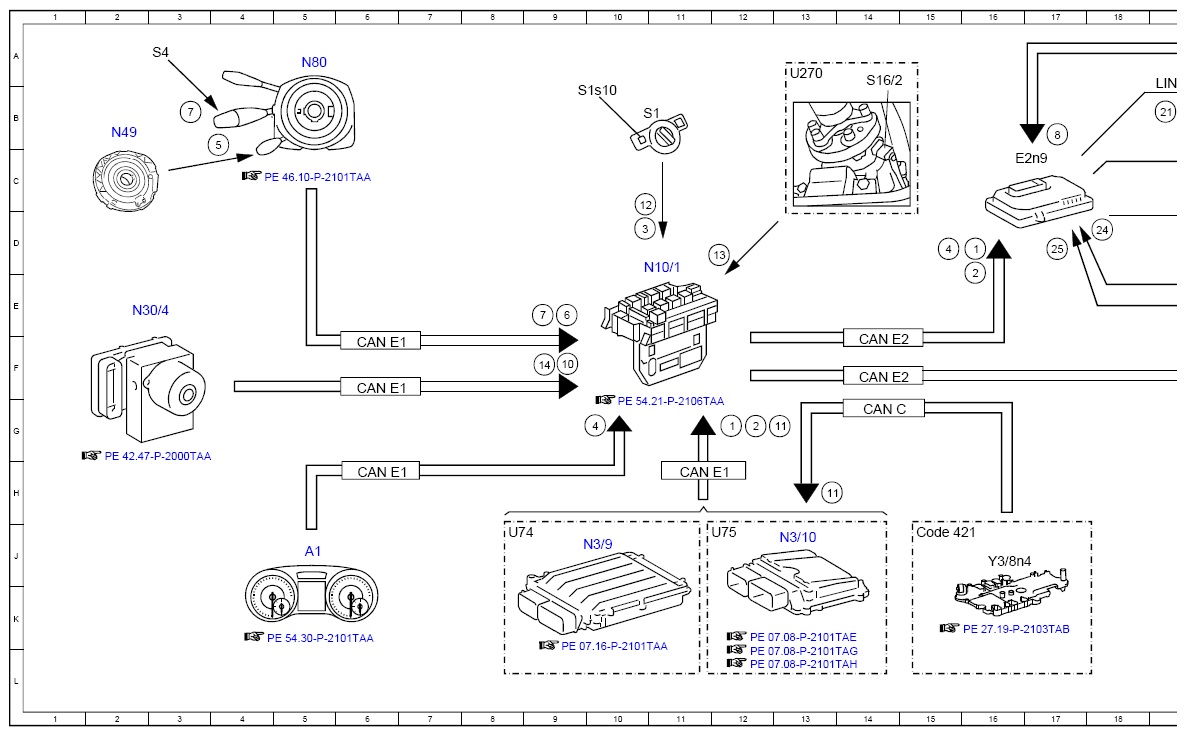

Function Schematic For Intelligent Light System - PE82.10-P-2067-97TAB
Model 172.4
as of model year 2017
with code 640 (High-performance LED)
Model 172.4
as of model year 2017
with code 641(Headlamps, LED, dynamic, left-side traffic)
Model 172.4
as of model year 2017
with code 642 (Headlamps, LED, dynamic, right-side traffic)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 12G |
| 1 | Engine running, signal | 16D |
| 1 | Engine running, signal | 35D |
| 10 | Wheel speed, signal | 9F |
| 10 | Wheel speed, signal | 36D |
| 11 | Gear range, status | 13G |
| 11 | Gear range, status | 13H |
| 12 | Front fog lamps button, status | 10C |
| 13 | Reverse gear, status | 36E |
| 13 | Reverse gear, status | 12D |
| 14 | Yaw rate, signal | 9F |
| 14 | Yaw rate, signal | 36E |
| 15 | Active curve illumination actuator motor, actuation | 22C |
| 15 | Active curve illumination actuator motor, actuation | 30C |
| 16 | Increase light output, request | 20B |
| 16 | Increase light output, request | 32B |
| 17 | Low beams, request | 19B |
| 17 | Low beams, request | 32B |
| 18 | Headlamp range adjustment actuator motor, actuation | 30C |
| 19 | Front fog lamps, actuation | 36E |
| 2 | Drivetrain operational, signal | 12G |
| 2 | Drivetrain operational, signal | 16E |
| 2 | Drivetrain operational, signal | 35E |
| 20 | Light distribution actuator motor, actuation | 21C |
| 20 | Light distribution actuator motor, actuation | 30C |
| 21 | High beams, request | 19B |
| 21 | High beams, request | 33B |
| 22 | Low beams, actuation | 23B |
| 22 | Low beams, actuation | 28B |
| 23 | High beams, actuation | 22B |
| 23 | High beams, actuation | 29B |
| 24 | Active curve lights position sensor, signal | 18D |
| 24 | Active curve lights position sensor, signal | 34D |
| 25 | Light distribution position sensor, signal | 17D |
| 25 | Light distribution position sensor, signal | 35D |
| 3 | Exterior lights switch, status | 10D |
| 4 | Intelligent Light System, status | 10G |
| 4 | Intelligent Light System, status | 15D |
| 4 | Intelligent Light System, status | 35E |
| 5 | Steering wheel angle sensor, signal | 4C |
| 6 | Steering wheel angle, signal | 9E |
| 6 | Steering wheel angle, signal | 35E |
| 7 | Combination switch, status | 3B |
| 7 | Combination switch, status | 9E |
| 7 | Combination switch, status | 35F |
| 8 | Synchronization, signal | 17B |
| 9 | Cornering illumination, actuation | 23B |
| 9 | Cornering illumination, actuation | 29B |
| A1 | Instrument cluster | 5J |
| CAN C | Drive train CAN | 14G |
| CAN E1 | Chassis CAN 1 | 6F |
| CAN E1 | Chassis CAN 1 | 6F |
| CAN E1 | Chassis CAN 1 | 6H |
| CAN E1 | Chassis CAN 1 | 11H |
| CAN E2 | Chassis CAN 2 | 14F |
| CAN E2 | Chassis CAN 2 | 14F |
| CAN E2 | Chassis CAN 2 | 20F |
| CAN E2 | Chassis CAN 2 | 28F |
| CAN E2 | Chassis CAN 2 | 20A |
| CAN E2 | Chassis CAN 2 | 34A |
| CAN E2 | Chassis CAN 2 | 28A |
| CAN E2 | Chassis CAN 2 | 34F |
| Code 421 | 9G-TRONIC | 15J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 22D |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 28D |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 22D |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 28D |
| E1 | Left front lamp unit | 27B |
| E1b1 | Left active curve illumination position sensor | 28E |
| E1b2 | Left light distribution position sensor | 28E |
| E1e15 | Left low beam (short range) | 28B |
| E1e16 | Left low beam (long range) and high beam | 28B |
| E1e9 | Left cornering illumination | 28C |
| E1m1 | Left headlamp range adjustment actuator motor | 28C |
| E1m2 | Left active curve illumination actuator motor | 28C |
| E1m3 | Left light distribution actuator motor | 28D |
| E1n7 | Actuation module for left front exterior lights LED | 31A |
| E1n9 | Left headlamp control unit | 35C |
| E2 | Right front lamp unit | 24B |
| E2b1 | Right active curve illumination position sensor | 23E |
| E2b2 | Right light distribution position sensor | 23E |
| E2e15 | Right low beam (short range) | 23B |
| E2e16 | Right low beam (long range) and high beam | 23B |
| E2e9 | Right cornering illumination | 23C |
| E2m2 | Right active curve illumination actuator motor | 23C |
| E2m3 | Right light distribution actuator motor | 23D |
| E2n7 | Actuation module for right front exterior lights LED | 21A |
| E2n9 | Right headlamp control unit | 16C |
| LIN G1 | Left headlamp LIN | 33B |
| LIN G2 | Right headlamp LIN | 19B |
| N10/1 | Front SAM control unit with fuse and relay module | 11D |
| N3/10 | ME-SFI [ME] control unit | 13J |
| N3/9 | CDI control unit | 9J |
| N30/4 | Electronic Stability Program control unit | 2E |
| N49 | Steering wheel angle sensor | 2B |
| N80 | Steering column module control unit | 5A |
| S1 | Exterior lights switch | 10B |
| S16/2 | Backup lamp switch | 14A |
| S1s10 | Rear fog light button | 9B |
| S4 | Combination switch | 3A |
| U270 | Valid for transmission 711 | 13A |
| U74 | Valid for diesel engines | 8J |
| U75 | Valid for gasoline engines | 11J |
| Y3/8n4 | Fully integrated transmission control control unit | 16J |
