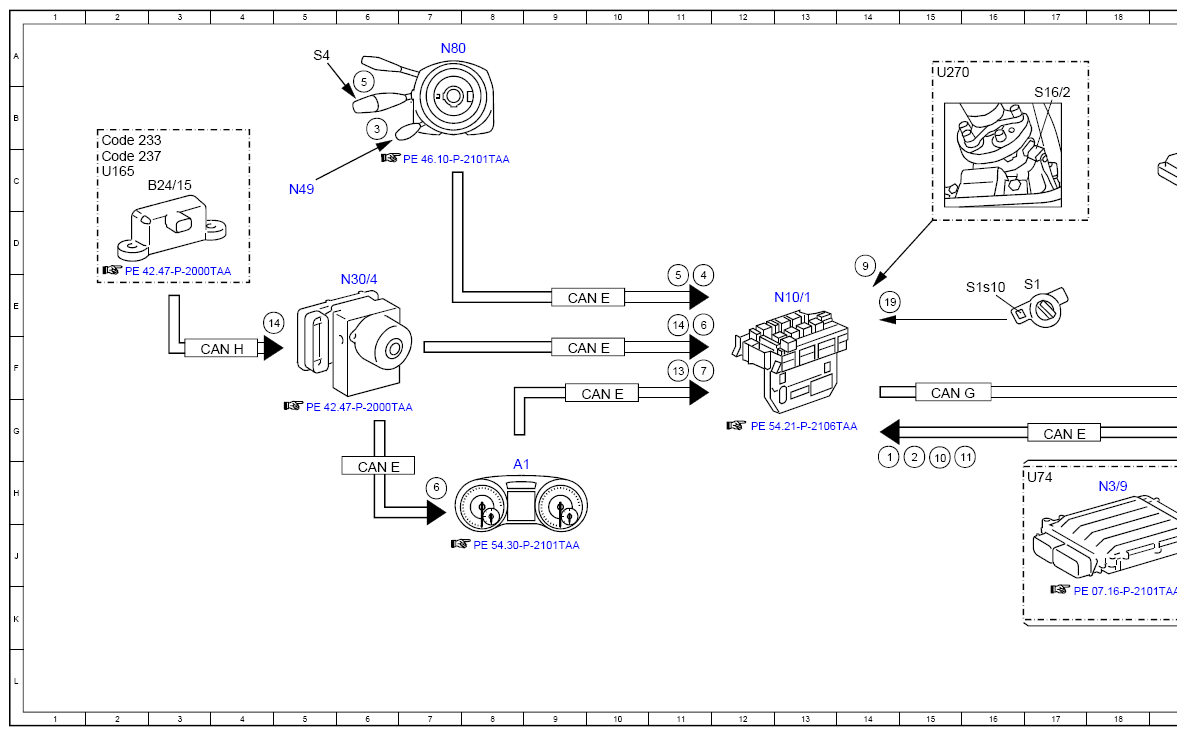

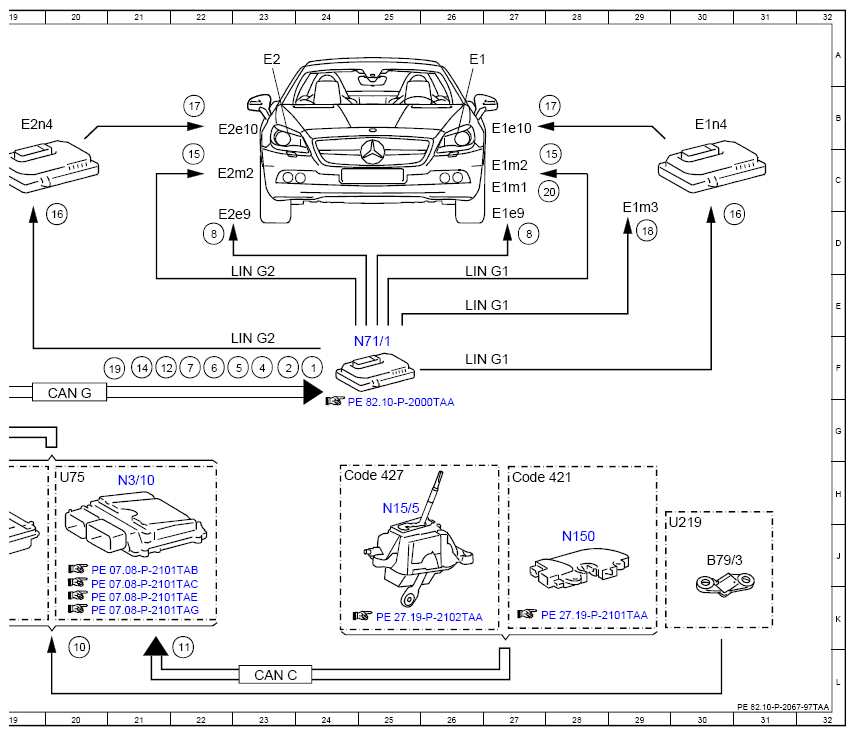

Function Schematic For Intelligent Light System - PE82.10-P-2067-97TAA
Model 172.4
up to model year 2017
with code 615 (Bi-xenon headlamps with active light function)
Model 172.4
up to model year 2017
with code 621 (Intelligent Light System (left-hand traffic))
Model 172.4
up to model year 2017
with code 622 (Intelligent Light System)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 14G |
| 1 | Engine running, signal | 24F |
| 10 | Manual transmission main shifter shaft position sensor, signal | 20L |
| 10 | Manual transmission main shifter shaft position sensor, signal | 15G |
| 11 | Selector lever position, status | 16G |
| 11 | Selector lever position, status | 22L |
| 12 | Reverse gear, status | 21F |
| 13 | Intelligent Light System, status | 11F |
| 14 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 4E |
| 14 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 11E |
| 14 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 21F |
| 15 | Active curve illumination actuator motor, actuation | 22C |
| 15 | Active curve illumination actuator motor, actuation | 28C |
| 16 | Increase light output, request | 20D |
| 16 | Increase light output, request | 30D |
| 17 | Xenon bulb with integrated ignition module, actuation | 22B |
| 17 | Xenon bulb with integrated ignition module, actuation | 28B |
| 18 | Light distribution actuator motor, actuation | 29D |
| 19 | Rear fog light button, status | 14E |
| 19 | Rear fog light button, status | 21F |
| 2 | Drivetrain operational, signal | 15G |
| 2 | Drivetrain operational, signal | 23F |
| 20 | Headlamp range adjustment actuator motor, actuation | 27C |
| 3 | Steering wheel angle sensor, signal | 6B |
| 4 | Steering wheel angle, signal | 11E |
| 4 | Steering wheel angle, signal | 23F |
| 5 | Combination switch, status | 6A |
| 5 | Combination switch, status | 11E |
| 5 | Combination switch, status | 23F |
| 6 | Wheel speed, signal | 11E |
| 6 | Wheel speed, signal | 7H |
| 6 | Wheel speed, signal | 22F |
| 7 | Vehicle speed, signal | 11F |
| 7 | Vehicle speed, signal | 22F |
| 8 | Cornering illumination, actuation | 27D |
| 8 | Cornering illumination, actuation | 22D |
| 9 | Backup lamp switch, status | 14D |
| A1 | Instrument cluster | 8H |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 2C |
| B79/3 | Manual transmission main shifter shaft position sensor | 30J |
| CAN C | Drive train CAN | 23L |
| CAN E | Chassis CAN | 9F |
| CAN E | Chassis CAN | 17G |
| CAN E | Chassis CAN | 9E |
| CAN E | Chassis CAN | 6H |
| CAN E | Chassis CAN | 10F |
| CAN G | Front end CAN | 15F |
| CAN G | Front end CAN | 20F |
| CAN H | Vehicle dynamics CAN | 4F |
| Code 233 | DISTRONIC PLUS | 2B |
| Code 237 | Active Blind Spot Assist | 2C |
| Code 421 | 9-speed automatic transmission | 27H |
| Code 427 | 7-speed automatic transmission | 24H |
| E1 | Left front lamp unit | 26A |
| E1e10 | Left xenon bulb with integrated ignition module | 27B |
| E1e9 | Left cornering illumination | 27D |
| E1m1 | Left headlamp range adjustment actuator motor | 27C |
| E1m2 | Left active curve illumination actuator motor | 27C |
| E1m3 | Left light distribution actuator motor | 29C |
| E1n4 | Left xenon light power supply module | 30B |
| E2 | Right front lamp unit | 23A |
| E2e10 | Right xenon bulb with integrated ignition module | 22B |
| E2e9 | Right cornering illumination | 22D |
| E2m2 | Right active curve illumination actuator motor | 22C |
| E2n4 | Right xenon light power supply module | 19B |
| LIN G1 | Left headlamp LIN | 26E |
| LIN G1 | Left headlamp LIN | 26E |
| LIN G1 | Left headlamp LIN | 26F |
| LIN G2 | Right headlamp LIN | 23E |
| LIN G2 | Right headlamp LIN | 23F |
| N10/1 | Front SAM control unit with fuse and relay module | 13E |
| N15/5 | Electronic selector lever module control unit | 25H |
| N150 | DIRECT SELECT INTERFACE | 28J |
| N3/10 | ME-SFI [ME] control unit | 21H |
| N3/9 | CDI control unit | 18H |
| N30/4 | Electronic Stability Program control unit | 6E |
| N49 | Steering wheel angle sensor | 5C |
| N71/1 | Headlamp control unit | 25F |
| N80 | Steering column module control unit | 7A |
| S1 | Exterior lights switch | 16E |
| S16/2 | Backup lamp switch | 17B |
| S1s10 | Rear fog light button | 16E |
| S4 | Combination switch | 5A |
| U165 | Valid for AMG | 2C |
| U219 | Valid for transmission 716.7 | 29J |
| U270 | Valid for transmission 711 | 15A |
| U74 | Valid for diesel engines | 17H |
| U75 | Valid for gasoline engines | 20H |
