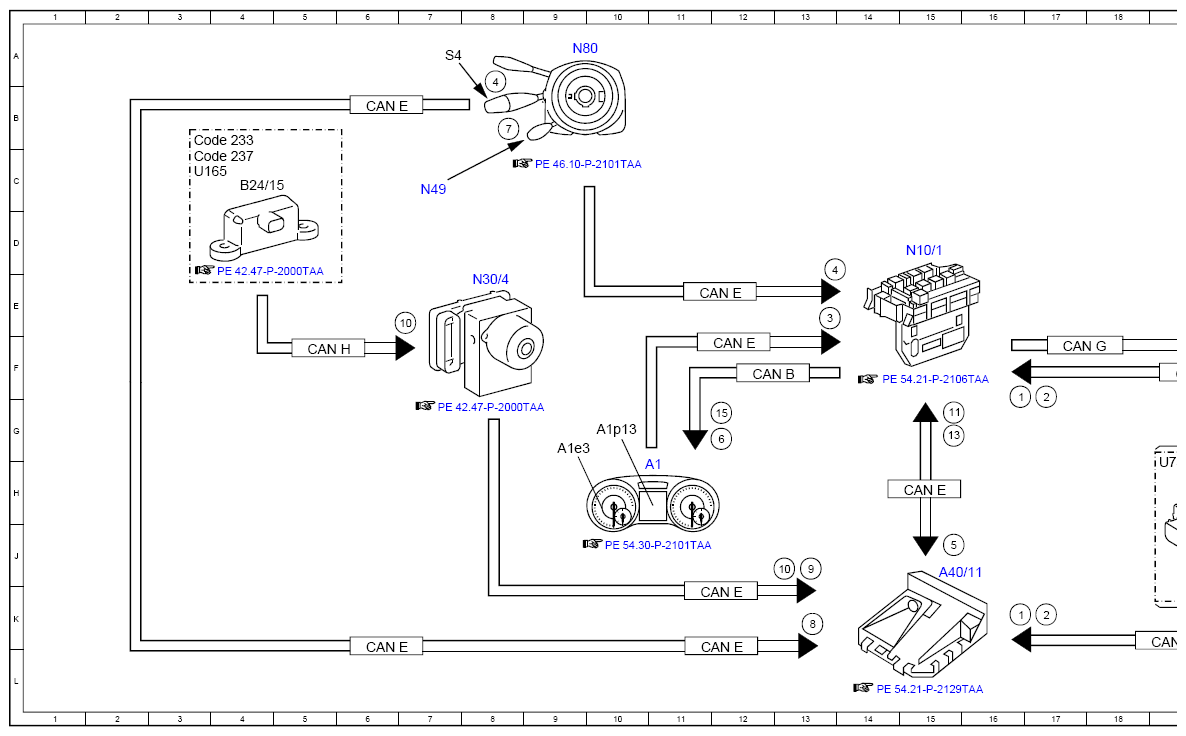

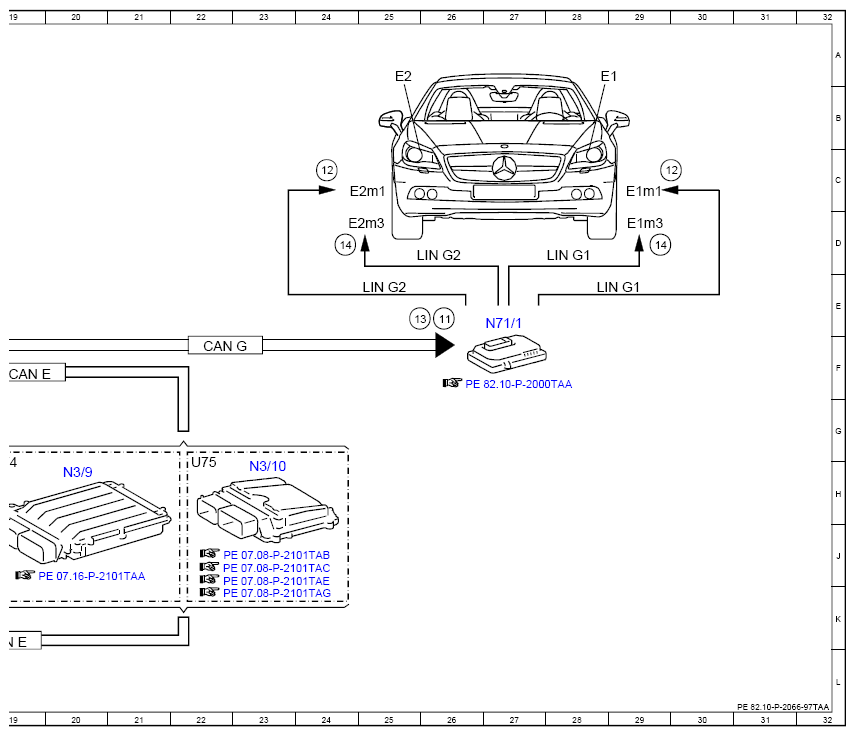

Function Schematic For Adaptive High Beam Assist - PE82.10-P-2066-97TAA
Model 172.4
up to model year 2017
with code 608 (Adaptive Highbeam Assist)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 16G |
| 1 | Engine running, signal | 17K |
| 10 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 7E |
| 10 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 13J |
| 11 | Optical headlamp range adjustment, request | 15G |
| 11 | Optical headlamp range adjustment, request | 26E |
| 12 | Headlamp range adjustment actuator motor, actuation | 24C |
| 12 | Headlamp range adjustment actuator motor, actuation | 29C |
| 13 | Automatic high beams, request | 15G |
| 13 | Automatic high beams, request | 25E |
| 14 | Light distribution actuator motor, actuation | 29D |
| 14 | Light distribution actuator motor, actuation | 24D |
| 15 | High beams, status | 12G |
| 2 | Drivetrain operational, signal | 17G |
| 2 | Drivetrain operational, signal | 17K |
| 3 | Adaptive High Beam Assist, request | 13E |
| 4 | Combination switch, status | 8A |
| 4 | Combination switch, status | 13D |
| 5 | Automatic high beams, enable | 15J |
| 6 | Instrument cluster message, request | 12G |
| 7 | Steering wheel angle sensor, signal | 8B |
| 8 | Steering wheel angle, signal | 13K |
| 9 | Wheel speed, signal | 13J |
| A1 | Instrument cluster | 10H |
| A1e3 | High beam indicator lamp | 9G |
| A1p13 | Multifunction display | 10G |
| A40/11 | Multifunction camera | 15J |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 4C |
| CAN B | Interior CAN | 12F |
| CAN E | Chassis CAN | 19F |
| CAN E | Chassis CAN | 12E |
| CAN E | Chassis CAN | 12F |
| CAN E | Chassis CAN | 6B |
| CAN E | Chassis CAN | 6L |
| CAN E | Chassis CAN | 19K |
| CAN E | Chassis CAN | 15H |
| CAN E | Chassis CAN | 12L |
| CAN E | Chassis CAN | 12K |
| CAN G | Front end CAN | 17F |
| CAN G | Front end CAN | 22F |
| CAN H | Vehicle dynamics CAN | 5F |
| Code 233 | DISTRONIC PLUS | 3B |
| Code 237 | Active Blind Spot Assist | 3C |
| E1 | Left front lamp unit | 28A |
| E1m1 | Left headlamp range adjustment actuator motor | 29C |
| E1m3 | Left light distribution actuator motor | 29D |
| E2 | Right front lamp unit | 25A |
| E2m1 | Right headlamp range adjustment actuator motor | 24C |
| E2m3 | Right light distribution actuator motor | 24D |
| LIN G1 | Left headlamp LIN | 28E |
| LIN G1 | Left headlamp LIN | 28D |
| LIN G2 | Right headlamp LIN | 25E |
| LIN G2 | Right headlamp LIN | 26D |
| N10/1 | Front SAM control unit with fuse and relay module | 15D |
| N3/10 | ME-SFI [ME] control unit | 23H |
| N3/9 | CDI control unit | 20H |
| N30/4 | Electronic Stability Program control unit | 8E |
| N49 | Steering wheel angle sensor | 7C |
| N71/1 | Headlamp control unit | 27E |
| N80 | Steering column module control unit | 9A |
| S4 | Combination switch | 7A |
| U165 | Valid for AMG | 3C |
| U74 | Valid for diesel engines | 19H |
| U75 | Valid for gasoline engines | 22H |
