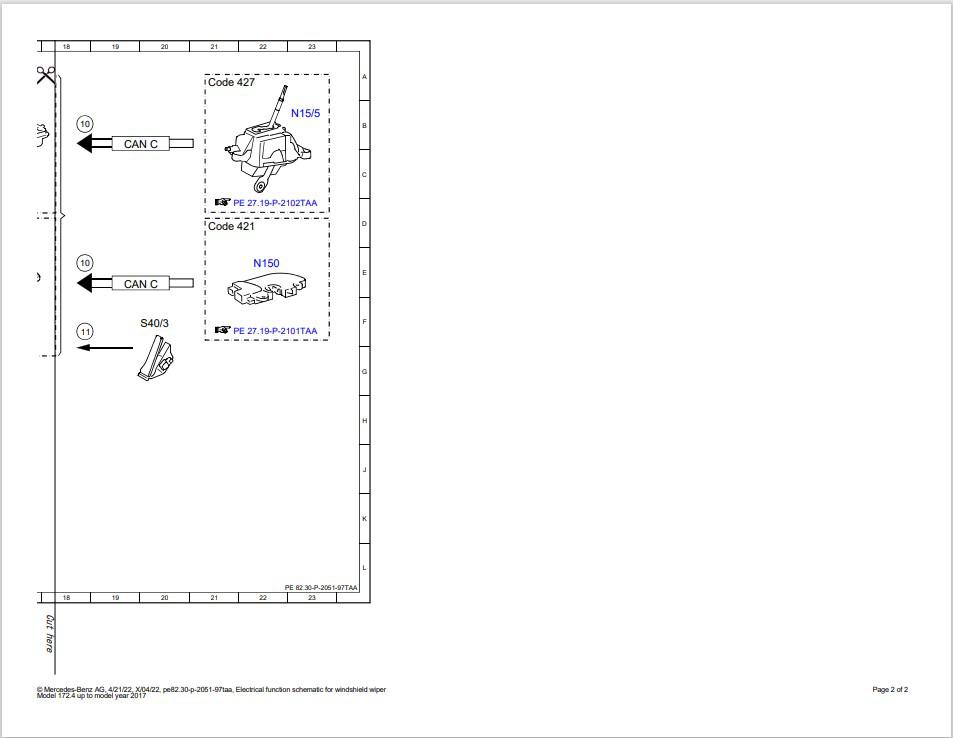

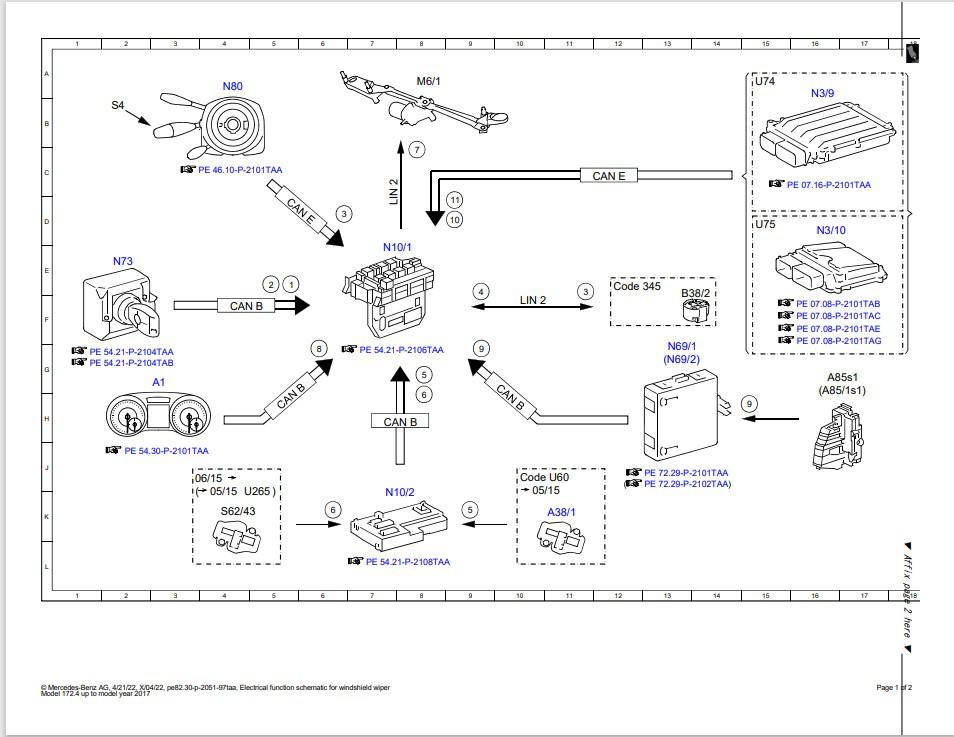

Electrical Function Schematic For Windshield Wiper - PE82.30-P-2051-97TAA
Model 172.4
up to model year 2017
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5F |
| 10 | Selector lever position, status | 9D |
| 10 | Selector lever position, status | 18B |
| 10 | Selector lever position, status | 18E |
| 11 | Clutch pedal switch, status | 9C |
| 11 | Clutch pedal switch, status | 18E |
| 2 | Circuit 50, status | 5E |
| 3 | Combination switch, status | 7D |
| 3 | Combination switch, status | 11F |
| 4 | Rain/light sensor, status | 9F |
| 5 | Engine hood anti-theft alarm system switch, status | 8G |
| 5 | Engine hood anti-theft alarm system switch, status | 9K |
| 6 | Engine hood contact switch, status | 6K |
| 6 | Engine hood contact switch, status | 8G |
| 7 | Wiper motor, actuation | 8C |
| 8 | Vehicle speed, signal | 6G |
| 9 | Door rotary tumbler switch, status | 9G |
| 9 | Door rotary tumbler switch, status | 15H |
| A1 | Instrument cluster | 3G |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 11K |
| A85/1s1 | Right door lock rotary tumbler switch | 16H |
| A85s1 | Left door lock rotary tumbler switch | 16G |
| B38/2 | Rain/light sensor | 13F |
| CAN B | Interior CAN | 4F |
| CAN B | Interior CAN | 7H |
| CAN B | Interior CAN | 10H |
| CAN B | Interior CAN | 5H |
| CAN C | Drive train CAN | 19E |
| CAN C | Drive train CAN | 19B |
| CAN E1 | Chassis CAN 1 | 5D |
| CAN E1 | Chassis CAN 1 | 12C |
| CAN E2 | Chassis CAN 2 | 5H |
| Code 345 | Windshield wiper with rain sensor | 12E |
| Code 421 | 9G-TRONIC | 21D |
| Code 427 | 7G-TRONIC | 21A |
| Code U60 | Pedestrian protection | 10J |
| LIN 2 | Wiper/inside rearview mirror LIN | 10F |
| LIN 2 | Wiper/inside rearview mirror LIN | 7C |
| M6/1 | Wiper motor | 8A |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N10/2 | Rear SAM control unit with fuse and relay module | 7K |
| N15/5 | Electronic selector lever module control unit | 23B |
| N150 | DIRECT SELECT INTERFACE | 22E |
| N3/10 | ME-SFI [ME] control unit | 16D |
| N3/9 | CDI control unit | 16A |
| N69/1 | Left door control unit | 13G |
| N69/2 | Right door control unit | 13G |
| N73 | Electronic ignition switch control unit | 2E |
| N80 | Steering column module control unit | 4A |
| S4 | Combination switch | 2B |
| S40/3 | Clutch pedal switch | 20F |
| S62/43 | Left engine hood contact switch | 4K |
| U265 | Not valid for pedestrian protection | 4K |
| U74 | Valid for diesel engines | 15A |
| U75 | Valid for gasoline engines | 15D |
