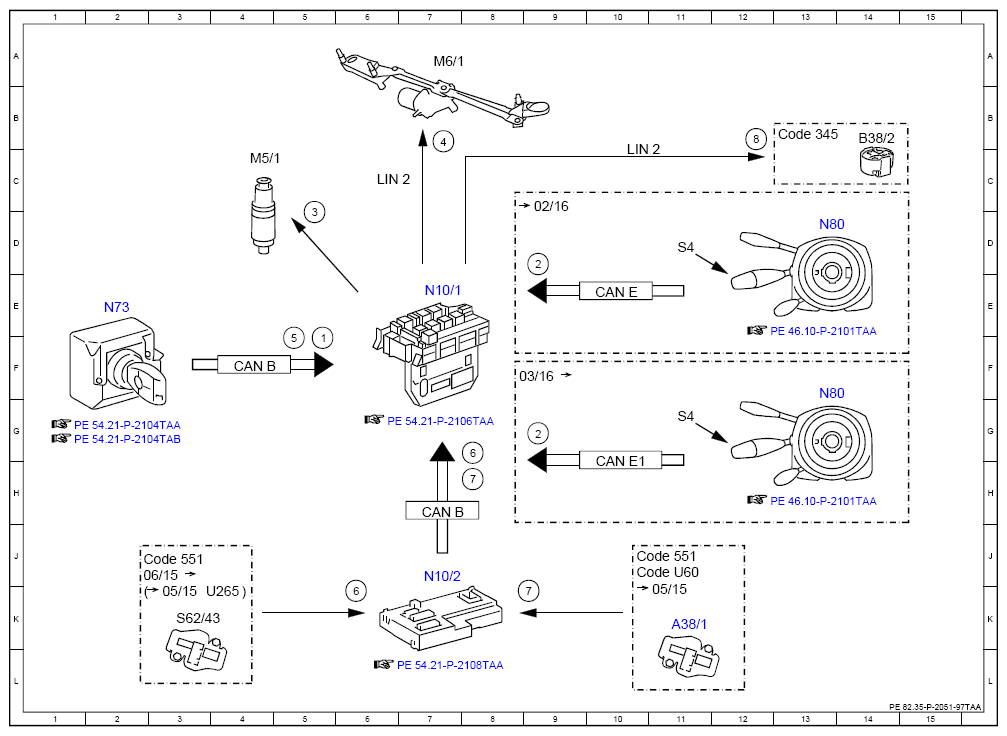

Electrical Function Schematic For Windshield Washer - PE82.35-P-2051-97TAA
Model 172.4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5F |
| 2 | Combination switch, status | 9D |
| 2 | Combination switch, status | 9G |
| 3 | Windshield washer system pump, actuation | 5D |
| 4 | Wiper motor, actuation | 7B |
| 5 | Circuit 50, status | 5F |
| 6 | Engine hood contact switch, status | 6K |
| 6 | Engine hood contact switch, status | 8G |
| 7 | Engine hood anti-theft alarm system switch, status | 9K |
| 7 | Engine hood anti-theft alarm system switch, status | 8H |
| 8 | Re-wipe, status | 12C |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 11K |
| B38/2 | Rain/light sensor | 14B |
| CAN B | Interior CAN | 4F |
| CAN B | Interior CAN | 7H |
| CAN E | Chassis CAN | 10E |
| CAN E1 | Chassis CAN 1 | 10H |
| Code 345 | Windshield wiper with rain sensor | 13B |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 2J |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 10J |
| Code U60 | Pedestrian protection | 10J |
| LIN 2 | Wiper/inside rearview mirror LIN | 6C |
| LIN 2 | Wiper/inside rearview mirror LIN | 10C |
| M5/1 | Windshield washer system pump | 4C |
| M6/1 | Wiper motor | 7A |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N10/2 | Rear SAM control unit with fuse and relay module | 7J |
| N73 | Electronic ignition switch control unit | 2E |
| N80 | Steering column module control unit | 13D |
| N80 | Steering column module control unit | 13F |
| S4 | Combination switch | 11D |
| S4 | Combination switch | 11G |
| S62/43 | Left engine hood contact switch | 3K |
| U265 | Not valid for pedestrian protection | 3K |
