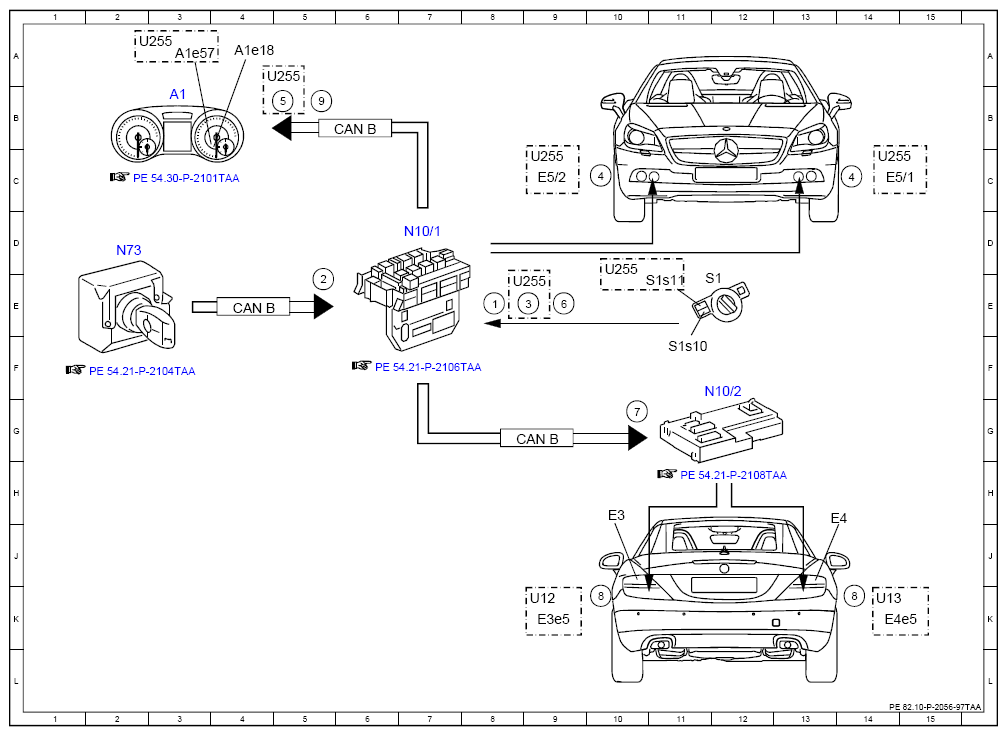

Electrical Function Schematic For Front Fog Light Actuation - PE82.10-P-2056-97TAA
Model 172.4
up to model year 2017
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 8E |
| 2 | Circuit 15, status | 5E |
| 3 | Front fog lamps button, status | 9E |
| 4 | Front fog lamps, actuation | 10C |
| 4 | Front fog lamps, actuation | 14C |
| 5 | Front fog lamps indicator lamp, actuation | 5B |
| 6 | Rear fog light button, status | 9E |
| 7 | Rear fog light, request | 10G |
| 8 | Rear fog light, actuation | 10K |
| 8 | Rear fog light, actuation | 14K |
| 9 | Rear fog light indicator light, actuation | 5B |
| A1 | Instrument cluster | 3B |
| A1e18 | Rear fog lamp indicator lamp | 4A |
| A1e57 | Front fog lamps indicator lamp | 3A |
| CAN B | Interior CAN | 4E |
| CAN B | Interior CAN | 9G |
| CAN B | Interior CAN | 6B |
| E3 | Left rear lamp unit | 10H |
| E3e5 | Left rear fog lamp | 9K |
| E4 | Right rear lamp unit | 13H |
| E4e5 | Right rear fog lamp | 14K |
| E5/1 | Left fog lamp | 14C |
| E5/2 | Right fog lamp | 9C |
| N10/1 | Front SAM control unit with fuse and relay module | 7D |
| N10/2 | Rear SAM control unit with fuse and relay module | 12F |
| N73 | Electronic ignition switch control unit | 2D |
| S1 | Exterior lights switch | 11E |
| S1s10 | Rear fog light button | 11F |
| S1s11 | Front fog lamp button | 10E |
| U12 | Valid for left-hand drive vehicles | 9K |
| U13 | Valid for right-hand drive vehicles | 14K |
| U255 | Valid for front fog lamps | 9C |
| U255 | Valid for front fog lamps | 14C |
| U255 | Valid for front fog lamps | 10E |
| U255 | Valid for front fog lamps | 2A |
| U255 | Valid for front fog lamps | 4A |
| U255 | Valid for front fog lamps | 8E |
