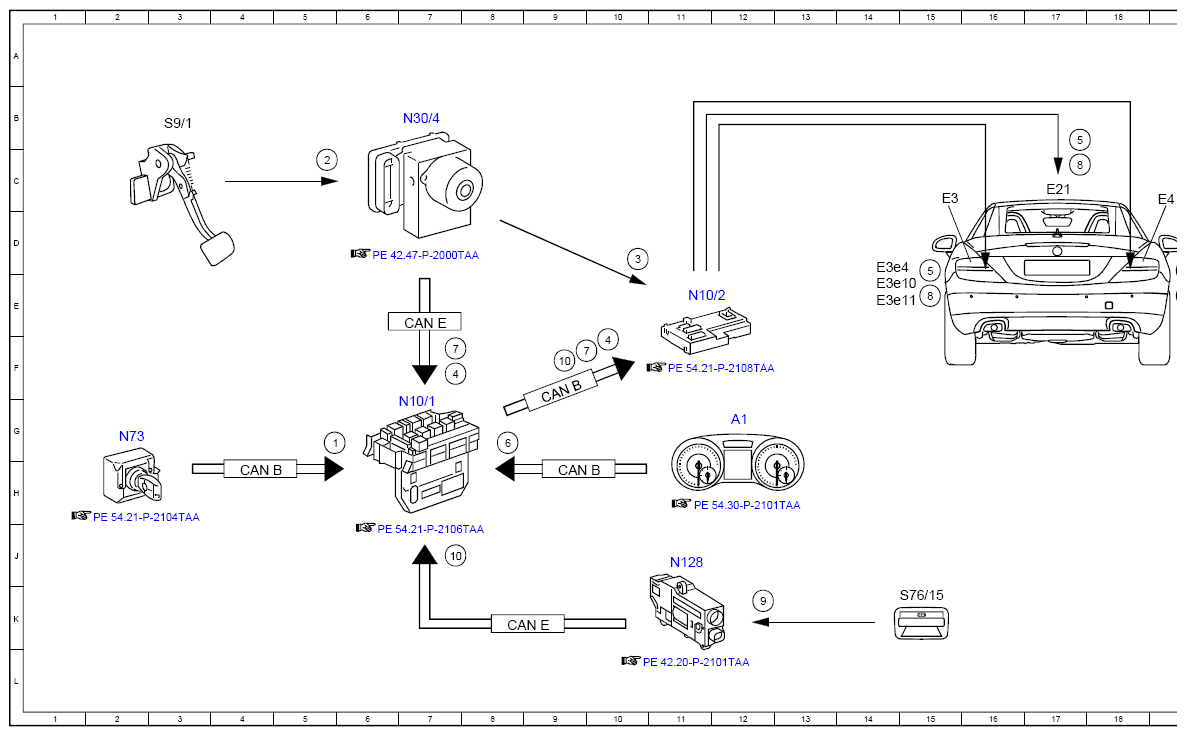

Electrical Function Schematic For Brake Light Actuation - PE82.10-P-2057-97TAA
Model 172.4
up to model year 2017
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5G |
| 10 | Brake lights, request | 7J |
| 10 | Brake lights, request | 9F |
| 2 | Brake light switch, status | 5C |
| 3 | Circuit 54, status | 10D |
| 4 | Service brake, status | 7F |
| 4 | Service brake, status | 10F |
| 5 | Brake lights, actuation | 15E |
| 5 | Brake lights, actuation | 19E |
| 5 | Brake lights, actuation | 17B |
| 6 | Vehicle speed, signal | 8G |
| 7 | Emergency stop, signal | 7F |
| 7 | Emergency stop, signal | 9F |
| 8 | Flashing brake lights, actuation | 17C |
| 8 | Flashing brake lights, actuation | 15E |
| 8 | Flashing brake lights, actuation | 19E |
| 9 | Electric parking brake switch, status | 12K |
| A1 | Instrument cluster | 12G |
| CAN B | Interior CAN | 9F |
| CAN B | Interior CAN | 4H |
| CAN B | Interior CAN | 9H |
| CAN E | Chassis CAN | 8K |
| CAN E | Chassis CAN | 7E |
| E21 | Center stop lamp | 17C |
| E3 | Left rear lamp unit | 15C |
| E3e10 | Inner left stop lamp and tail lamp | 14E |
| E3e11 | Outer left brake light and taillight | 14E |
| E3e4 | Left stop lamp | 14D |
| E4 | Right rear lamp unit | 19C |
| E4e10 | Inner right brake light and taillight | 19E |
| E4e11 | Outer right brake light and taillight | 19E |
| E4e4 | Right stop lamp | 19D |
| N10/1 | Front SAM control unit with fuse and relay module | 7G |
| N10/2 | Rear SAM control unit with fuse and relay module | 11E |
| N128 | Electric parking brake control unit | 11J |
| N30/4 | Electronic Stability Program control unit | 7B |
| N73 | Electronic ignition switch control unit | 2G |
| S76/15 | Electric parking brake switch | 15K |
| S9/1 | Stop lamp switch | 3B |
