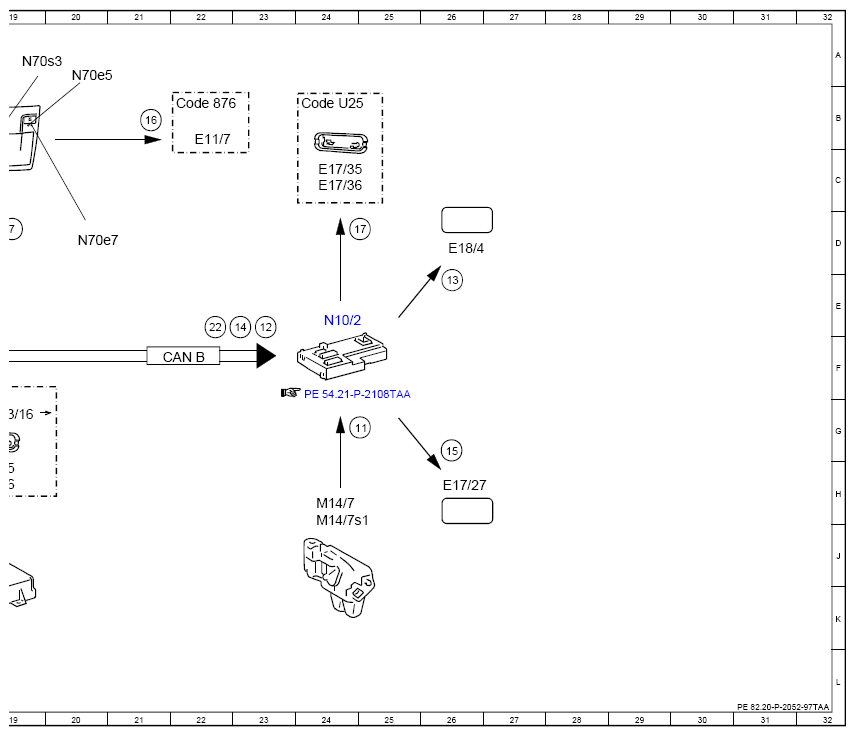

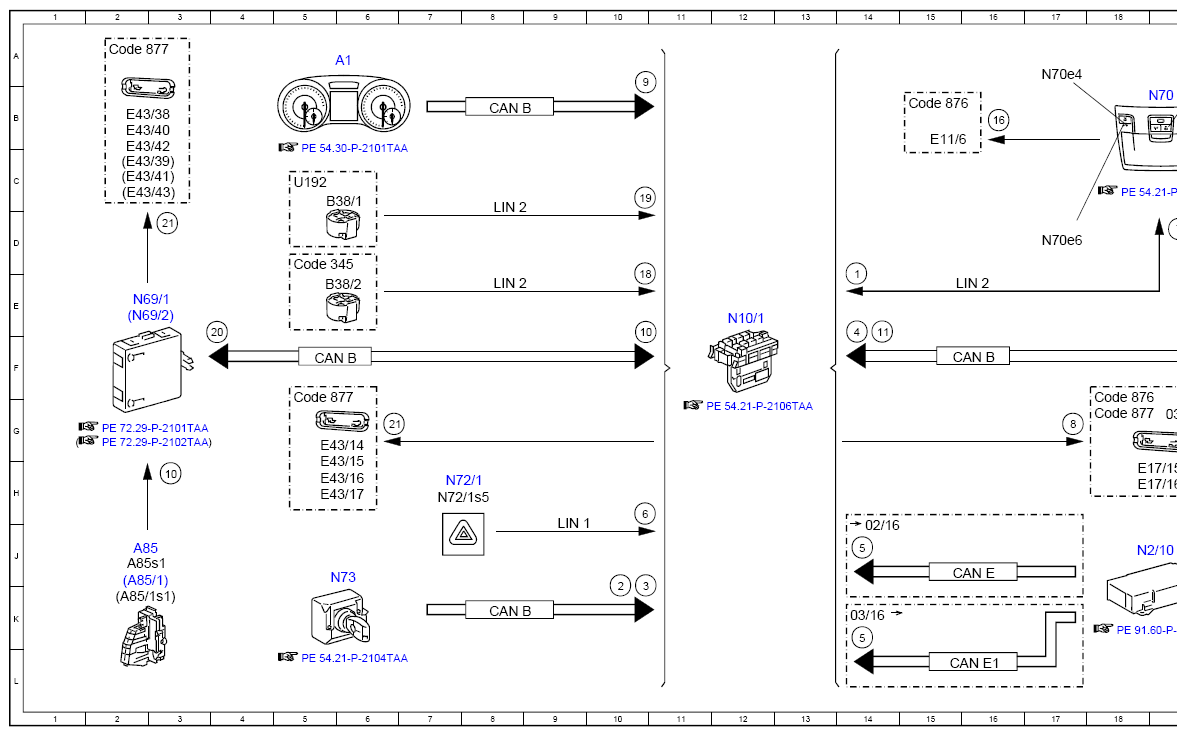

Automatic Interior Lights Control Electrical Function Schematic - PE82.20-P-2052-97TAA
Model 172.4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Automatic function switch, status | 14E |
| 10 | Door rotary tumbler switch, status | 3H |
| 10 | Door rotary tumbler switch, status | 10E |
| 11 | Trunk lid rotary tumbler switch, status | 24G |
| 11 | Trunk lid rotary tumbler switch, status | 14E |
| 12 | Trunk illumination, request | 23E |
| 13 | Trunk illumination, actuation | 26E |
| 14 | Trunk lid ambient illumination, request | 23E |
| 15 | Trunk lid ambient illumination, actuation | 26G |
| 16 | Exit and warning lamp, request | 16B |
| 16 | Exit and warning lamp, request | 21B |
| 17 | Illuminated door sill molding actuation | 24D |
| 18 | Rain/light sensor, status | 10E |
| 19 | Light sensor, status | 10C |
| 2 | Circuit 15, status | 10K |
| 20 | Ambience illumination, request | 4E |
| 21 | Ambience illumination, actuation | 6G |
| 21 | Ambience illumination, actuation | 3D |
| 22 | Illuminated door sill molding, request | 22E |
| 3 | Central locking (CL [ZV]), status | 10K |
| 4 | ATA [EDW] alarm, status | 14E |
| 5 | Crash, signal | 14L |
| 5 | Crash, signal | 14K |
| 6 | Hazard warning system switch, status | 10H |
| 7 | Interior lamp, actuation | 19D |
| 8 | Footwell lamp, actuation | 17G |
| 9 | OFF delay time, status | 10B |
| A1 | Instrument cluster | 6A |
| A85 | Left door lock | 2J |
| A85/1 | Right door lock | 2J |
| A85/1s1 | Right door lock rotary tumbler switch | 2K |
| A85s1 | Left door lock rotary tumbler switch | 2J |
| B38/1 | Light sensor | 5C |
| B38/2 | Rain/light sensor | 5E |
| CAN B | Interior CAN | 8K |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 8B |
| CAN B | Interior CAN | 16F |
| CAN B | Interior CAN | 22F |
| CAN E | Chassis CAN | 16J |
| CAN E1 | Chassis CAN 1 | 16L |
| Code 345 | Windshield wiper with rain sensor | 5D |
| Code 876 | Interior lights package | 18G |
| Code 876 | Interior lights package | 15B |
| Code 876 | Interior lights package | 22B |
| Code 877 | Ambiance illumination | 5G |
| Code 877 | Ambiance illumination | 2A |
| Code 877 | Ambiance illumination | 18G |
| Code U25 | Illuminated door sills | 24B |
| E11/6 | Left A-pillar exit lamp | 15B |
| E11/7 | Right A-pillar exit lamp | 22B |
| E17/15 | Right footwell lamp | 18H |
| E17/16 | Left footwell lamp | 18H |
| E17/27 | Trunk lid warning/ambient lamp | 26H |
| E17/35 | Left illuminated door sill molding | 24C |
| E17/36 | Right illuminated door sill molding | 24C |
| E18/4 | Right luggage compartment lamp | 26D |
| E43/14 | Left front center console ambiance illumination | 5G |
| E43/15 | Left rear center console ambiance illumination | 5H |
| E43/16 | Right front center console ambiance illumination | 5H |
| E43/17 | Right rear center console ambiance illumination | 5H |
| E43/38 | Left door handle ambiance illumination | 2B |
| E43/39 | Right door handle ambiance illumination | 2C |
| E43/40 | Front trim piece ambiance illumination, left door | 2B |
| E43/41 | Front trim piece ambiance illumination, right door | 2C |
| E43/42 | Rear trim piece ambiance illumination, left door | 2C |
| E43/43 | Rear trim piece ambiance illumination, right door | 2C |
| LIN 1 | Instrument panel LIN | 9J |
| LIN 2 | Wiper/inside rearview mirror LIN | 8D |
| LIN 2 | Wiper/inside rearview mirror LIN | 8E |
| LIN 2 | Wiper/inside rearview mirror LIN | 16E |
| M14/7 | Trunk lid central locking motor | 24H |
| M14/7s1 | Trunk lid rotary tumbler switch | 24J |
| N10/1 | Front SAM control unit with fuse and relay module | 12E |
| N10/2 | Rear SAM control unit with fuse and relay module | 24E |
| N2/10 | Supplemental restraint system control unit | 18J |
| N69/1 | Left door control unit | 2E |
| N69/2 | Right door control unit | 2E |
| N70 | Overhead control panel control unit | 19B |
| N70e4 | Left interior/reading lamp | 17A |
| N70e5 | Right interior/reading lamp | 20A |
| N70e6 | Left mounting console incident illumination | 17D |
| N70e7 | Right mounting console incident illumination | 20D |
| N70s3 | Interior lamp automatic function switch | 19A |
| N72/1 | Upper control panel control unit | 7H |
| N72/1s5 | Hazard warning system button | 7H |
| N73 | Electronic ignition switch control unit | 6J |
| U192 | Valid for light sensor | 5C |
| Page | 775 of | 1516 |
