Remove/Install Multifunction Antenna - AR82.70-P-8951W

Model 172.4

with code 359 (TELE AID emergency call system)

Model 172.4

with code 360 (HERMES UMTS)

Model 172.4

with code 362 (HERMES communications module LTE)

Model 172.4

with code 386 (Comfort telephony)

Model 172.4

with code 508 (Navigation box preinstallation)

Model 172.4

with code 509 (Navigation box)

Model 172.4

with code 512 (COMAND® APS with DVD changer)

Model 172.4

with code 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)

Model 172.4

with code 527 (COMAND® APS with single DVD drive (with navigation))

Model 172.4

with code 531 (COMAND® APS)

Model 172.4

with code 536 (SIRIUS satellite radio complete system)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

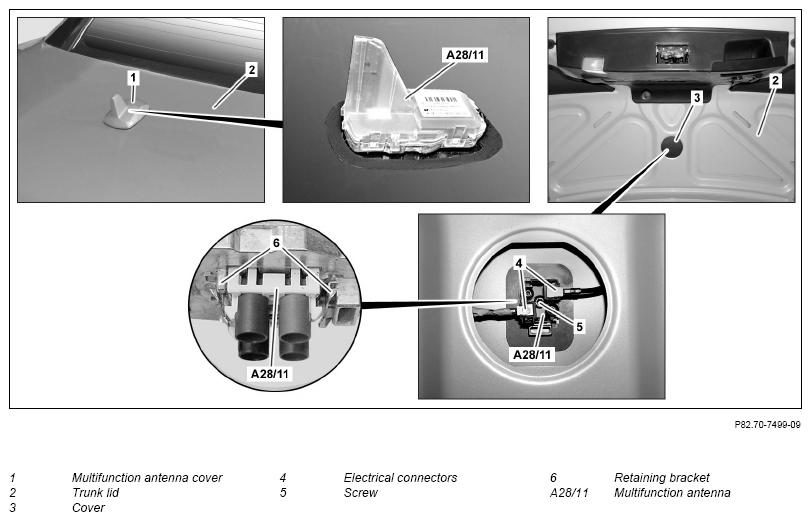

1	Remove multifunction antenna cover (1)		AR82.70-P-8952EW
2	Open trunk lid (2)
3	Remove cover (3)
4	Disconnect electrical connectors (4) from multifunction antenna (A28/11)	The number of electrical connectors (4) varies depending on the vehicle equipment.
5	Remove screw/bolt (5) until retaining brackets (6) are released	Screw/bolt (5) remains at multifunction antenna (A28/11).
		Screw/bolt, antenna base to trunk lid	*BA82.62-P-1002-01D
6	Remove multifunction antenna (A28/11) upward from trunk lid (2)
7	Install in the reverse order

Number	Designation		Model 172
BA82.62-P-1002-01D	Screw/bolt, antenna base to trunk lid	Nm	3
