Remove/Install Front Door Speakers/Tweeters In Mirror Triangle - AR82.62-P-7850W

Model 172

Shown on left door

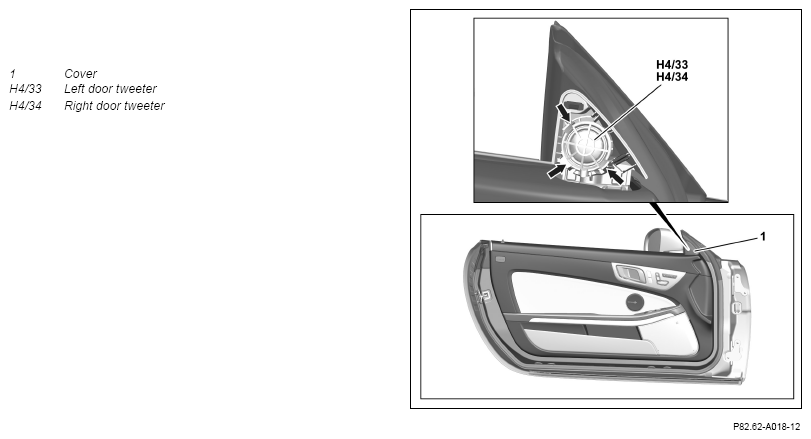

Fig 1: Front Door Speakers/Tweeters Components Location - Model 172.4 (Shown On Left Door)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip cover (1).
2	Unclip door tweeter (H4/33, H4/34) (arrows) and remove.
3	Disconnect electrical connector at door tweeter (H4/33, H4/34).
4	Install in the reverse order
