Remove/Install Backup Antenna For Tele-Aid Emergency Call System - AR82.95-P-0004W

MODEL 172.4

with CODE (494) USA version

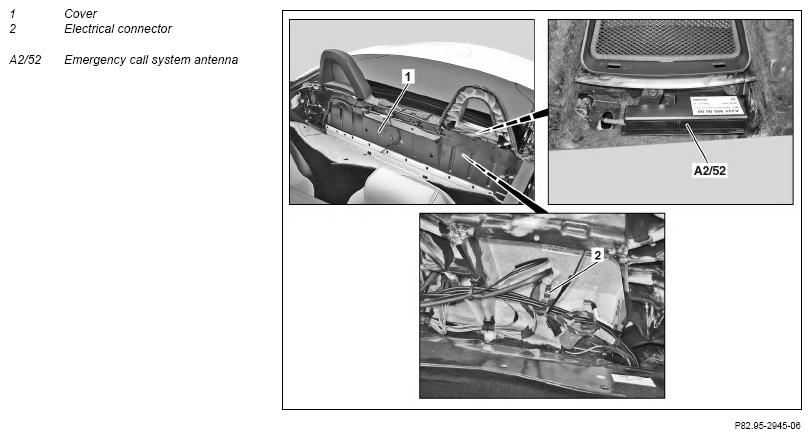

Fig 1: Antenna For Tele-Aid Emergency Call System Components Location - Model 172.4 With Code 494

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove transmitter key from EZS control unit Information on preventing damage to electronic components due to electrostatic discharge	On vehicles with code (889) Keyless-Go: Press Keyless-Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
			AH54.00-P-0001-01A
2	Remove cover (1)
3	Disconnect electrical connector (2)
4	Remove screws/bolts from emergency call system antenna (A2/52)
5	Remove emergency call system antenna (A2/52)
6	Install in the reverse order
