Retrofit Navigation Box Antenna Line - AN82.85-P-0020-05W

MODEL 172.4##

(except 172.475) 1#

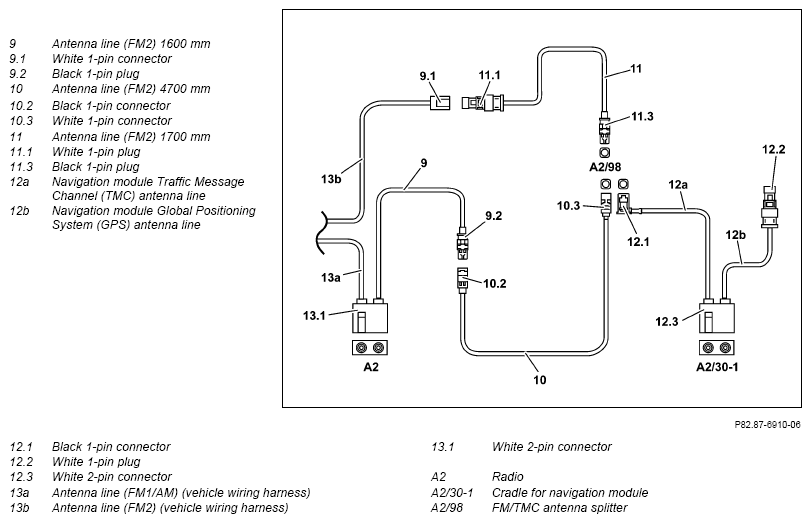

Antenna line connection diagram

G13848441Courtesy of MERCEDES-BENZ USA

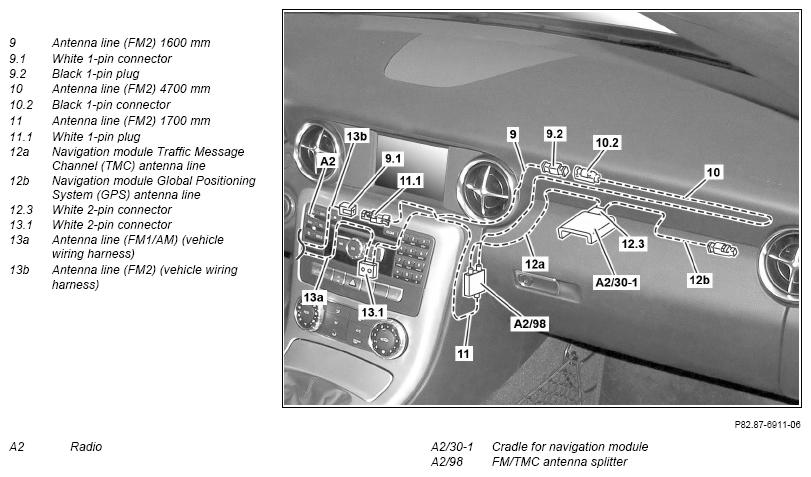

Routing diagram for antenna line

G13848442Courtesy of MERCEDES-BENZ USA
  1. Connect black 1-pin connector (12.1) of navigation module Global Positioning System (GPS) antenna line (12b) to FM/TMC antenna splitter (A2/98).
  2. Connect white 1-pin plug connector (12.2) of navigation module GPS antenna line (12b) to white 1-pin connector (6.2) of antenna line for GPS antenna (6).
  3. Make loops of the navigation module GPS antenna line (12b), as shown, and fasten in place using cable ties (14) on the vehicle wiring harness.

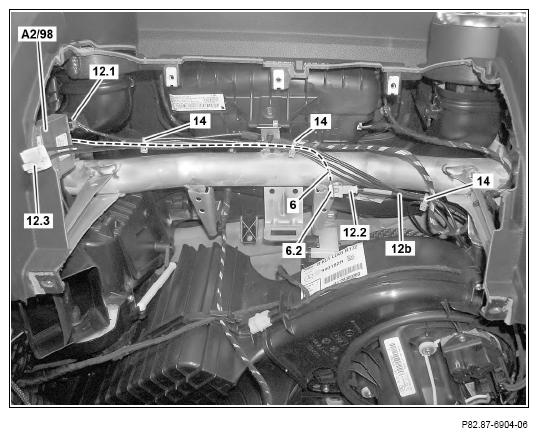

    G13848443Courtesy of MERCEDES-BENZ USA
  4. Remove on-board antenna line (FM2) (13b) from contact cavity "1" of white 2-pin connector (13.1).
  5. Install the angled connector of the 1600 mm long antenna line (FM2) (9) into contact cavity "1" of the white 2-pin connector (13.1).
  6. Route the 1600 mm long antenna line (FM2) (9), as shown, along the vehicle wiring harness to the installation location of the FM/TMC antenna splitter.

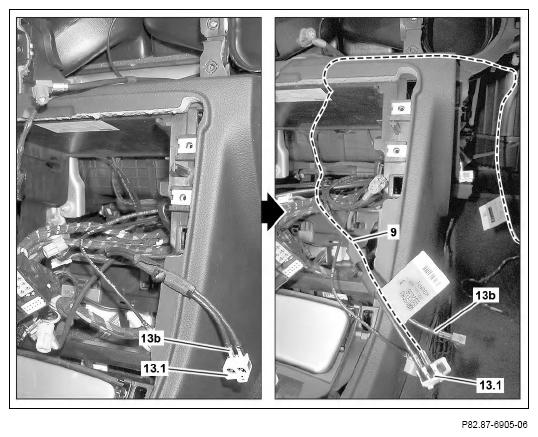

    G13848444Courtesy of MERCEDES-BENZ USA
  7. Connect black 1-pin connector (10.2) of 4700 mm long antenna line (FM2) (10) to black 1-pin plug connector (9.2) of 1600 mm long antenna line (FM2) (9).
  8. Place the 4700 mm long antenna line (FM2) (10) and 1600 mm long antenna line (FM2) (9) that are connected to each other, as shown, in loops and fasten using cable ties (14) to the vehicle wiring harness.
  9. Connect white 1-pin connector (10.3) of 4700 mm long antenna line (FM2) (10) to FM/TMC antenna splitter (A2/98).

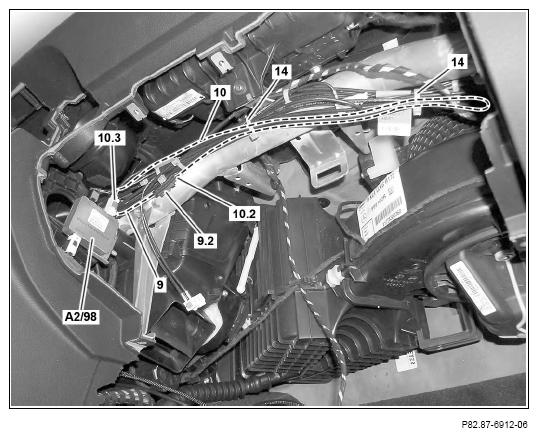

    G13848445Courtesy of MERCEDES-BENZ USA
  10. Fit the white carrying element previously removed from the 1600 mm long antenna line (FM2) (9) to the vehicle's on-board antenna line (FM2) (13b).

    IMPORTANT The antenna line (FM2) (13b) was installed in the white 2-pin connector (13.1).

  11. Connect white 1-pin plug connector (11.1) of 1700 mm long antenna line (FM2) (11) to white 1-pin connector (9.1) of antenna line (FM2) (13b)

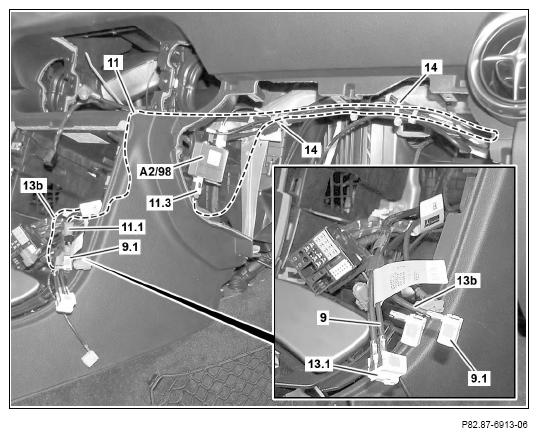

    G13848446Courtesy of MERCEDES-BENZ USA
  12. Route antenna line (FM2) (11), as shown, along vehicle wiring harness to installation location of FM/TMC antenna splitter (A2/98) and fasten in place using cable tie (14).
  13. Connect black 1-pin plug connector (11.3) to FM/TMC antenna splitter (A2/98).
