Retrofit Antenna Signal Splitter - AN82.85-P-0020-03W

MODEL 172.4##

(except 172.475) 1#

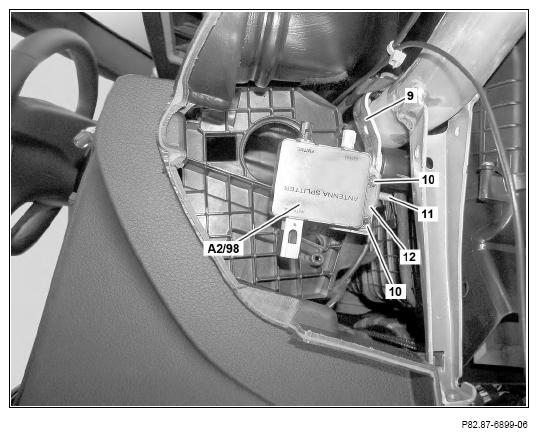

1. Fasten bracket (12) using bolt (11), as shown, to carrier (9).
2. Tighten FM/TMC antenna splitter (A2/98) on bracket (12) using bolts (10).

Courtesy of MERCEDES-BENZ USA
