Windshield Wiper System, Function - GF82.30-P-0001RD
Model 172.4

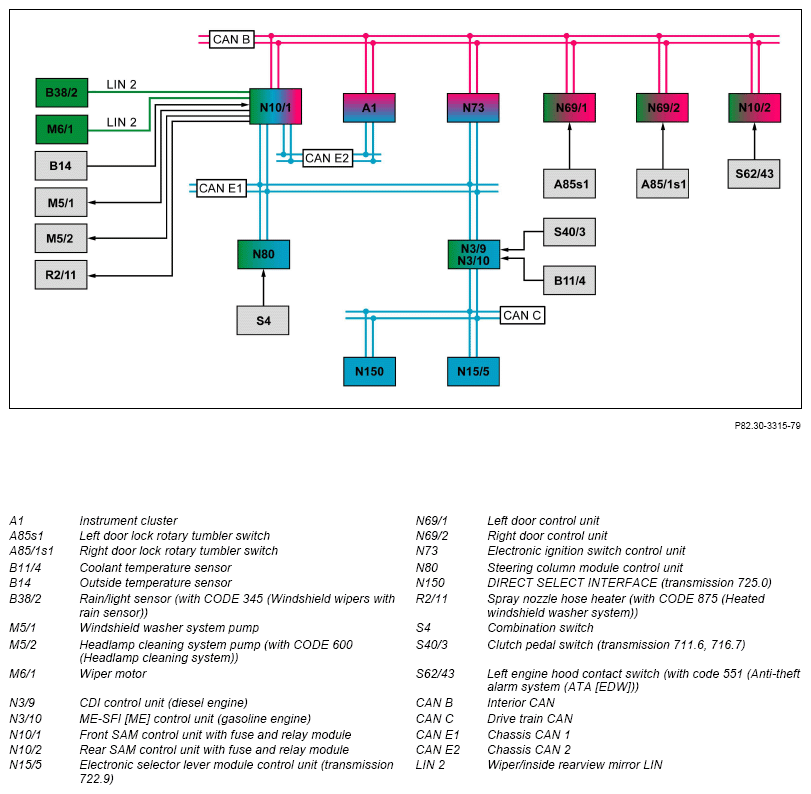

Shown on model 172.4 as of 01.03.2016

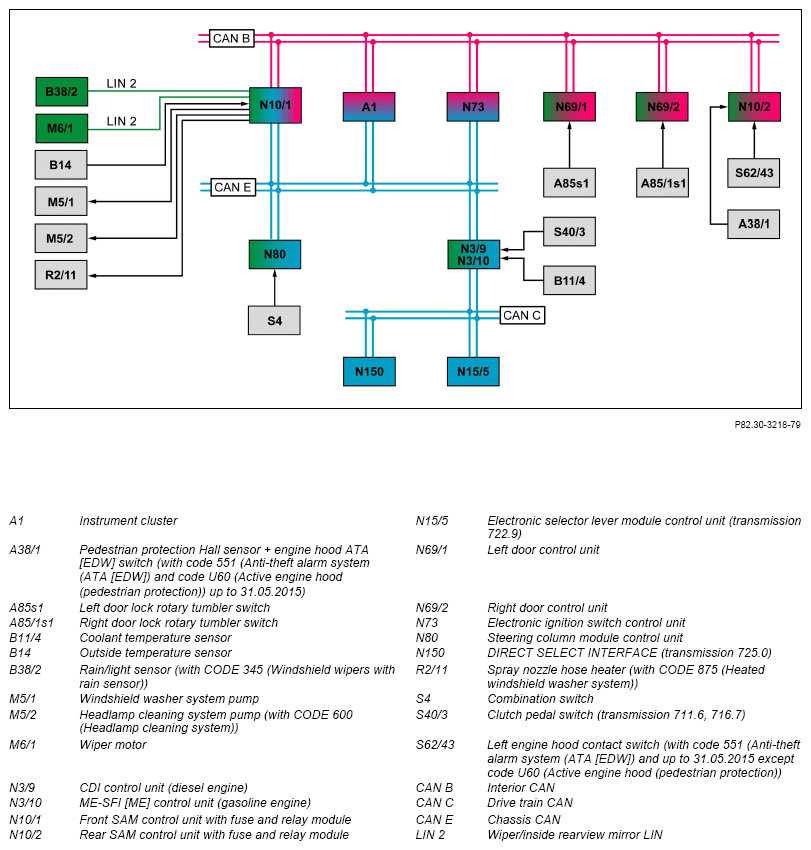

Shown on model 172.4 up to 29.02.2016
Windshield wiper system, general
The windshield wiper system actuates the windshield wipe and wash function.
The windshield wiper system comprises the following subfunctions, which are described in separate documents:
- Windshield wiper, function
- Wiper start suppression function
- Wiper stop, function (with CODE 551 (Anti-theft alarm system (ATA [EDW]))
- Automatic speed reduction of windshield wiper system, function (except CODE 494 (USA version))
- Windshield washer, function
- Spray nozzle hose heater, function
- Headlamp cleaning system function (with CODE 600 (Headlamp cleaning system))
| Windshield wiper, function | GF82.30-P-3004RD | ||
| Windshield washer, function | GF82.35-P-3002RD | ||
| Spray nozzle hose heater function | Model 172.4 with code 875 (Heated windshield washer system) | GF82.35-P-3009RD | |
| Headlamp cleaning system, function | Model 172.4 with code 600 (Headlamp cleaning system) | GF82.15-P-3000RD |
