Headlamp Control Unit, Basic Function I - GF82.10-P-9890A

Model all (CAR)

with code 316 (Digital LED headlamps, SAE right-hand traffic)

with code 317 (Digital LED headlamps, left-hand traffic)

with code 318 (Digital LED headlamps, right-hand traffic)

with code 631 (Static LED headlamps, left-hand traffic)

with code 632 (Headlamps, LED, static, right-side traffic)

with code 640 (SAE dynamic LED headlamps, right-hand traffic)

with code 641 (Dynamic LED headlamps, left-hand traffic)

with code 642 (Dynamic LED headlamps, right-hand traffic)

Overview

This document contains the following information:

• General
• Function
  • Static LED headlamp
  • Dynamic/digital LED headlamps

Courtesy of MERCEDES-BENZ USA

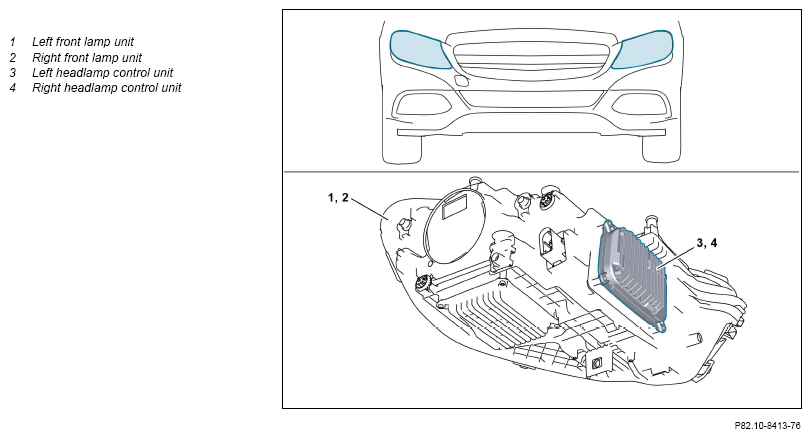

General

The headlamp control units are connected to the vehicle's network architecture It operates in master-slave combination As the master the left headlamp control unit synchronizes the right headlamp control unit.

Function

Static LED headlamps

The static LED headlamps are equipped with LED matrices which consist of a multi-chamber reflector system with 4 individual reflectors for low beam and 4 for high beam.

The headlamp control units actuate the following functions:

• Daytime running lamps
• Position lights
• Turn signal lamp
• High beams and headlamp flasher output
• Automatic headlamp range control (HRA) (left headlamp control unit only) (except Canada version and USA version with static LED headlamps right-hand traffic)
• Thermal management (temperature monitoring)

  To implement the exterior lighting functions, the headlamp control units process, among others, the following information:

• Variant coding
• Circuit status
• Engine running signal (vehicles with combustion engine).
• Drivetrain operational signal
• Vehicle level
• Temperatures in the front lamp units
• Light function request

  The headlamp control units process these input factors and send, among others, the following information:

• Status of light functions
• Show request for display messages.

Dynamic/digital LED headlamps

The dynamic LED headlamps are equipped with LED matrices. These are equipped with several LEDs that can be actuated independently of one other. Depending on which LEDs are actuated, the shape and, depending on the version of the LED headlamps, the intensity of the light cone can be influenced.

As of market launch model 247, the headlamp control units assume the control of all light functions.

The headlamp control units actuate the following functions:

• Daytime running lamps
• Position lights
• Turn signal lamp
• High beams and headlamp flasher output
• Automatic headlamp range control (HRA) (left headlamp control unit only) (except Canada version and USA version with static LED headlamps right-hand traffic)
• Variable light distribution
  • Town light
  • Country light and curve illumination
  • Motorway light
  • Enhanced fog light function (depending on equipment)
• Cornering illumination
• Thermal management (temperature monitoring)

  On model 167 177 the headlamp control units have supported variable light distribution via the headlamp range adjustment As of market launch model 247 the headlamp control units completely control variable light distribution.

  To implement the exterior lighting functions, the headlamp control units process, among others, the following information:

• Variant coding
• Circuit status
• Engine running signal (vehicles with combustion engine).
• Drivetrain operational signal
• Vehicle level
• Temperatures in the front lamp units
• Light function request
• Freeze frame data
• Object information for automatic high beam (as of market launch of model 247)

  The headlamp control units process these input factors and send, among others, the following information:

• Requests for high beam light distribution
• Light distribution status
• Status of light functions
• Show request for display messages.
