Remove/Install Mercedes Star - AR88.40-P-4050W

MODEL 172.4

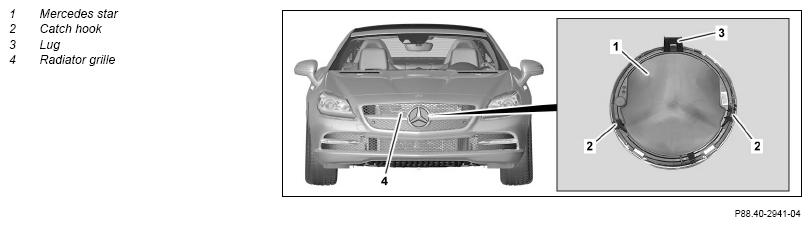

Fig 1: Mercedes Star Components Location - Model 172.4

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip Mercedes star (1) on catch lugs (2) from radiator paneling (4) with long wedge and remove	Insert Mercedes star (1) at top into radiator grille with lugs (3) and clip in with catch hooks (2).
		Long wedge	Fig 2
2	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
