Fuel Filler Cap Central Locking System Actuator, Basic Function - GF80.20-P-2015A
Model all (CAR)

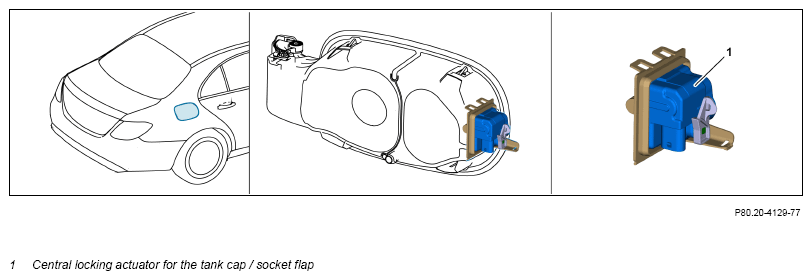

Location
The central locking actuator for the tank cap/socket flap is located on the tank filler or socket recess on the lock side of the tank or socket flap.
Structure
The following components are installed in the fuel filler cap/socket flap central locking system actuator:
- Microswitch
- Actuator motor
- Catch bolt
Task
The fuel filler cap/socket flap central locking system has the following tasks:
- Detection of the opening request via the status of the microswitch when the tank or socket flap is pressed
- Releasing and locking the fuel filler flap or socket flap by actuating the actuator motor
