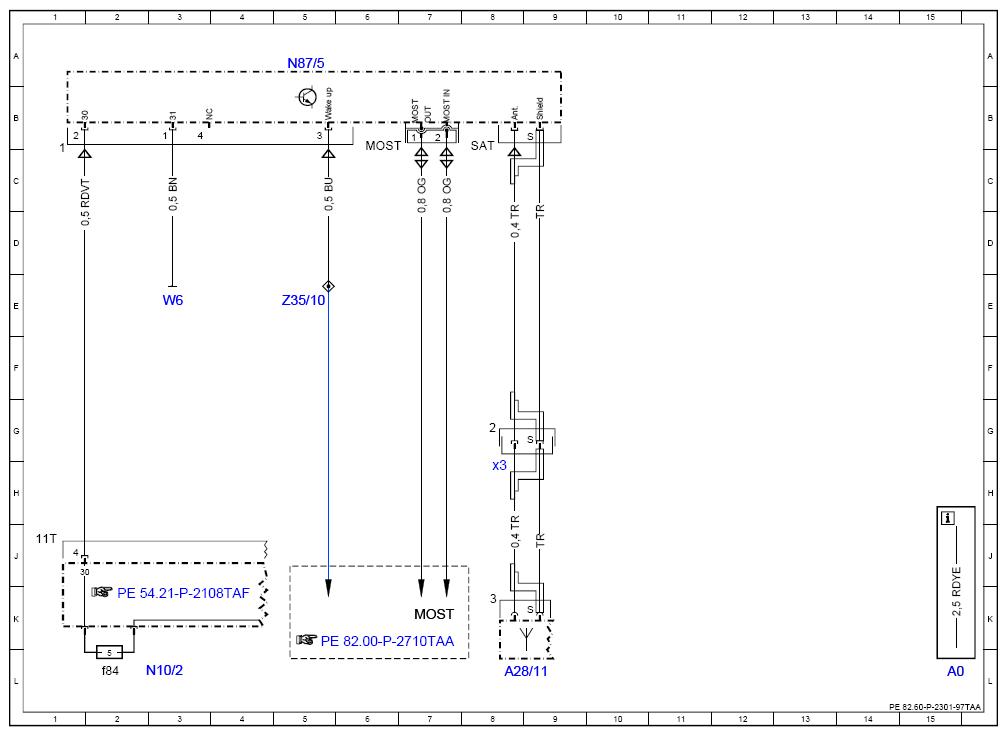

(Wiring Diagram For Satellite Digital Audio Radio System Control Unit (SDAR) - PE82.60-P-2301-97TAA)
Model 172.4
up to 2/29/16
with code 494 (US version)
with code 536 (Sirius satellite radio complete system)
Control unit N87/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A28/11 | Multifunction antenna | 8L |
| A28/11x3 | Satellite Digital Audio Radio (SDAR) multifunction antenna electrical connector | 8H |
| MOST | Media Oriented System Transport | 7K |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f84 | Fuse 84 | 2L |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 5A |
| W6 | Left wheel arch trunk ground point | 3E |
| Z35/10 | MOST wake-up signal connector sleeve | 5E |
