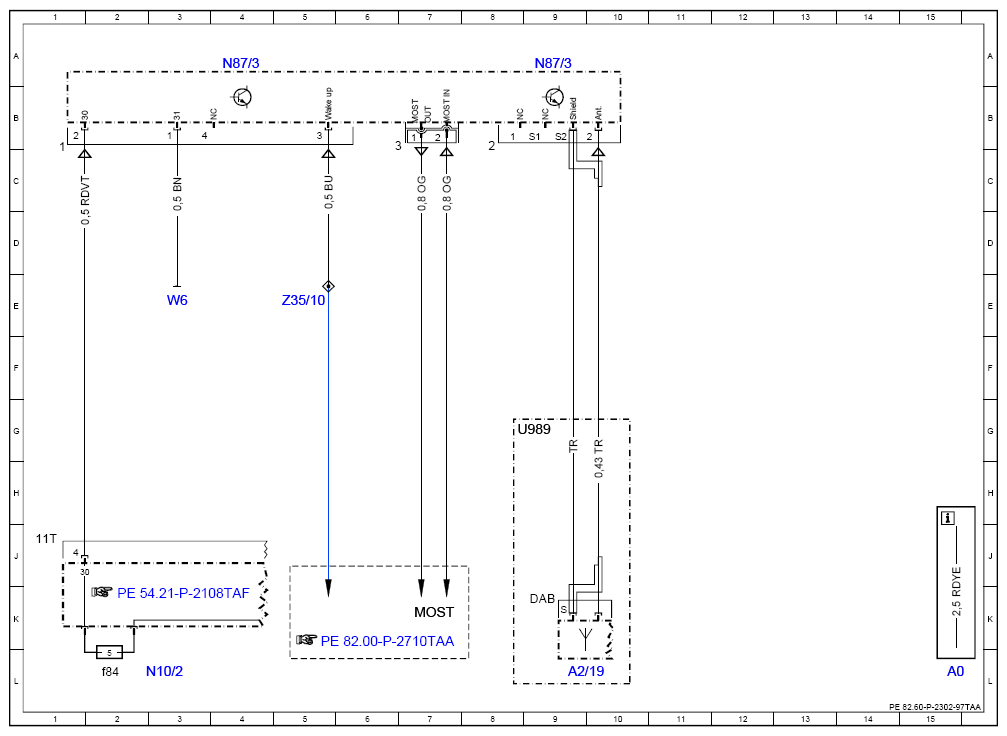

(Wiring Diagram For Digital Audio Broadcasting Control Unit System (DAB) - PE82.60-P-2302-97TAA)
Model 172.4
up to 2/29/16
with code 537 (DAB digital radio standard (Digital Audio Broadcast))
except code 494 (California version)
except code 498 (Japanese version)
Control unit N87/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A2/19 | FM 2, DAB and TV 3 antenna amplifier | 9L |
| MOST | Media Oriented System Transport | 7K |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f84 | Fuse 84 | 2L |
| N87/3 | Digital Audio Broadcasting control unit | 4A |
| N87/3 | Digital Audio Broadcasting control unit | 9A |
| U989 | Valid without TV tuner | 8G |
| W6 | Left wheel arch trunk ground point | 3E |
| Z35/10 | MOST wake-up signal connector sleeve | 5E |
