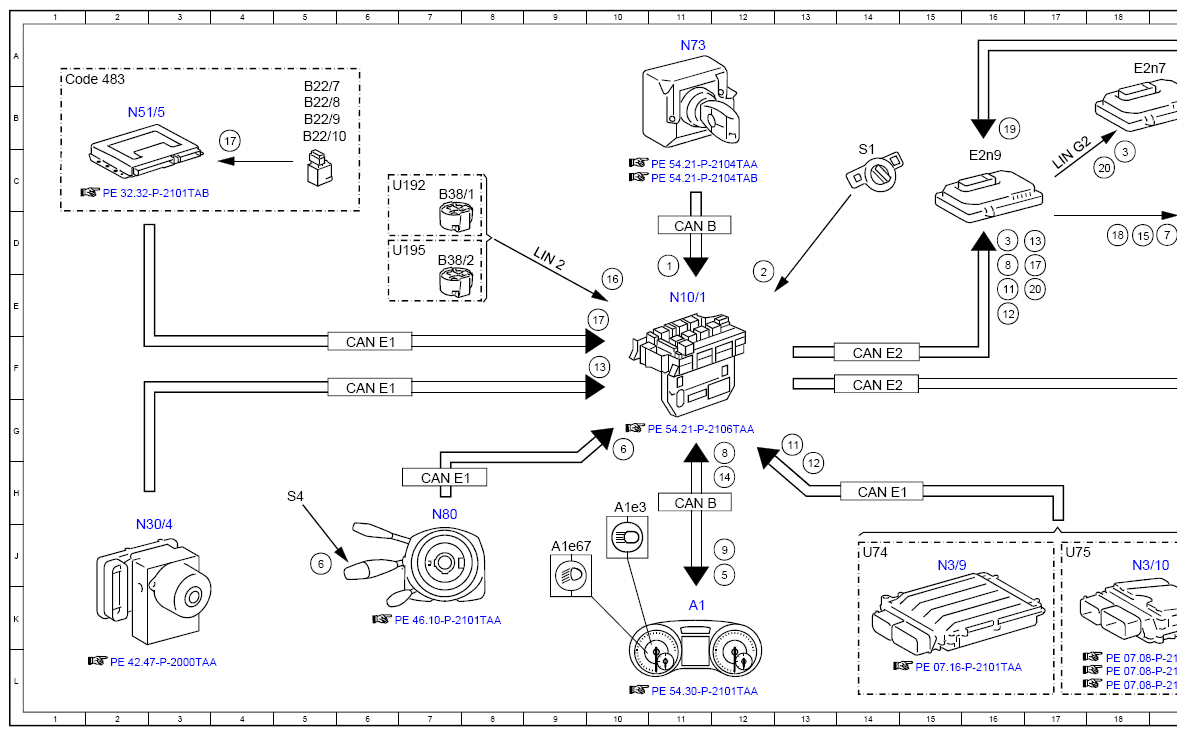

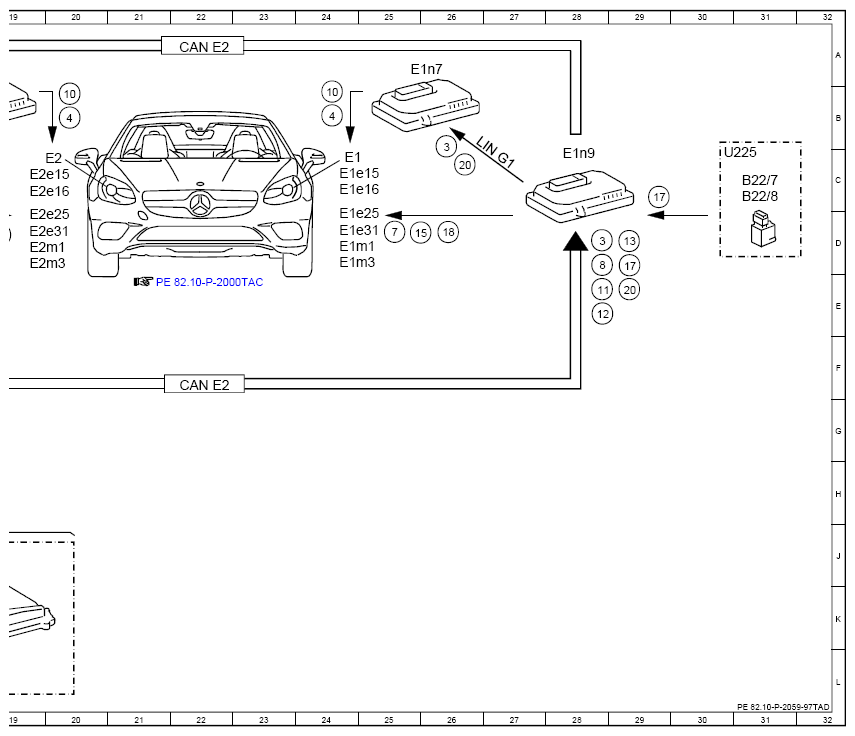

Electrical Function Schematic For Driving Light Actuation - PE82.10-P-2059-97TAD
Model 172.4
as of model year 2017
with code 640 (High-performance LED)
Model 172.4
as of model year 2017
with code 641 (Headlamps, LED, dynamic, left-side traffic)
Model 172.4
as of model year 2017
with code 642 (Headlamps, LED, dynamic, right-side traffic)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 11D |
| 10 | High beams, actuation | 24B |
| 10 | High beams, actuation | 20B |
| 11 | Engine running, signal | 13G |
| 11 | Engine running, signal | 16E |
| 11 | Engine running, signal | 28E |
| 12 | Drivetrain operational, signal | 13H |
| 12 | Drivetrain operational, signal | 16E |
| 12 | Drivetrain operational, signal | 28E |
| 13 | Wheel speed, signal | 10F |
| 13 | Wheel speed, signal | 17D |
| 13 | Wheel speed, signal | 29D |
| 14 | Vehicle speed, signal | 12H |
| 15 | Daytime running lights, actuation | 18D |
| 15 | Daytime running lights, actuation | 25D |
| 16 | Light sensor, status | 10E |
| 17 | Level sensor, signal | 10E |
| 17 | Level sensor, signal | 4B |
| 17 | Level sensor, signal | 17D |
| 17 | Level sensor, signal | 29D |
| 17 | Level sensor, signal | 29C |
| 18 | Headlamp range adjustment actuator motor, actuation | 18D |
| 18 | Headlamp range adjustment actuator motor, actuation | 26D |
| 19 | Synchronization, signal | 16B |
| 2 | Exterior lights switch, status | 12D |
| 20 | High beams, request | 18C |
| 20 | High beams, request | 26C |
| 20 | High beams, request | 17E |
| 20 | High beams, request | 29E |
| 3 | Low beams, request | 16D |
| 3 | Low beams, request | 18C |
| 3 | Low beams, request | 26C |
| 3 | Low beams, request | 28D |
| 4 | Low beams, actuation | 24B |
| 4 | Low beams, actuation | 20B |
| 5 | Low beams indicator lamp, actuation | 12J |
| 6 | Combination switch, status | 5J |
| 6 | Combination switch, status | 10G |
| 7 | Light distribution actuator motor, actuation | 19D |
| 7 | Light distribution actuator motor, actuation | 25D |
| 8 | Daytime running lights, request | 12G |
| 8 | Daytime running lights, request | 16D |
| 8 | Daytime running lights, request | 28D |
| 9 | High beam indicator lamp, actuation | 12J |
| A1 | Instrument cluster | 11K |
| A1e3 | High beam indicator lamp | 10H |
| A1e67 | Low beam indicator lamp | 9J |
| B22/10 | Right rear level sensor | 5B |
| B22/7 | Left rear level sensor | 5B |
| B22/7 | Left rear level sensor | 31C |
| B22/8 | Left front level sensor | 5B |
| B22/8 | Left front level sensor | 31C |
| B22/9 | Right front level sensor | 5B |
| B38/1 | Light sensor | 7C |
| B38/2 | Rain/light sensor | 7D |
| CAN B | Interior CAN | 11H |
| CAN B | Interior CAN | 11D |
| CAN E1 | Chassis CAN 1 | 6F |
| CAN E1 | Chassis CAN 1 | 7H |
| CAN E1 | Chassis CAN 1 | 14H |
| CAN E1 | Chassis CAN 1 | 6F |
| CAN E2 | Chassis CAN 2 | 14F |
| CAN E2 | Chassis CAN 2 | 14F |
| CAN E2 | Chassis CAN 2 | 22F |
| CAN E2 | Chassis CAN 2 | 22A |
| Code 483 | Vehicle dynamics package | 1A |
| E1 | Left front lamp unit | 24C |
| E1e15 | Left low beam (short range) | 24C |
| E1e16 | Left low beam (long range) and high beam | 24C |
| E1e25 | Left position light, daytime running light and turn signal light | 24D |
| E1e31 | Left front position light | 24D |
| E1m1 | Left headlamp range adjustment actuator motor | 24D |
| E1m3 | Left light distribution actuator motor | 24D |
| E1n7 | Actuation module for left front exterior lights LED | 25A |
| E1n9 | Left headlamp control unit | 28C |
| E2 | Right front lamp unit | 19C |
| E2e15 | Right low beam (short range) | 19C |
| E2e16 | Right low beam (long range) and high beam | 19C |
| E2e25 | Right position light, daytime running light and turn signal light | 19D |
| E2e31 | Right front position light | 19D |
| E2m1 | Right headlamp range adjustment actuator motor | 19D |
| E2m3 | Right light distribution actuator motor | 19D |
| E2n7 | Actuation module for right front exterior lights LED | 18A |
| E2n9 | Right headlamp control unit | 16C |
| LIN 2 | Wiper/inside rearview mirror LIN | 9D |
| LIN G1 | Left headlamp LIN | 26C |
| LIN G2 | Right headlamp LIN | 17C |
| N10/1 | Front SAM control unit with fuse and relay module | 11E |
| N3/10 | ME-SFI [ME] control unit | 18J |
| N3/9 | CDI control unit | 15J |
| N30/4 | Electronic Stability Program control unit | 2J |
| N51/5 | Adaptive damping system control unit | 2B |
| N73 | Electronic ignition switch control unit | 11A |
| N80 | Steering column module control unit | 7H |
| S1 | Exterior lights switch | 14C |
| S4 | Combination switch | 5H |
| U192 | Valid for light sensor | 6C |
| U195 | Valid for rain/light sensor | 6D |
| U225 | Valid without code 483 Vehicle dynamics package | 30C |
| U74 | Valid for diesel engines | 14J |
| U75 | Valid for gasoline engines | 17J |
