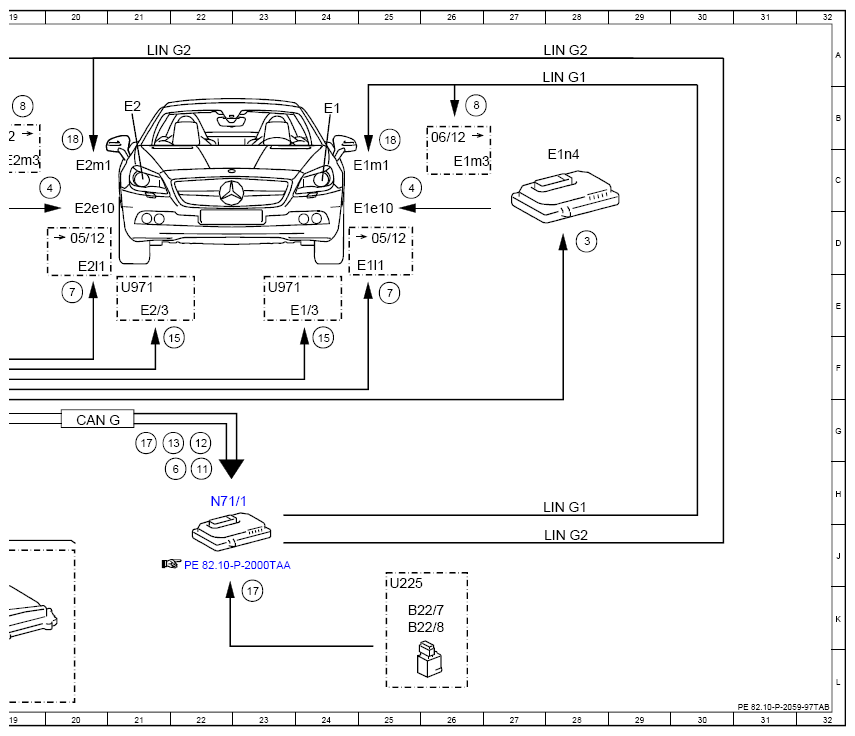

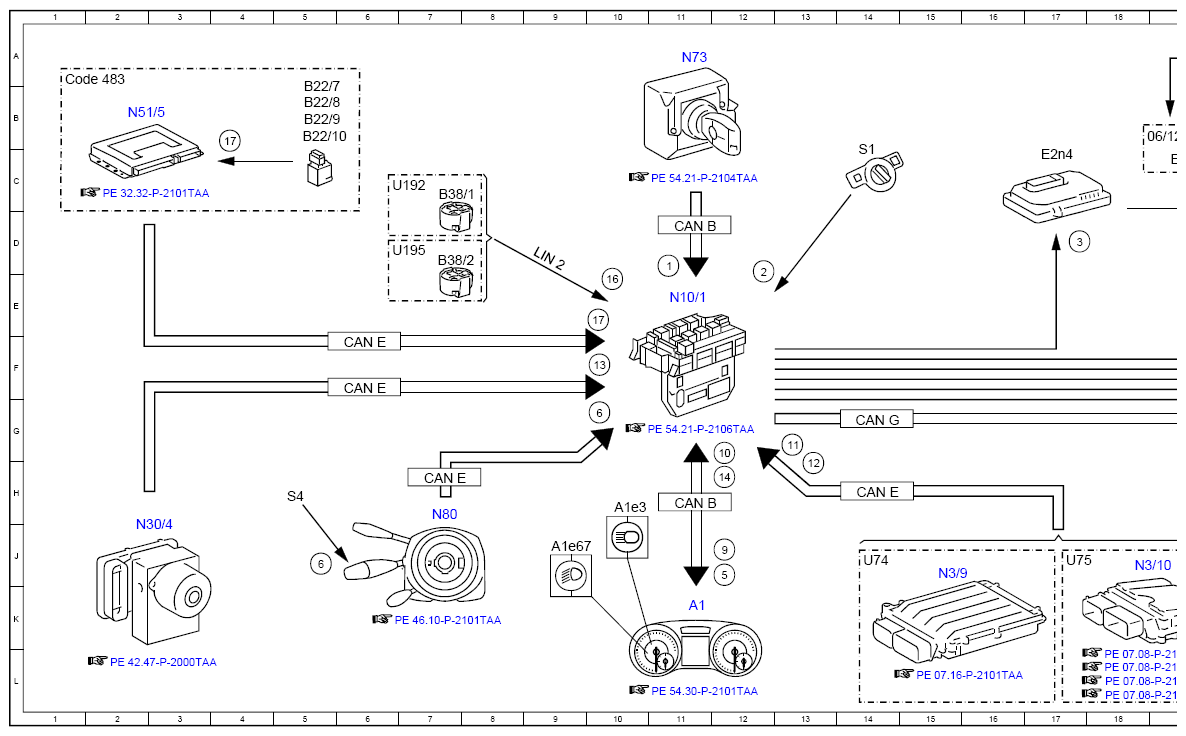

Electrical Function Schematic For Driving Light Actuation - PE82.10-P-2059-97TAB
Model 172.4
up to model year 2017
with code 615 (Bi-xenon headlamps with active light function)
Model 172.4
up to model year 2017
with code 621 (Intelligent Light System (left-hand traffic))
Model 172.4
up to model year 2017
with code 622 (Intelligent Light
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 11D |
| 10 | Daytime running lights, request | 12G |
| 11 | Engine running, signal | 13G |
| 11 | Engine running, signal | 22H |
| 12 | Drivetrain operational, signal | 13H |
| 12 | Drivetrain operational, signal | 22G |
| 13 | Wheel speed, signal | 10F |
| 13 | Wheel speed, signal | 21G |
| 14 | Vehicle speed, signal | 12H |
| 15 | Daytime running lights, actuation | 22F |
| 15 | Daytime running lights, actuation | 24F |
| 16 | Light sensor, status | 10E |
| 17 | Level sensor, signal | 10E |
| 17 | Level sensor, signal | 21G |
| 17 | Level sensor, signal | 23K |
| 17 | Level sensor, signal | 4B |
| 18 | Headlamp range adjustment actuator motor, actuation | 25B |
| 18 | Headlamp range adjustment actuator motor, actuation | 20B |
| 2 | Exterior lights switch, status | 12D |
| 3 | Low beams, actuation | 17D |
| 3 | Low beams, actuation | 28D |
| 4 | Xenon bulb with integrated ignition module, actuation | 20C |
| 4 | Xenon bulb with integrated ignition module, actuation | 25C |
| 5 | Low beams indicator lamp, actuation | 12J |
| 6 | Combination switch, status | 5J |
| 6 | Combination switch, status | 10G |
| 6 | Combination switch, status | 22H |
| 7 | High beam solenoid, actuation | 20E |
| 7 | High beam solenoid, actuation | 25E |
| 8 | Light distribution actuator motor, actuation | 19B |
| 8 | Light distribution actuator motor, actuation | 26B |
| 9 | High beam indicator lamp, actuation | 12J |
| A1 | Instrument cluster | 11K |
| A1e3 | High beam indicator lamp | 10H |
| A1e67 | Low beam indicator lamp | 9J |
| B22/10 | Right rear level sensor | 5B |
| B22/7 | Left rear level sensor | 26K |
| B22/7 | Left rear level sensor | 5B |
| B22/8 | Left front level sensor | 26K |
| B22/8 | Left front level sensor | 5B |
| B22/9 | Right front level sensor | 5B |
| B38/1 | Light sensor | 7C |
| B38/2 | Rain/light sensor | 7D |
| CAN B | Interior CAN | 11H |
| CAN B | Interior CAN | 11D |
| CAN E | Chassis CAN | 6F |
| CAN E | Chassis CAN | 7H |
| CAN E | Chassis CAN | 14H |
| CAN E | Chassis CAN | 6F |
| CAN G | Front end CAN | 14G |
| CAN G | Front end CAN | 20G |
| Code 483 | Vehicle dynamics package | 1A |
| E1 | Left front lamp unit | 24B |
| E1/3 | Left daytime running lamps headlamp | 23E |
| E1e10 | Left xenon bulb with integrated ignition module | 24D |
| E1l1 | Left high beam solenoid | 24D |
| E1m1 | Left headlamp range adjustment actuator motor | 24C |
| E1m3 | Left light distribution actuator motor | 26C |
| E1n4 | Left xenon light power supply module | 28C |
| E2 | Right front lamp unit | 21B |
| E2/3 | Right daytime running lamps headlamp | 21E |
| E2e10 | Right xenon bulb with integrated ignition module | 20D |
| E2l1 | Right high beam solenoid | 20D |
| E2m1 | Right headlamp range adjustment actuator motor | 20C |
| E2m3 | Right light distribution actuator motor | 19C |
| E2n4 | Right xenon light power supply module | 17C |
| LIN 2 | Wiper/inside rearview mirror LIN | 9D |
| LIN G1 | Left headlamp LIN | 28H |
| LIN G1 | Left headlamp LIN | 28A |
| LIN G2 | Right headlamp LIN | 28J |
| LIN G2 | Right headlamp LIN | 21A |
| LIN G2 | Right headlamp LIN | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 11E |
| N3/10 | ME-SFI [ME] control unit | 18J |
| N3/9 | CDI control unit | 15J |
| N30/4 | Electronic Stability Program control unit | 2J |
| N51/5 | Adaptive damping system control unit | 2B |
| N71/1 | Headlamp control unit | 22H |
| N73 | Electronic ignition switch control unit | 11A |
| N80 | Steering column module control unit | 7H |
| S1 | Exterior lights switch | 14C |
| S4 | Combination switch | 5H |
| U192 | Valid for light sensor | 6C |
| U195 | Valid for rain/light sensor | 6D |
| U225 | Valid without code 483 Vehicle dynamics package | 25K |
| U74 | Valid for diesel engines | 14J |
| U75 | Valid for gasoline engines | 17J |
| U971 | Valid for daytime running lamps | 21E |
| U971 | Valid for daytime running lamps | 23E |
