Overview of system components, telematics - GF82.85-P-9999RK

MODEL 231

Shown on model 231 as of 01.03.2016, telematics except antenna system and speaker system

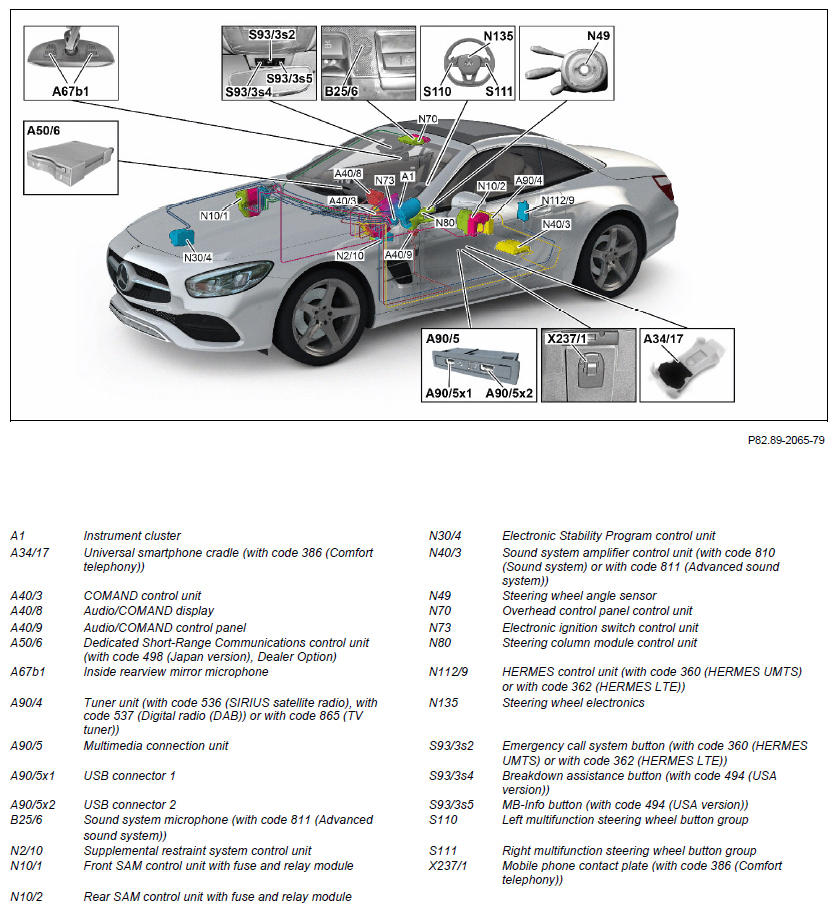

Fig 1: Overview Of Telematics System Components - Shown On Model 231 As Of 01.03.2016
G11129730Courtesy of MERCEDES-BENZ USA

Shown on model 231 up to 29.02.2016, telematics except antenna system and speaker system

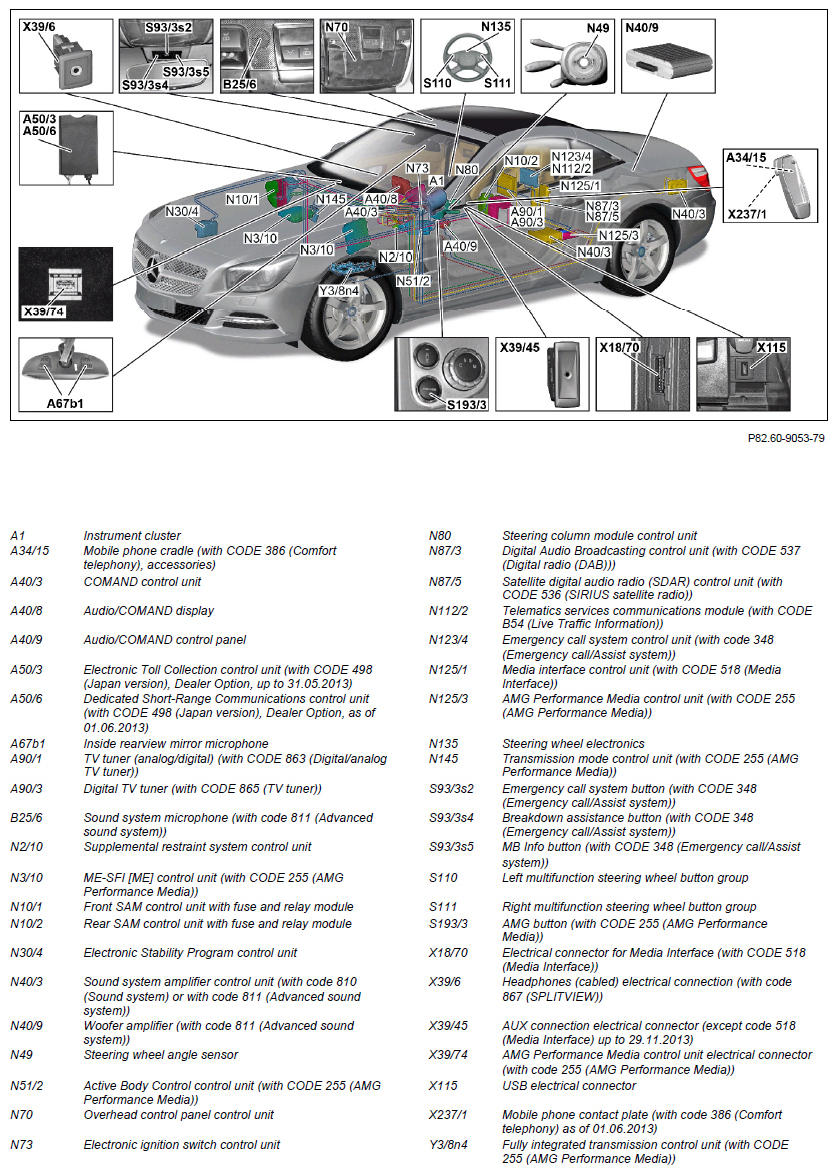

Fig 2: Overview Of Telematics System Components - Shown On Model 231 Up To 29.02.2016
G11129731Courtesy of MERCEDES-BENZ USA

Shown on model 231 as of 01.03.2016, antenna system

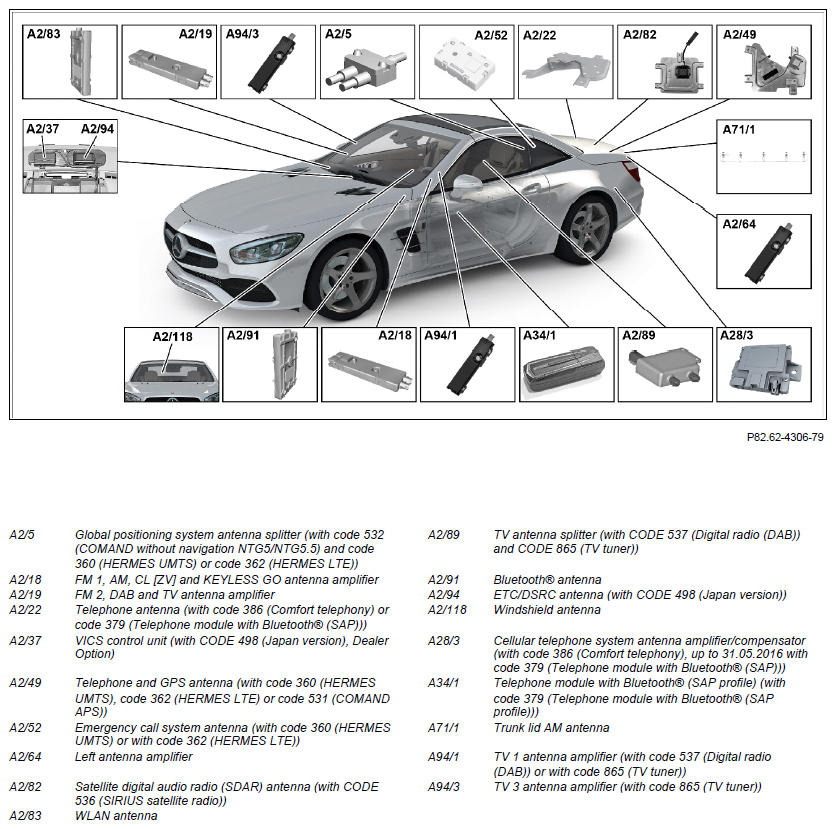

Fig 3: Overview Of Antenna System Components - Shown On Model 231 As Of 01.03.2016
G11129732Courtesy of MERCEDES-BENZ USA

Shown on model 231 up to 29.02.2016, antenna system

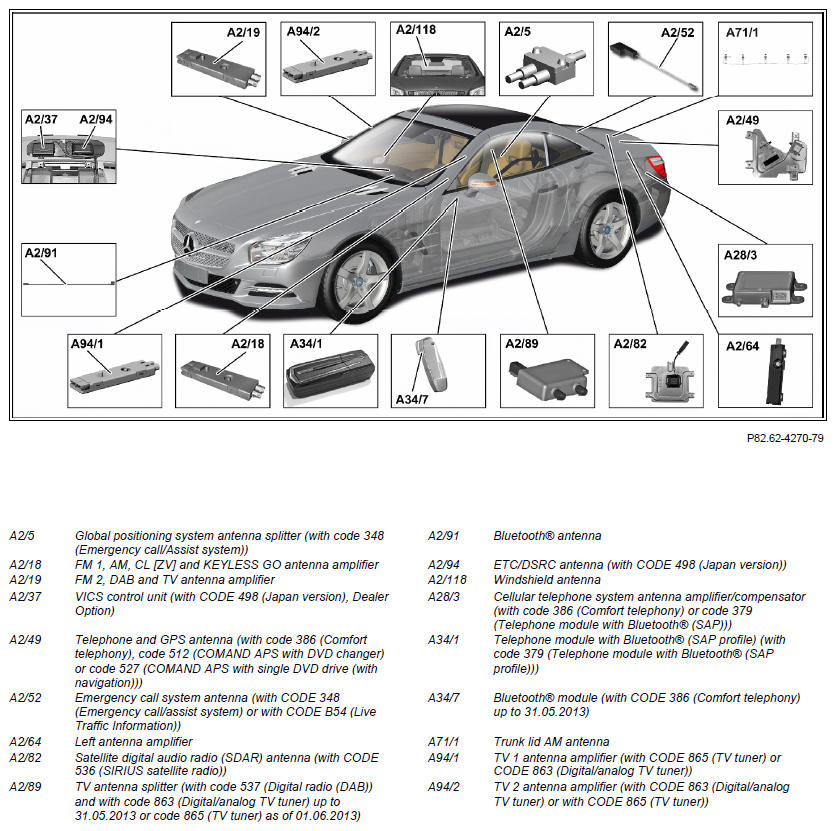

Fig 4: Overview Of Antenna System Components - Shown On Model 231 Up To 29.02.2016
G11129733Courtesy of MERCEDES-BENZ USA

Shown on model 231 up to 29.02.2016, speaker system except code 810 (Sound system) and except code 811 (Advanced sound system) and except code 348 (Emergency call/assist system) and except code 360 (HERMES UMTS) and except code 362 (HERMES LTE)

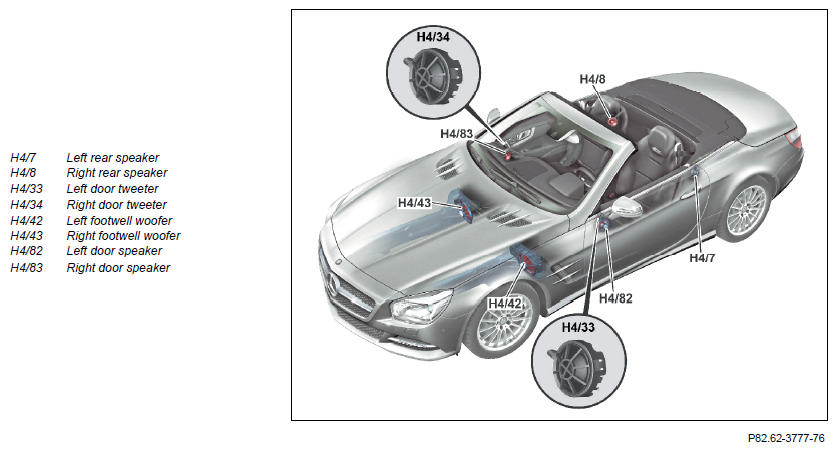

Fig 5: Overview Of Speaker System Components - Shown On Model 231 Up To 29.02.2016
G11129734Courtesy of MERCEDES-BENZ USA

IMPORTANT Model 231

with code 360 (HERMES UMTS)

Model 231

with code 362 (HERMES LTE)

The center instrument panel speaker (H4/27) is also installed and is actuated by the HERMES control unit.

IMPORTANT Model 231

with code 348 (Emergency call/assistant system)

The center instrument panel speaker is also installed and is actuated by the emergency call system control unit.

Shown on speaker system with code 810 (Sound system), model 231 up to 29.02.2016

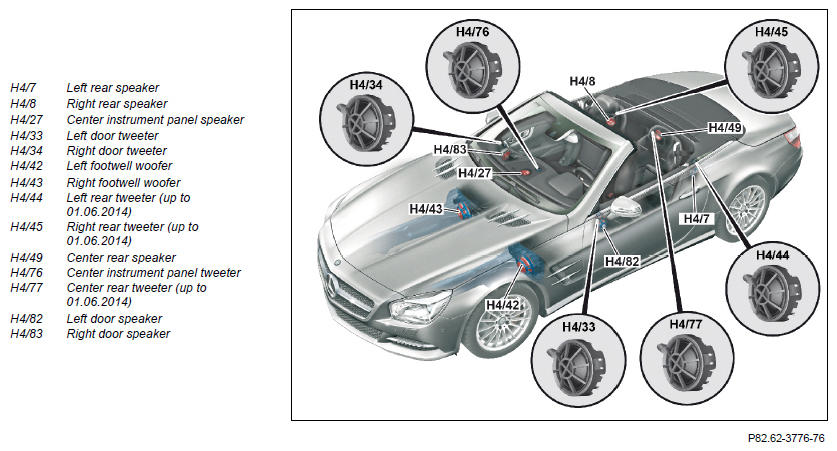

Fig 6: Overview Of Speaker System Components - Shown On Model 231 Up To 29.02.2016 With Code 810
G11129735Courtesy of MERCEDES-BENZ USA

Shown on speaker system with code 811 (Advanced sound system), model 231 up to 29.02.2016

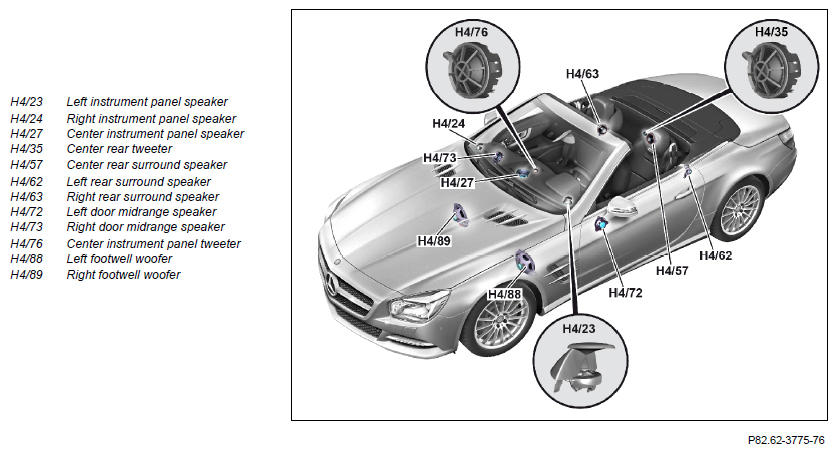

Fig 7: Overview Of Speaker System Components - Shown On Model 231 Up To 29.02.2016 With Code 811
G11129736Courtesy of MERCEDES-BENZ USA
  Component description for instrument cluster A1 GF54.30-P-6000RK
  Component description for COMAND controller unit Model 231
as of model year 2017		 GF54.30-P-6000RK
Model 231
up to model year 2017
A40/3		 GF82.85-P-3136RK
  Component description for Audio/COMAND display A40/8 GF54.30-P-6150RK
  Component description for Audio/COMAND control panel A40/9 GF54.21-P-4501RK
  Component description for TV tuner (analog/digital) Model 231
up to model year 2014
with code 863 (Digital/analog TV tuner)
A90/1		 GF82.60-P-3106RK
  Digital TV tuner, component description Model 231
as of model year 2014 up to model year 2017
with code 865 (TV tuner)
except code 498 (Japanese version)
A90/3		 GF82.60-P-3118RK
Model 231
up to model year 2017
with code 498 (Japanese version)
with code 865 (TV tuner)
A90/3		 GF82.60-P-3118RKJ
  Tuner unit, component description Model 231
as of model year 2017
with code 536 (SIRIUS satellite radio)
Model 231
as of model year 2017
with code 537 (Digital radio (DAB))
Model 231
as of model year 2017
with code 865 (TV tuner)
A90/4		 GF82.60-P-5015RKM
  Supplemental restraint system control unit, component description N2/10 GF91.60-P-4080RK
  Component description for ME-SFI (ME) control unit Model 231.4 with engine 157.9
Model 231.4 with engine 278.9
N3/10		 GF07.61-P-6000MMF
Model 231.4 with engine 279.9
N3/10		 GF07.61-P-6000MUA
  Component description for front SAM control unit with fuse and relay module N10/1 GF54.21-P-6070RK
  Component description for rear SAM control unit with fuse and relay module N10/2 GF54.21-P-6030RK
  Component description for Electronic Stability Program control unit N30/4 GF42.45-P-5119RK
  Component description for sound system amplifier control unit Model 231
with code 810 (Sound system)
N40/3		 GF82.62-P-5010RK
Model 231
with code 811 (Advanced sound system)
except code 810 (Sound system)
N40/3		 GF82.62-P-5010RKA
  ABC control unit, component description Model 231
with code 487 (Active Body Control (ABC))
N51/2		 GF32.50-P-4501RK
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001RK
  Component description for steering column tube module control unit N80 GF54.21-P-6051RK
  Component description for Digital Audio Broadcasting control unit Model 231
up to model year 2017
with code 537 (Digital radio (DAB))
N87/3		 GF82.62-P-5000RK
  Satellite digital audio radio (SDAR) control unit, component description Model 231
up to model year 2017
with code 536 (SIRIUS satellite radio)
N87/5		 GF82.85-P-3121RKU
  Telematics services communications module, component description Model 231
up to model year 2017
with code B54 (Live Traffic Information)
N112/2		 GF82.85-P-0220RK
  HERMES control unit, component description Model 231
with code 360 (HERMES UMTS)
Model 231
with code 362 (HERMES LTE)
N112/9		 GF82.85-P-0221RKM
  Component description for emergency call system control unit Model 231
up to model year 2017
with code 348 (Emergency call/assistant system)
N123/4		 GF82.95-P-3212RKU
  Component description for media interface control unit Model 231
up to model year 2017
with code 518 (Media interface)
N125/1		 GF82.60-P-5000RK
  AMG performance media control unit, component description Model 231
up to model year 2017
with code 255 (AMG Performance Media)
N125/3		 GF82.60-P-5010RK
  Component description for transmission mode control unit Model 231.4 with transmission 722.931/932
N145		 GF27.19-P-1350AHJ
  Component description for fully integrated transmission control unit Model 231 with transmission 722.9 (except 722.931)
Y3/8n4		 GF27.60-P-5165AHP
Model 231.4 with transmission 722.931
Y3/8n4		 GF27.60-P-5165AHJ
  Table of contents for function description, telematics   GF82.85-P-0993RK
