Remove/install speaker in the side paneling (rear) - AR82.62-P-7837RK

MODEL 231

without CODE 811 (Advanced sound system)

Shown with CODE 810 (Sound system) at left rear side paneling

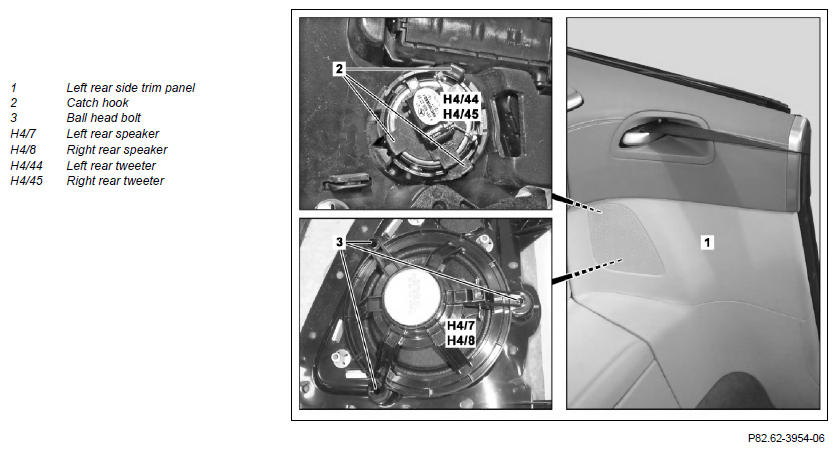

Fig 1: Speaker In Rear Side Paneling Remove/Install Components - Shown With Code 810

Courtesy of MERCEDES-BENZ USA

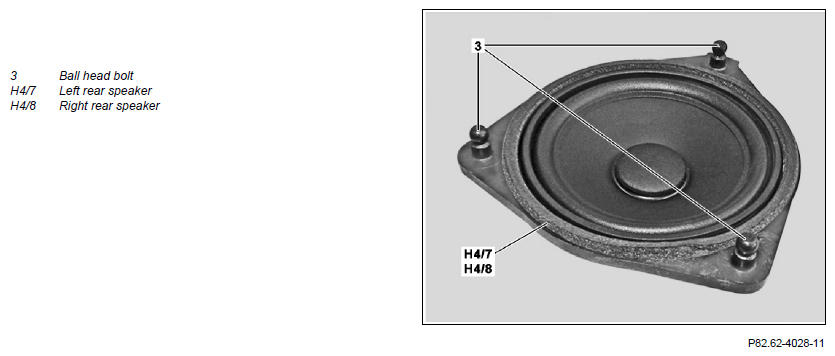

Fig 2: Speaker In Rear Side Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove left rear side paneling (1) or right rear side paneling		AR68.30-P-4780RK
2	Remove left rear tweeter (H4/44) or right rear tweeter (H4/45)	With CODE 810 (Sound system) To do so, release catch hook (2).
3	Remove left rear speaker (H4/7) or right rear speaker (H4/8)	To do so, remove ball stud (3) from rubber mounts.
4	Install in the reverse order
