Remove/install antenna amplifier module - AR82.62-P-8300RK

MODEL 231

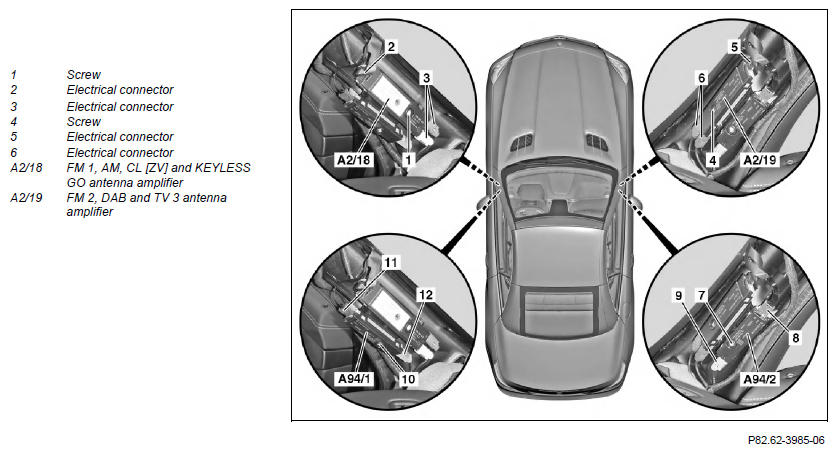

Fig 1: Antenna Amplifier Module Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove paneling from left A-pillar		AR68.30-P-4050RK
2	Remove bolt (1)
3	Disconnect electrical connector (2) from FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18)
4	Remove FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18)	To do so, release and disconnect electrical connectors (3).
5	Remove paneling on right A-pillar		AR68.30-P-4050RK
6	Remove screw/bolt (4)
7	Disconnect electrical connector (5) from FM 2, DAB and TV 3 antenna amplifier (A2/19)
8	Remove FM 2, DAB and TV 3 antenna amplifier (A2/19)	To do so, release and disconnect electrical connectors (6).
9	Install in the reverse order
10	Perform function test
