Remove/install side air vent - AR83.10-P-4740LF

MODEL 217, 222.0/1/9

Shown on model 222

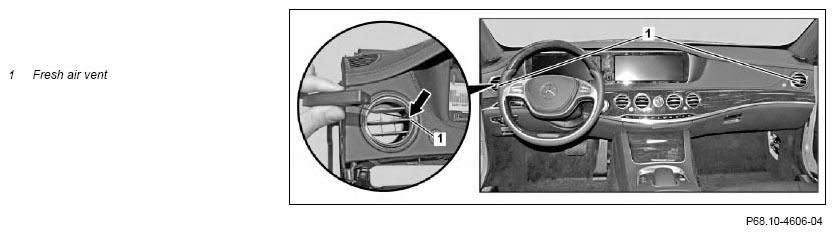

Fig 1: Side Air Vent Remove/Install Components - Shown On Model 222

Courtesy of MERCEDES-BENZ USA

	Remove
1	Insert extraction hook through open air vent (1) and position in cutout intended for this	The cutout is on the right side on the left air vent (1) and on the left side on the right air vent (1). Position the tip of the extraction hook in the cutout intended for this and turn 90°. Extraction hook	Fig 2
2	Pull out air vent (1)
	Install
3	Position air vent (1) at instrument panel and press into instrument panel	Make sure that the air vent (1) is seated correctly.

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
