ENGINE 113.962 in MODEL 463.247/248/254

ENGINE 112.945 in MODEL 463.244/245/250

In the case of low-emission exhaust concept EURO 3 in line with 99/102 EC, the engine diagnosis malfunction indicator lamp with engine symbol is installed in the instrument cluster.

As a check that the lamp is functioning correctly, the lamp lights up for 1 second with ignition ON and at an engine speed of approx. 500 rpm and higher.

If the indicator lamp does not go out, a fault exists which affects exhaust treatment.

Read out the fault memory at the diagnostic data link connector and rectify the fault.

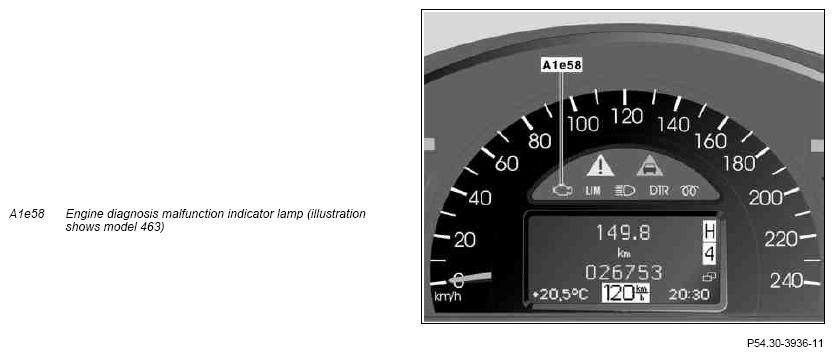

Fig 1: Identifying Engine Diagnosis Malfunction Indicator Lamp

Courtesy of MERCEDES-BENZ USA

Additional functions/components for low-emission exhaust concept EURO3 (sometimes designated as EOBD: EOBD = E uropean O n-B oard D iagnosis) are:

Air injection
Two-sensor control
Monitoring of catalytic converter efficiency
O2 sensors downstream of firewall catalytic converters
CAT system with modified volume and optimized coating
Engine diagnosis malfunction indicator lamp in instrument cluster

Engine 112, 113 as of 12/2000

All vehicles (left and right-hand drive vehicles, e.g. ) with engines 112, 113 are equipped as standard with EURO3 in accordance with 99/102 EC.
