Assignment of injectors to control module - AH07.16-P-1000-02A
WARNING: This page does not describe the selected car, but rather 202 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz GLA250, and 2019 Mercedes-Benz SLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 611.960/961
| Injector designation | Control module designation | Model | kW | Engine no. | Remarks | |
|---|---|---|---|---|---|---|
| 611 070 03 87 | with 022 545 78 32 | 202 | 92 | up to 000 445 | Control module not available through Parts | |
| 611 070 04 87 | with 025 545 72 32 | 202 | 92 | from 000 446 | up to 009 000 | Control module not available through Parts |
| 611 070 05 87 | with/026 545 03 32 | 202 | 92 | from 009 001 | Control module available through Parts | |
| or 025 545 38 32 | 202 | 75 | Control module available through Parts | |||
| or 025 545 80 32 | 210 | 92 | Control module available through Parts | |||
| or 025 545 39 32 | 210 | 75 | Control module available through Parts | |||
NOTE:

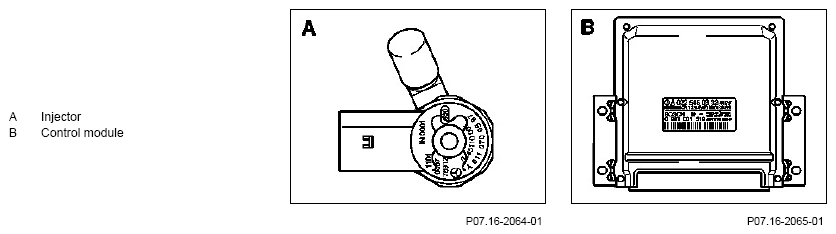

If the injectors or the control module are replaced in response to a customer complaint, it is then necessary to check whether the assignment of the injectors agrees with the control module (refer to table).
