Remove/install retaining lock for crankshaft/ring gear - AR03.30-P-5000MUB

MODEL 217 with ENGINE 279

MODEL 222 with ENGINE 277, 279

MODEL 463 with ENGINE 279

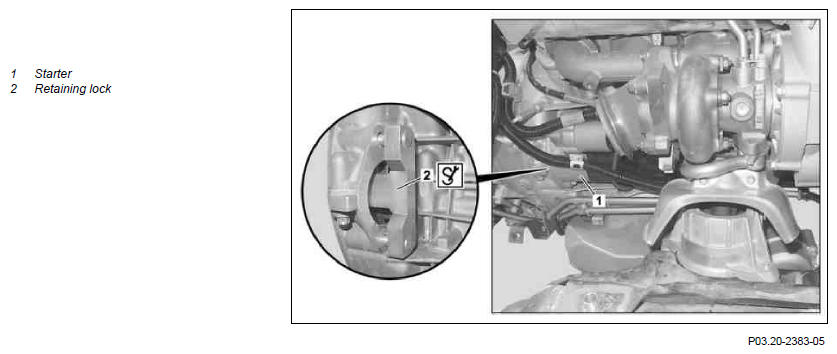

Fig 1: Crankshaft/Ring Gear Retaining Lock Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Install/remove
1	Remove starter (1)	Model 463 with engine 279	AR15.30-P-7100MUD
		Model 217 with engine 279 Model 222 with engine 277, 279	AR15.30-P-7100MUB
2	Push the retaining lock (2) into the starter opening and allow to latch into the starter ring gear	Retaining lock Do not engage the retaining lock (2) in the starter ring gear. ↓ Turn engine at crankshaft in direction of engine rotation, until the retaining lock (2) is engaged in the starter ring gear.	Fig 2
3	Removal in the reverse order

Fig 2: Identifying Retaining Lock (285 589 02 40 00)
