Remove/install flywheel/drive plate - AR03.30-P-8001LFB
ENGINE 157, 278 in MODEL 217
ENGINE 157, 278 in MODEL 222
| Remove/install | |||
| 1 | Remove transmission with torque converter | Engine 278 in model 217, 222 with transmission 725.0 | AR27.10-P-0500LFB |
| Model 217, 222 with engine 157 with transmission 722.97 Model 217, 222 with engine 278 with transmission 722.96 |
AR27.10-P-0500LHX | ||
| Model 217, 222 with engine 157 with transmission 722.9 (except 722.97) Model 217, 222 with engine 278 with transmission 722.9 (except 722.96) |
AR27.10-P-0500LF | ||
| 2 | Install retaining lock for crankshaft/starter ring gear | AR03.30-P-5000LFB | |

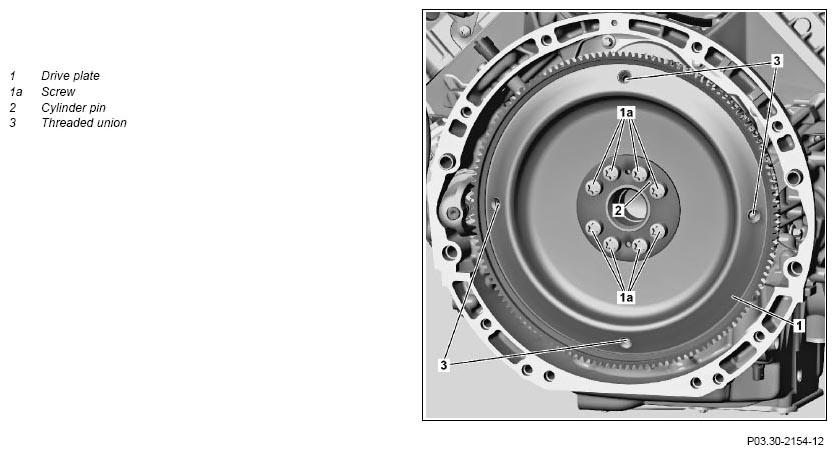

| 3 | Remove drive plate (1) | Do not use any impact wrench/driver or compressed air tool to screw the screw/bolts (1a) in and out. The thread in the crankshaft can get damaged otherwise. |
AR03.30-P-8001-02MM |
| *BA03.30-P-1002-01M | |||
| Figure | |||
| Figure | |||
| 4 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 5 | Perform default initialization and then sensor rotor adaptation using the diagnostic system | When replacing the clutch plate (1). | |
| AD00.00-P-2000-04B |
FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | ENGINE 157 | ENGINE 278 | ||
|---|---|---|---|---|---|
| BA03.30-P-1002-01M | Bolt, starter ring gear/drive plate to crankshaft | Stage 1 | Nm | 20 | 20 |
| Stage 2 | Nm | 45 | 45 | ||
| Stage 3 | ∠° | 90 | 90 | ||
