Removing and installing display module - AR54.30-P-6023LF

MODEL 217, 222

Shown on model 222

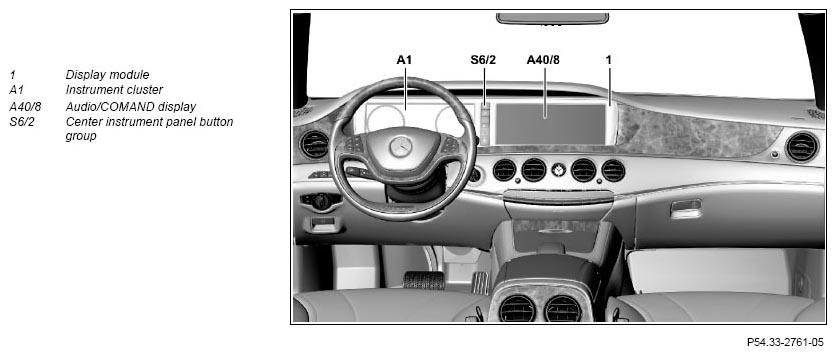

Fig 1: Display Module Remove/Install Components - Shown On Model 222

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 222 without CODE 463 (Head-up display)

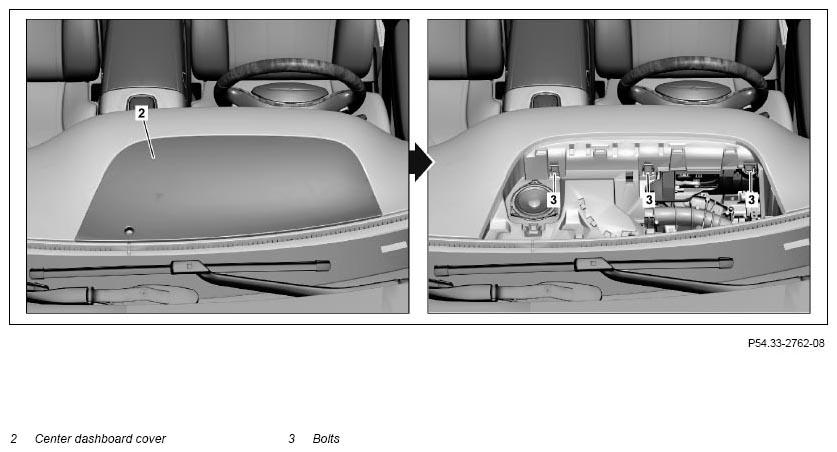

Fig 2: Display Module Remove/Install Components - Shown On Model 222 Without Code 463

Courtesy of MERCEDES-BENZ USA

Illustration shows MODEL 222 with CODE ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))

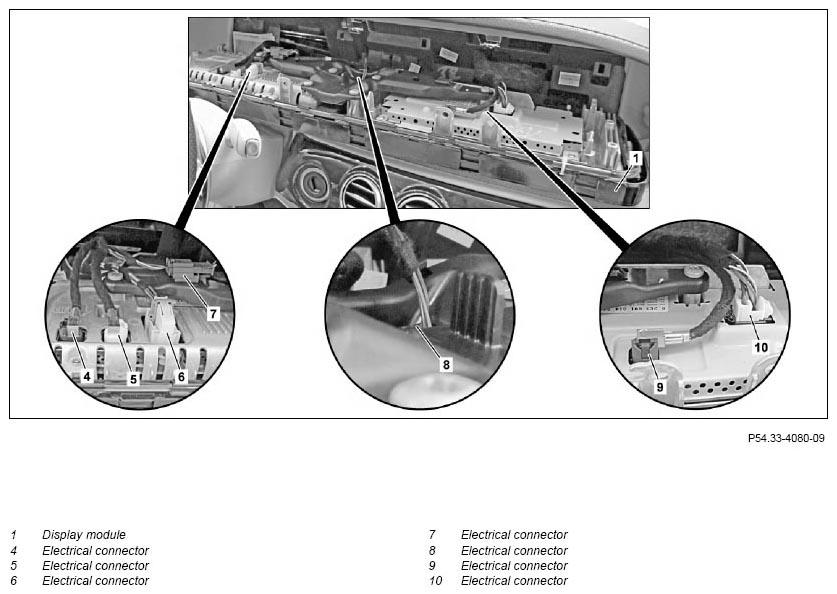

Fig 3: Display Module Remove/Install Components - Shown On Model 222 With Code ME05

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and remove transmitter key
2	Remove center instrument panel cover (2)	MODEL 217, 222.0/1	AR68.10-P-3430LF
3	Remove soundproofing underneath center instrument panel cover (2)
4	Remove screws/bolts (3)	Push display module (1) forward and tighten bolts (3).
5	Fold over display module (1) far enough until electrical connectors (4, 5, 6, 7, 8, 9, 10) are accessible	To do so, grip display module (1) at side and lift slightly to move it out of the catch hook at the top.
6	Disconnect electrical connectors (4, 5, 6, 7, 8, 9, 10)
7	Remove display module (1)
8	Install in the reverse order
