Remove/install sealing for side window on rear door - AR72.12-P-0001LFS
MODEL 222 with CODE Z07 (Top protection)
MODIFICATION NOTES
| 6.11.15 | Operation steps removed | Operation steps 4, 6, 11, 17, 18 and 30 | |
| 9.11.15 | New operation step added | Operation step 21 |
| Risk of injury from contusions to hands if window glass is not secured | Secure window to prevent it from falling down. | AS67.00-Z-0002-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||

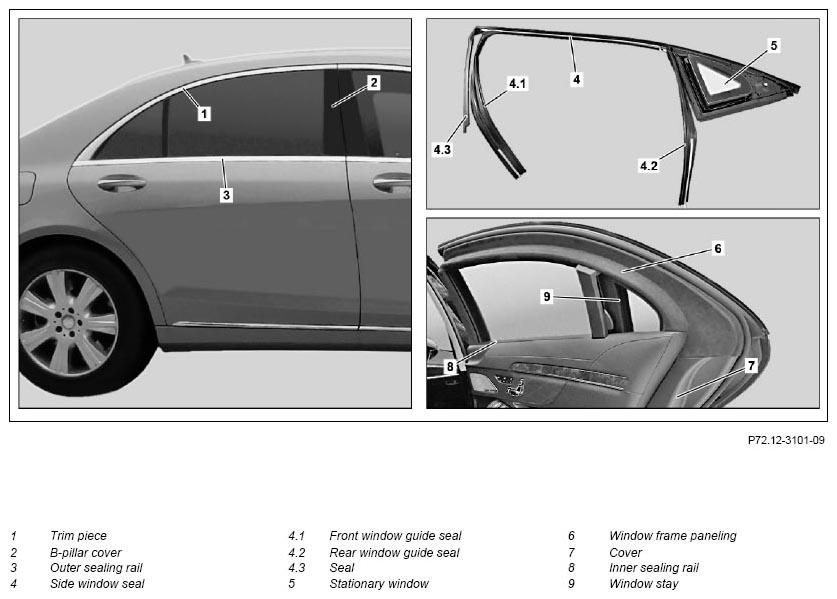

| 1 | Remove window frame paneling (6) | ||
| 2 | Remove paneling (7) from inner rear door in area of door lock | Figure | |
| 3 | Remove rear door window | Model 222 with code Z07 (Top protection) with code Z13 (Left rear power window with special protection) with code Z14 (Right rear power window with special protection) |
AR72.12-P-1920LFS |
| 4 | Remove trim piece (1) | Lift trim piece (1) out of side window seal (4) with care. Otherwise the trim piece (1) can bend and must be replaced. |
|
| Figure | |||
| 5 | Pull out seal (4.3) in area of B-pillar cover (2) | ||
| 6 | Pull out front window guide seal (4.1) in area of B-pillar cover (2) | ||
| 7 | Unscrew bolts from B-pillar cover (2) and remove B-pillar cover (2) | ||
| 8 | Pull out rear window guide seal (4.2) in area of window stay (9) | ||
| 9 | Remove side window seal (4) from window frame | ||
| 10 | Remove stationary window (5) from side window seal (4) | When replacing side window seal (4). | |
| Install | |||
| 11 | Insert stationary window (5) in side window seal (4) | When replacing side window seal (4). |
|
| 12 | Apply lubricant to side window seal (4) in assembly area of window frame | Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A |
| 13 | Install side window seal (4) on window frame | ||
| 14 | Apply lubricant to rear window guide seal (4.2) in assembly area of window stay (9) | Do not get lubricant on bonding area. Otherwise adhesion problems may occur. Lubricant, rubber assembly 1 l |
*BR00.45-Z-1010-06A |
| 15 | Push rear window guide seal (4.2) down into guide rail | ||
| 16 | Apply lubricant to front window guide seal (4.1) in area of B-pillar cover (2) | Do not get lubricant on bonding area. Otherwise adhesion problems can occur. Lubricant, rubber assembly 1 l |
*BR00.45-Z-1010-06A |
| 17 | Push front window guide seal (4.1) down into guide rail | ||
| 18 | Apply lubricant to outer sealing rail (3) and B-pillar cover (2) in assembly area of B-pillar cover (2) | Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A |
| 19 | Insert B-pillar cover (2) | ||
| 20 | Screw in bolts on B-pillar cover (2) as far as they will go | ||
| 21 | Fit seal (4.3) to B-pillar cover (2) | ||
| 22 | Install outer sealing rail (3) | ||
| 23 | Apply lubricant to profiled section of trim piece (1) and side window seal (4) in assembly area of trim piece (1) | Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A |
| 24 | Install trim piece (1) | ||
| 25 | Align trim piece (1) and outer sealing rail (3) | ||
| 26 | Tighten bolts on B-pillar cover (2) | ||
| 27 | Apply lubricant to inner sealing rail (8) | Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A |
| 28 | Install inner sealing rail (8) | ||
| 29 | Install window in rear door | Model 222 with code Z07 (Top protection) with code Z13 (Left rear power window with special protection) with code Z14 (Right rear power window with special protection) |
AR72.12-P-1920LFS |
| 30 | Install window frame paneling (6) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
