Remove/install seal (upper) on rear door window frame - AR72.12-P-1550LFS
MODEL 222 with CODE Z07 (Top protection)
| Notes on avoiding damage to windows installed in special high-security vehicles | AH67.00-P-0003-01FB | ||
| Remove/install | |||

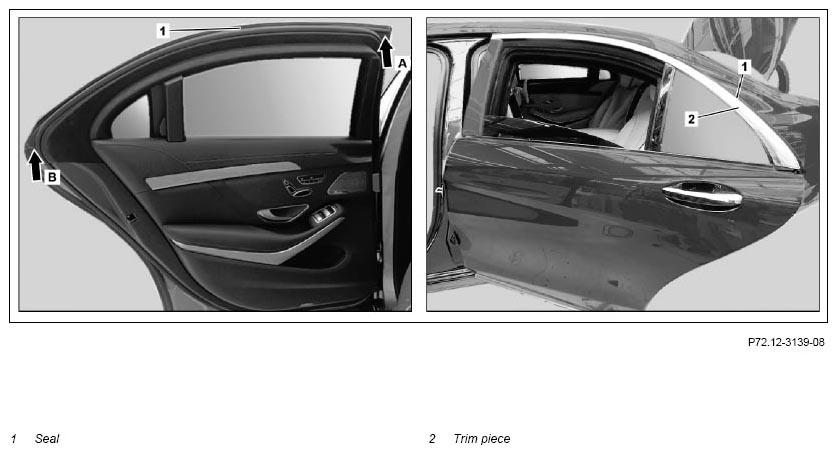

| 1 | Unclip trim piece (2) on rear door window frame from seal (1) | Unclip trim piece (2) with care. Otherwise the trim piece (2) may be damaged. |
|
| 2 | Detach seal (1) from window frame at top (arrow A) and rear (arrow B) | ||
| 3 | Pull seal (1) outwards and off window frame | Ensure seal (1) is correctly seated. Otherwise wind noise may occur. |
|
| 4 | Install in reverse order |
