Remove/install rear door - AR72.12-P-0600LFS
MODEL 222 with CODE Z07 (Top protection)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1.1 | Remove window on left or right rear door | Model 222 with code Z07 (Top protection) with code Z13 (Left rear power window with special protection) with code Z14 (Right rear power window with special protection) |
AR72.12-P-1920LFS |
| 1.2 | Remove window on left or right rear door | Model 222 with code Z07 (Top protection) except code Z13 (Left rear power window with special protection) except code Z14 (Right rear power window with special protection) |
|
| 2 | Disconnect battery ground line | AR54.10-P-0003LF | |
| 3 | Disconnect electrical connector on left rear door (5) or electrical connector on right rear door | ||

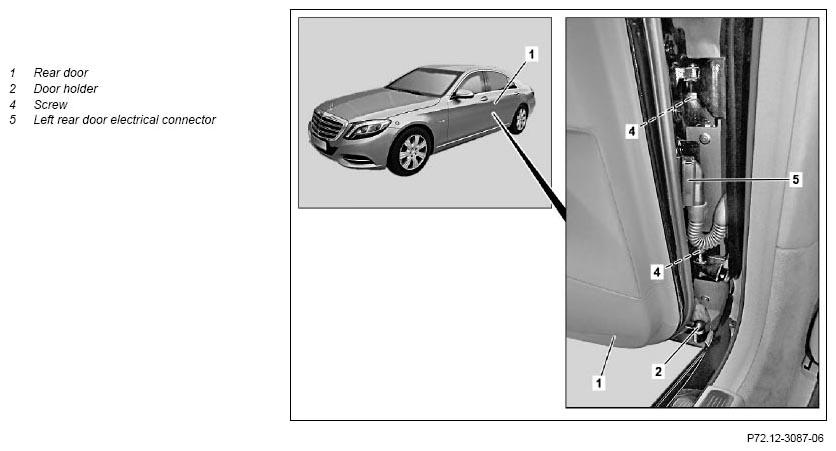

| 4 | Press left door holder (2) or right door holder off of ball stud on B-pillar | Figure | |
| 5 | Remove caps from bolts (4) | ||
| 6 | Remove screws (4) | ||
| 7 | Remove rear door (1) from door hinge halves on B-pillar | Remove rear door (1) carefully. Otherwise the rear door (1) and front door can be damaged. |
|
| Install | |||
| 8 | Position rear door (1) on door hinge leaf on B-pillar | ||
| 9 | Moisten thread on bolts (4) with Loctite | Thread locking agent, Loctite 243 (10 ml) | *BR00.45-Z-1133-02A |
| 10 | Tighten bolts (4) | *BA72.12-P-1003-01S | |
| 11 | Repair paint damage in area of bolts (4) | ||
| 12 | Install caps on bolts (4) | ||
| 13 | Press left door holder or right door holder on ball stud to B-pillar | ||
| 14 | Connect electrical connector on left rear door (5) or electrical connector on right rear door | ||
| 15 | Connect ground cable to battery | AR54.10-P-0003LF | |
| 16.1 | Remove window on left or right rear door | Model 222 with code Z07 (Top protection) except code Z13 (Left rear power window with special protection) except code Z14 (Right rear power window with special protection) |
|
| 16.2 | Remove window on left or right rear door | Model 222 with code Z07 (Top protection) with code Z13 (Left rear power window with special protection) with code Z14 (Right rear power window with special protection) |
AR72.12-P-1920LFS |
| Check | |||
| 17 | Check adjustment of rear door (1), correct if necessary | AR72.12-P-0650LFS |
REAR DOOR
| Number | Designation | Model 222 with CODE Z07 | |
|---|---|---|---|
| BA72.12-P-1003-01S | Bolt to hinge shaft | Nm | 34 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1133-02A | Thread locking agent, Loctite 243 (10 ml) | A 613 989 09 71 09 |
