Remove/install trim strip on dashboard - AR68.10-P-1180LF
MODEL 222.0/1/9
Instrument panel trim piece
Driver side trim piece
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||

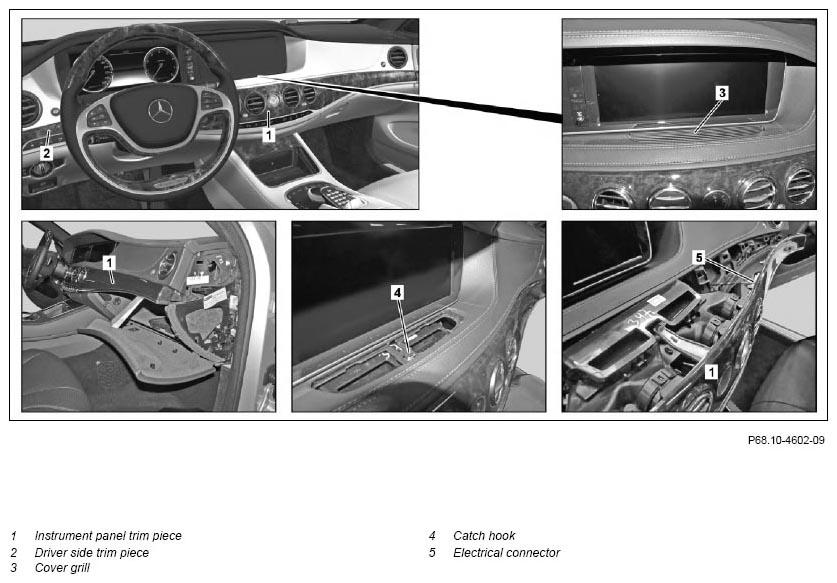

| Remove instrument panel trim piece (1) | |||
| 2 | Open glove compartment and unclip side cover on instrument panel on passenger side | Fig 3 | |
| 3 | Unclip cover grill (3) in front of central display | Fig 3 | |
| 4 | Open stowage compartment and remove bolt head covers | ||
| 5 | Unscrew bolts and lay stowage compartment down on center console with lines connected | To prevent damaging center console. |
|
| 6 | Unclip instrument panel trim piece (1) | Fig 3 | |
| 7 | Press catch hook (4) downward and remove instrument panel trim piece (1) | ||
| 8 | Disconnect electrical connector from front air conditioning system operating unit | ||
| 9 | Disconnect electrical connector (5) and remove instrument panel trim piece (1) | ||
| 10 | Transfer air conditioning operating unit, instrument panel optical fiber, center air vent potentiometer, center air vents and analog clock | When replacing instrument panel trim piece (1) | |
| Remove driver side trim piece (2) | |||
| 11 | Extend steering wheel | ||

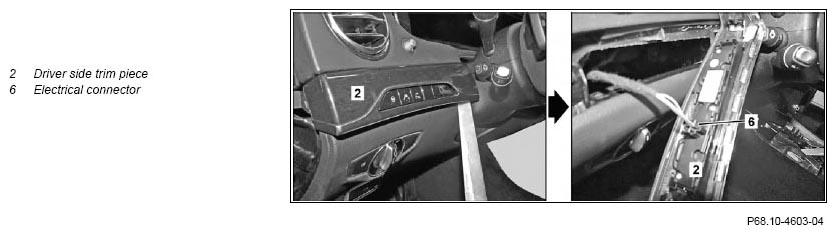

| 12 | Unclip driver side trim piece (2) | Fig 3 | |
| 13 | Push driver side trim piece (2) toward outside | ||
| 14 | Disconnect electrical connector (6) and remove driver side trim piece(2) | ||
| 15 | Transfer drive assistance system switch group | When replacing driver side trim piece (2) | |
| 16 | Install in the reverse order |
