Remove/install window in rear door - AR72.12-P-1920LFS

MODEL 222

with CODE Z07 (Top protection)

with CODE Z13 (Left rear power window with special protection)

with CODE Z14 (Right rear power window with special protection)

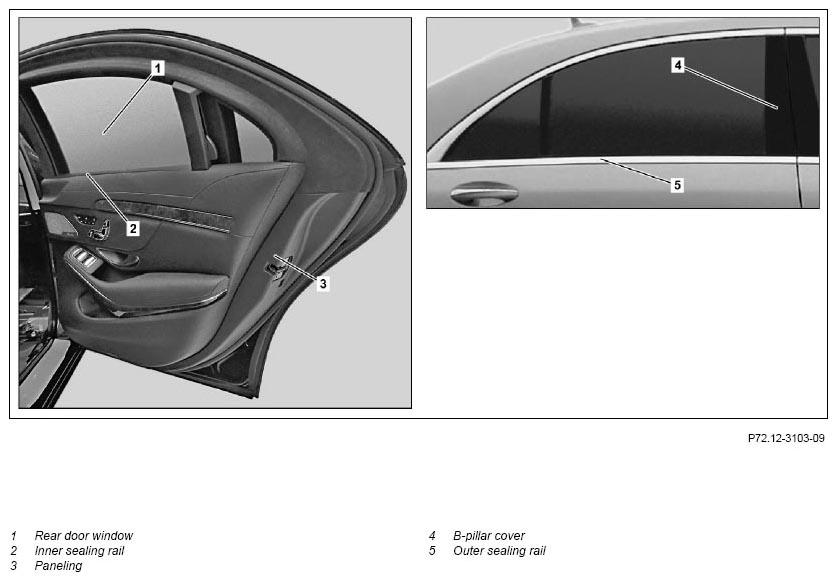

Fig 1: Rear Door Window Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

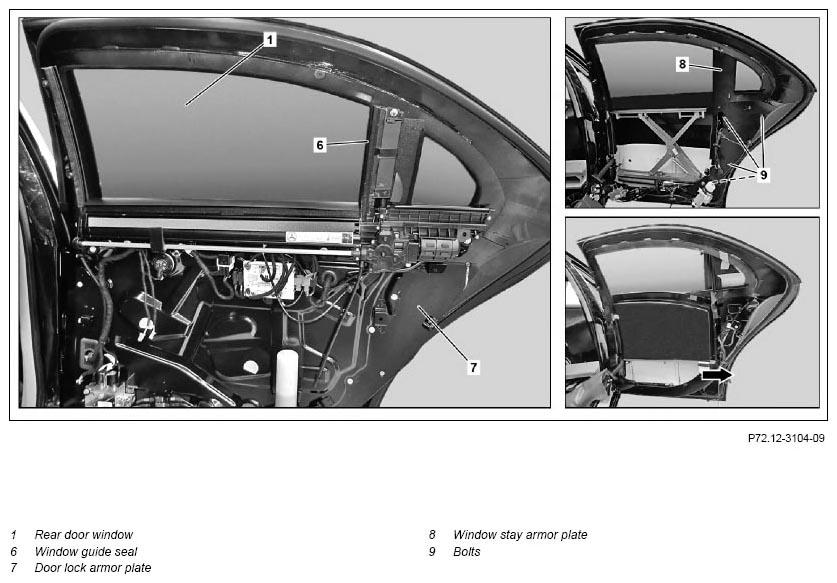

Fig 2: Rear Door Window Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

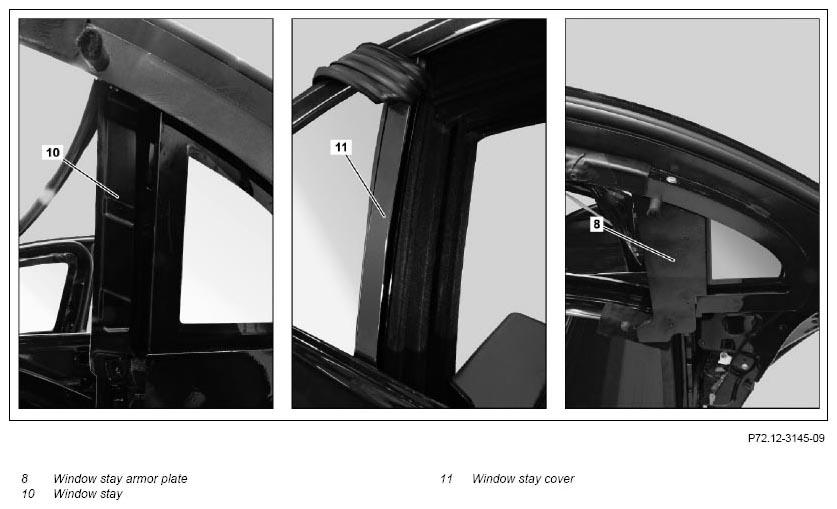

Fig 3: Rear Door Window Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  from pinching or crushing hands and feet when working on windows.	Secure the windshields and windows against falling down; use only specified lifting tools; wear safety shoes.	AS67.00-Z-0003-01A
	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
	Remove/install
1	Remove power window of left and right rear doors		AR72.12-P-1810LFS
2	Remove inner sealing rail (2) on left and right	Carefully lift inner sealing rail (2) out of bead on inner door panel. Otherwise the inner sealing rail (2) can bend and must be replaced.
		Mounting wedge	Figure
3	Remove paneling (3) on inner rear door in area of left and right door lock	Mounting wedge	Figure
4	Remove outer sealing rail (5) on left and right	Carefully lift out outer sealing rail (5). Otherwise the outer sealing rail (5) can bend and must be replaced.
		Mounting wedge	Figure
5	Pull out window guide seal (6) in area of B-pillar cover (4)
6	Unscrew bolts from B-pillar cover (4) and remove B-pillar cover (4)
7	Unscrew bolts of window stay armor plate (8) and remove window stay armor plate (8)	Bolt, armor plate to rear door	*BA72.12-P-1009-01S
8	Unscrew bolts of window stay cover (11) and remove window stay cover (11)
9	Unscrew bolts of window stay (10) and remove window stay (10)
10	Remove bolts (9) and remove door lock armor plate (7)	Bolt, armor plate to rear door	*BA72.12-P-1009-01S
11	Remove rear guide rail (towards C-pillar) for side window, together with brackets
12	Fasten suitable lifting device to rear door window (1) and lift rear door window (1) out of rear door in direction of arrow	To remove rear door window (1), suitable lifting equipment (crane, cup suction tool) and an assistant are required.
13	Install in reverse order

Fig 4: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
