Remove/install window frame trim strip on front door - AR72.10-P-1711LFS
MODEL 222
with CODE Z07 (Top protection)
| Notes on avoiding damage to windows installed in special high-security vehicles | AH67.00-P-0003-01FB | ||
| Remove/install | |||

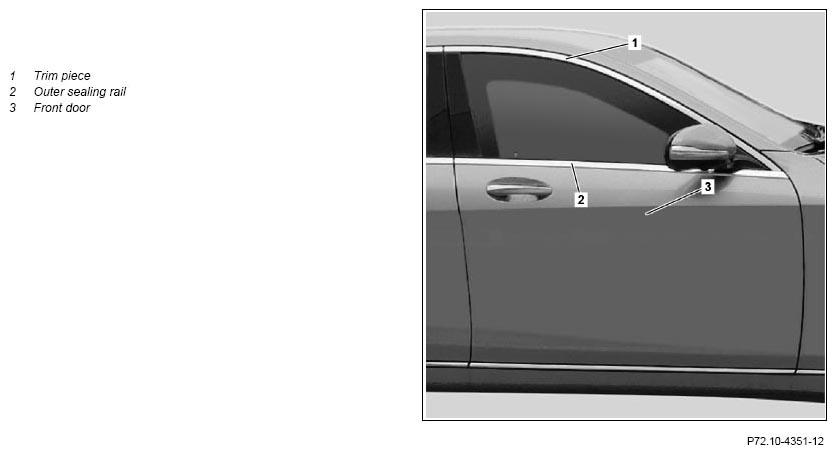

| 1 | Mask front door (3) in area of outer sealing rail (2) with suitable adhesive tape | Mask front door below outer sealing rail (2). Otherwise the paint on the front door (3) can be damaged when removing the outer sealing rail (2). |
|
| 2 | Remove outer sealing rail (2) | Carefully lift out outer sealing rail (2). Otherwise the outer sealing rail (2) can bend and must be replaced. |
|
| Figure | |||
| 3 | Remove trim piece (1) | Carefully lift trim piece (1) out of side window seal. Otherwise the trim piece (1) can bend and must be replaced. |
|
| Figure | |||
| 4 | Install in the reverse order |
