Remove/install rear door lock - AR72.12-P-2510LFS
MODEL 222 with CODE Z07 (Top protection)
MODIFICATION NOTES
| 6.11.15 | New operation steps added | Operation step 3, 7, 8 and 9 | |
| 6.11.15 | Operation steps changed | Operation steps 6 and 10 | |

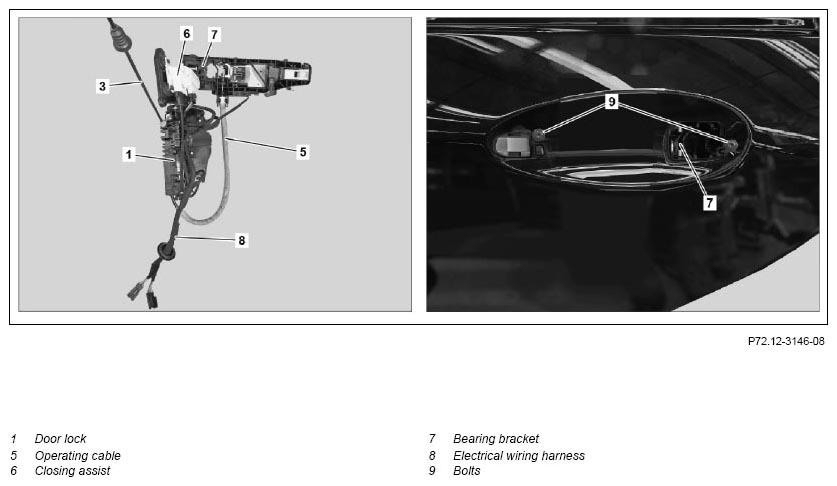

| 6.11.15 | New graphic added | Graphic P72.12-3146-08 |
| Remove/install | |||
| 1 | Remove left or right rear door module | AR72.12-P-0103LFS | |

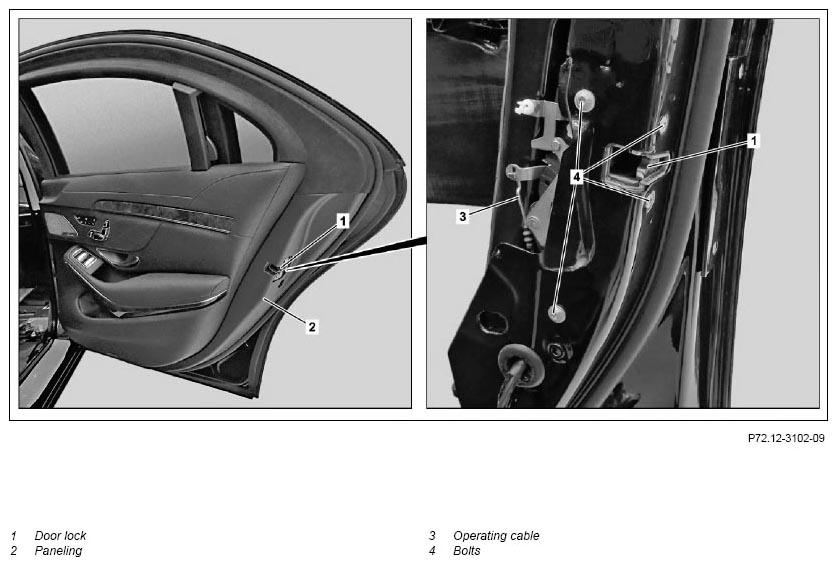

| 2 | Remove paneling (2) on inner rear door in area of left and right door lock | Figure | |
| 3 | Connect CAN box (as control unit replacement) or control unit with power window operating unit to power window | ||
| 4 | Completely close side window on left or right rear door and secure with clamping pliers so it cannot drop down | Figure | |
| 5 | Detach side window from power window and completely lower power window | Model 222 with code Z07 (Top protection) with code Z13 (Left rear power window with special protection) with code Z14 (Right rear power window with special protection) |
AR72.12-P-1810LFS |
| 6 | Disconnect CAN box (as control unit replacement) or control unit with power window operating unit from power window | ||
| 7 | Unscrew door lock armor plate, cut butyl cord at rear of door lock armor plate with suitable cutting blade, and remove door lock armor plate | *BA72.12-P-1009-01S | |
| 8 | Unhook operating cable (3) from door lock | ||
| 9 | Unscrew bolts (9) from bearing bracket (7) | ||
| 10 | Remove bolts (4) | *BA72.12-P-1005-01S | |
| 11 | Remove door lock (1) with operating cable (5), closing assist (6), bearing bracket (7) and electric wiring harness (8) | ||
| 12 | Remove operating cable (5) from door lock | When replacing door lock (1). | |
| 13 | Install in reverse order |
REAR DOOR
| Number | Designation | MODEL 222 with CODE Z07 | |
|---|---|---|---|
| BA72.12-P-1005-01S | Bolt, door lock to rear door | Nm | 9 |
REAR DOOR
| Number | Designation | Model 222 with CODE Z07 | ||
|---|---|---|---|---|
| BA72.12-P-1009-01S | Bolt, armor plate to rear door | M6 | Nm | 8 |
| M8 | Nm | 28 | ||
