Remove/install crank window in rear door - AR72.12-P-1910LF

MODEL 222.0/1/9

without CODE Z07 (Top protection)

Shown on model 222.0/1

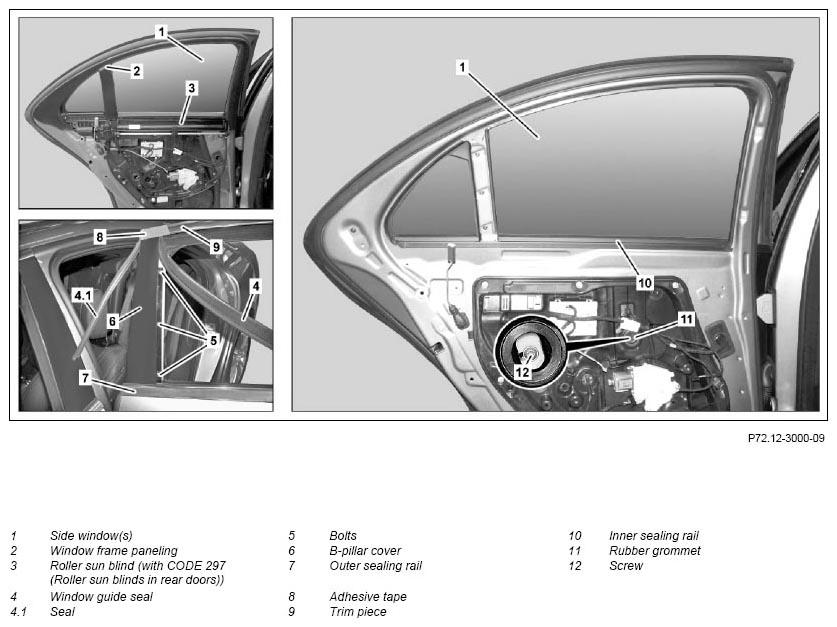

Fig 1: Crank Window In Rear Door Remove/Install Components - Shown On Model 222.0/1

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove
1	Completely lower left and right side window (1)
2	Remove rear door lining		AR72.12-P-1010LF
3	Unclip window frame paneling (2)	Remove clips remaining in window frame and install in window frame paneling (2).
		Clip remover	Figure
4	Remove roller sun blind (3)	MODEL 222.0/1/9 with CODE 297 (Roller sun blinds in rear doors) without CODE Z07 (Top protection)
5	Remove inner sealing rail (10)	Carefully lift inner sealing rail (10) out of bead on inner door panel. otherwise the inner sealing rail (10) can bend and must be replaced.
		Mounting wedge	Figure
6	Pull out window guide seal (4) in area of B-pillar cover (6)
7	Pull seal (4.1) out of B-pillar cover (6)
8	Unscrew bolts (5) from B-pillar cover (6)
9	Glue adhesive tape (8) to trim strip (9) as shown	The adhesive tape (8) protects trim strip (9) when removing B-pillar cover (6).
10	Remove B-pillar cover (6)
11	Remove rubber grommet (11) from door module	MODEL 222.9 without CODE Z07 (Top protection) Additionally remove rubber grommet (11).
12	Connect electric wiring harness of removed door lining to left and right rear door control unit
13	Open side window (1) until bolt (12) is accessible through assembly opening in door module	Move side window (1) toward rear into window guide seal (4). Otherwise the paint on the front door frame can be damaged.
14	Unscrew screw/bolt (12)	MODEL 222.9 without CODE Z07 (Top protection) Two bolts (12) are present.
15	Remove side window (1) upward from window channel in rear door
	Install
16	Insert side window (1)	Guide side window (1) into window shaft in rear door and slide downward until mount makes contact. Then move toward rear into window guide seal (4).
17	Tighten screw (12)	MODEL 222.9 without CODE Z07 (Top protection) Two bolts (12) are present.
		Bolt, side window to window lifter	*BA72.12-P-1006-01Q
18	Completely lower side window (1)	Move side window (1) toward rear into window guide seal (4). Otherwise the paint on the front door frame can be damaged.
19	Moisten outer sealing rail (7) and B-pillar cover (6) in assembly area of B-pillar cover (6) with lubricant.	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
20	Install B-pillar cover (6)
21	Remove adhesive tape (8) from trim piece (9)
22	Unscrew bolts (5) on B-pillar cover (6)
23	Remove seal (4.1) in assembly area of B-pillar cover (6) with lubricant	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
24	Insert seal (4.1) into B-pillar cover (6)	Ensure that seal (4.1) is seated correctly.
25	Remove window guide seal (4) in assembly area of B-pillar cover (6) with lubricant	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
26	Moisten window guide seal (4) below B-pillar cover (6) with soapy water	Soap solution has the required lubrication characteristics for the installation.
27	Insert window guide seal (4) into window guide rail and slide downward
28	Pull window guide rail (4) upward until the correct installation position is reached
29	Insert window guide seal (4) into window guide rail in area of B-pillar cover (6)	Ensure that window guide seal (4) is seated correctly.
30	Moisten obstruction sensor strip on inner sealing rail (10) with lubricant	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
31	Install inner sealing rail (10)
32	Perform test run for side window (1)	Completely close side window (1) and then open; check side window (1) for ease of movement. If complaint is present, loosen bolt (12) and adapt installation position of side window (1) correspondingly.
33	Install rubber grommet (11) into door module
34	Install roller sun blind (3)	MODEL 222.0/1 with CODE 297 (Roller sun blinds in rear doors) without CODE Z07 (Top protection)
35	Coat side window (1) in assembly area of window frame paneling (2) with lubricant	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
36	Clip in window frame paneling (2)	Ensure that window frame paneling (2) is seated correctly.
37	Install rear door lining		AR72.12-P-1010LF
38	Check for proper function and synchronize power window

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
