Remove/install folding table - AR68.20-P-8305LF

MODEL 222.1/9

with CODE 224 (Rear individual seat design)

with CODE 449 (folding tables in the rear)

Fig 1: Folding Table Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 2: Folding Table Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

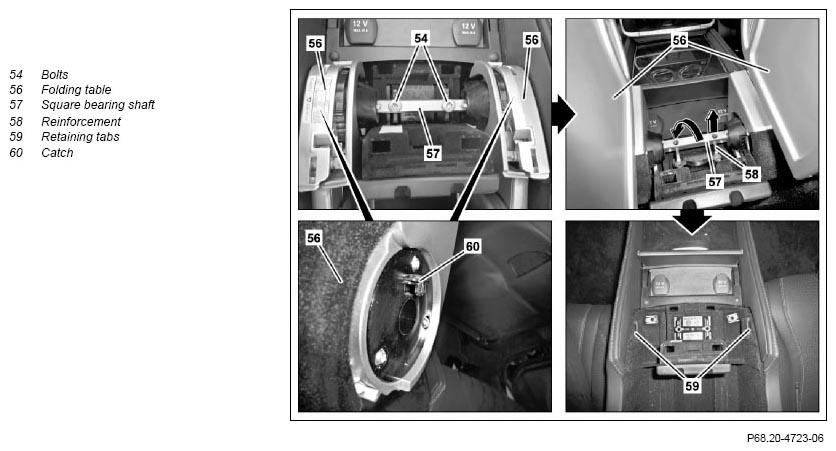

Fig 3: Folding Table Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open armrest cover (32) on bottom rear center console (25)
2	Unhook outer trim plates (44) and remove	First press outer trim plate (44) toward rear, then pull upward (arrow A) and then remove (arrow B).
3	Unclip center trim plate (53)	Removal:  Remove center trim plate (53) upward.
4	Remove screw/bolts (54)
5	Raise folding table (56)
6	Guide folding table (56) out of bottom rear center console (25)	Move the folding tables (56) back into the bottom rear center console (25) in the opposite order as removal. The catches (60) on the folding tables (56) should engage in the retaining tabs (59). Removal:  Lift square bearing shaft (57) and put down on reinforcement (58) and then move out upward and vertically.
7	Install in the reverse order
