Remove/install left footwell bass speaker - AR82.62-P-7820LF
MODEL 217, 222

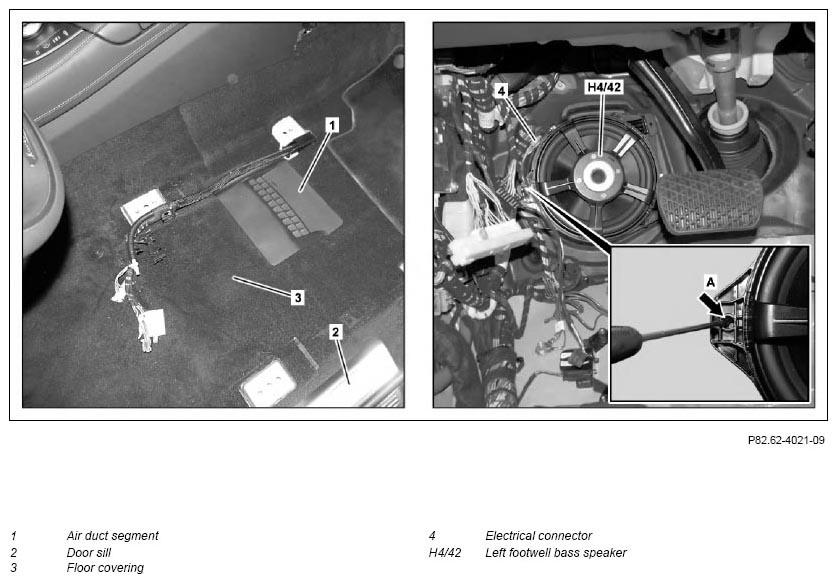

Shown on MODEL 222
| Remove/install | |||
| 1 | Remove left front seat | AR91.10-P-1000LF | |
| 2 | Remove left cover below instrument panel | MODEL 217, 222.0/1/9 | AR68.10-P-1500LF |
| 3 | Remove left door sill (2) | MODEL 217, 222 | |
| MODEL 217 | AR68.30-P-4100LC | ||
| 4 | Remove air duct segment (1) | ||
| 5 | Remove accelerator pedal | AR30.12-P-1321LF | |
| 6 | Remove floor covering (3) | MODEL 217, 222 | |
| MODEL 217 | AR68.20-P-2050LC | ||
| 7 | Disconnect electrical connector (4) | ||
| 8 | Twist and remove the catch (arrow A) 900 counterclockwise with a screwdriver. | ||
| 9 | Remove left footwell bass speaker (H4/42) | ||
| 10 | Install in the reverse order |
