Remove/install contact plate for cell phone holder (UPCI (UHI)) in the armrest - AR82.70-P-8919LF

MODEL 217

with CODE 386 (Comfort telephony)

MODEL 222

with CODE 386 (Comfort telephony)

MODEL 222

with CODE 856 (Business telephony in rear passenger compartment)

without CODE 224 (First-Class rear compartment)

Vehicles with CODE 386 (Comfort telephony)

Vehicles with CODE 856 (Business telephony in rear)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

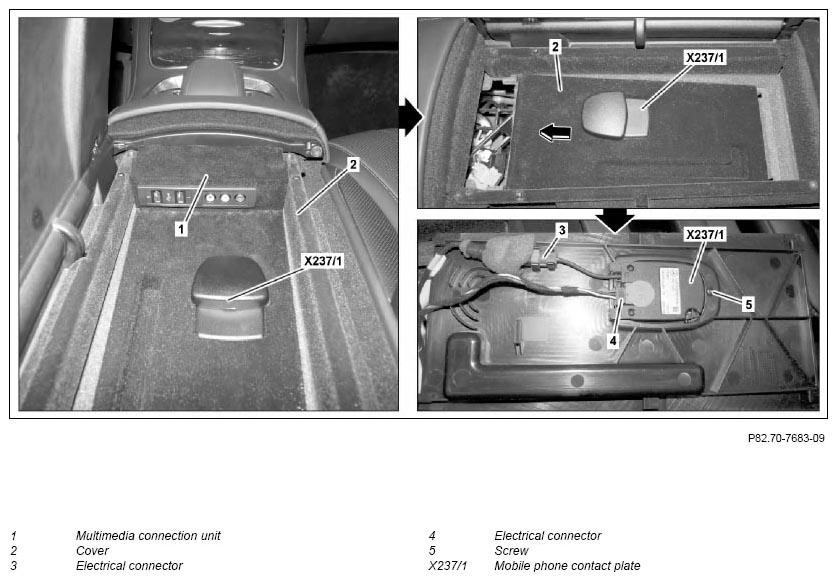

1	Open stowage compartment in front armrest or in rear armrest
2	Unclip multimedia connection unit (1) upwards and place to one side	MODEL 217 with CODE 386 (Comfort telephony) MODEL 222 with CODE 386 (Comfort telephony) The electrical connectors at the multimedia connection unit (1) remain connected.
3	Move cover (2) in direction of arrow, remove and turn	MODEL 217 with CODE 386 (Comfort telephony) MODEL 222 with CODE 386 (Comfort telephony)

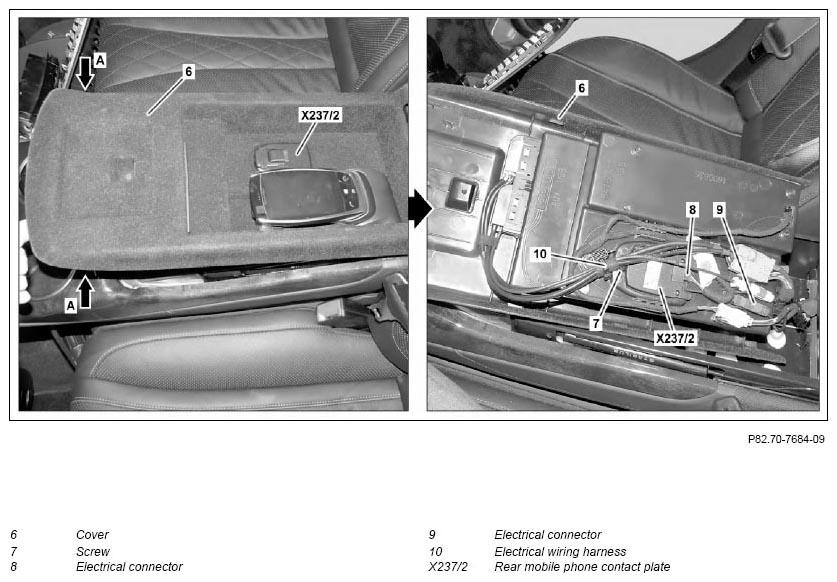

4	Unclip cover (6) in area of arrows (A) with a long wedge, remove and turn over	MODEL 222 with CODE 856 (Business telephony in rear passenger compartment) without CODE 224 (First-Class rear compartment) Long wedge	Figure
5	Remove electrical connector (3) or electrical connector (9) from guide and disconnect
6	Disconnect electrical connector (4) or electrical connector (8)
7	Remove screw/bolt (5) and remove mobile phone contact plate (X237/1)	MODEL 217 with CODE 386 (Comfort telephony) MODEL 222 with CODE 386 (Comfort telephony)
8	Remove screw/bolt (7) and remove rear mobile phone contact plate (X237/2)	MODEL 222 with CODE 856 (Business telephony in rear passenger compartment) without CODE 224 (First-Class rear compartment) To remove screw/bolt (7), press electrical wiring harness (10) to one side.
9	Install in the reverse order
