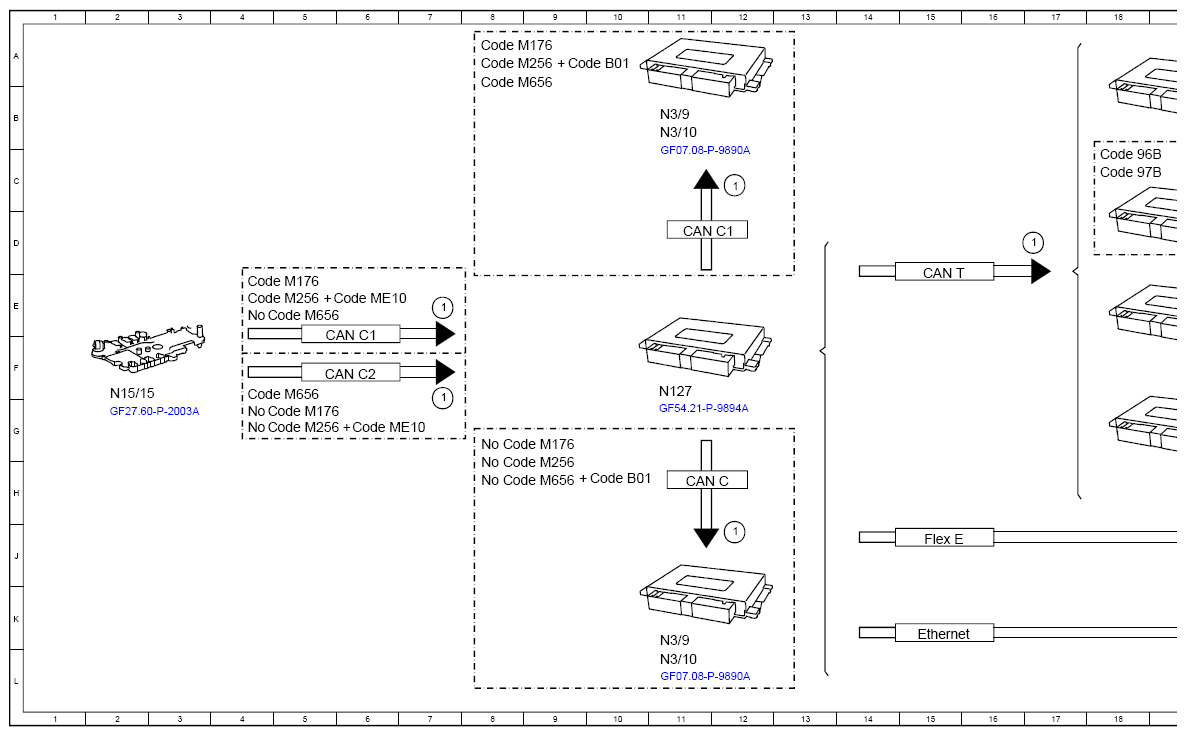

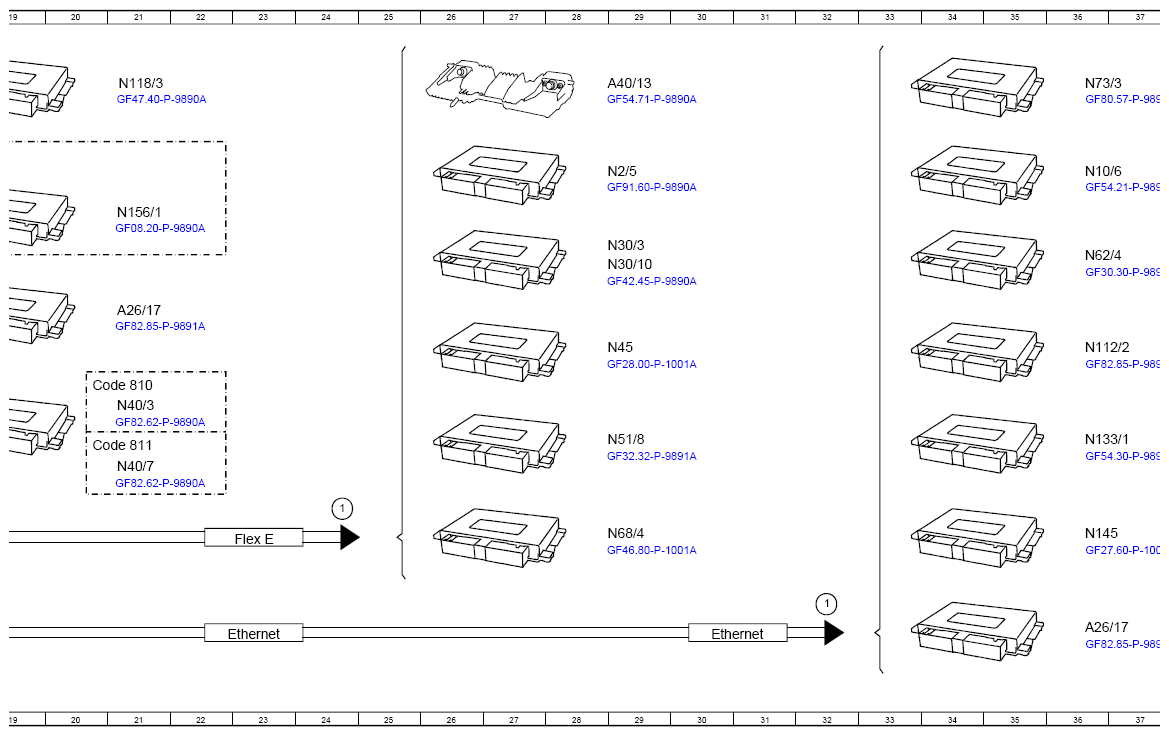

(Function Schematic For Detection Of Transmission Position - PE27.19-P-2500-97C)
Model 223 with transmission 725
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engaged gear, signal | 12C |
| 1 | Engaged gear, signal | 17D |
| 1 | Engaged gear, signal | 24H |
| 1 | Engaged gear, signal | 32K |
| 1 | Engaged gear, signal | 12J |
| 1 | Engaged gear, signal | 7F |
| 1 | Engaged gear, signal | 7E |
| A26/17 | Head unit | 36K |
| A26/17 | Head unit | 21E |
| A40/13 | Multifunction camera | 28B |
| CAN C | CAN for engine | 11H |
| CAN C1 | CAN 1 for drive | 11D |
| CAN C1 | CAN 1 for drive | 6F |
| CAN C2 | CAN 2 for drive | 6F |
| CAN T | CAN for drivetrain | 15E |
| Code 810 | Premium sound system | 20F |
| Code 811 | High-End sound system | 20G |
| Code 96B | Driving noise reduction via speakers (RNC) | 18C |
| Code 97B | Engine noise reduction via speakers (EOC) | 18C |
| Code B01 | 48V technology | 9A |
| Code B01 | 48V technology | 10H |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 8A |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 8G |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 4E |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 4G |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 8A |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 8H |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 4E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 4G |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 8B |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 8H |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 4E |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 4F |
| Code ME10 | Hybrid vehicle | 5E |
| Code ME10 | Hybrid vehicle | 6G |
| Ethernet | Ethernet | 15K |
| Ethernet | Ethernet | 23K |
| Ethernet | Ethernet | 30K |
| Flex E | Chassis FlexRay | 15J |
| Flex E | Chassis FlexRay | 23J |
| N10/6 | Front signal acquisition and actuation module control unit | 36C |
| N112/2 | Telematics services communication module | 36F |
| N118/3 | Fuel pump control unit | 21B |
| N127 | Drivetrain control unit | 11F |
| N133/1 | Instrument cluster control unit | 36G |
| N145 | Transmission mode control unit | 36J |
| N15/15 | Fully integrated transmission control electric controller unit | 2F |
| N156/1 | Sound generator control unit | 21D |
| N2/5 | Supplemental restraint system control unit | 28C |
| N3/10 | Engine management control unit | 11L |
| N3/10 | Engine management control unit | 11B |
| N3/9 | Engine management control unit | 11K |
| N3/9 | Engine management control unit | 11B |
| N30/10 | Electronic Stability Program control unit | 28D |
| N30/3 | Electronic Stability Program control unit | 28D |
| N40/3 | Sound system amplifier control unit | 21G |
| N40/7 | Sound system amplifier control unit | 21H |
| N45 | All-wheel drive control unit | 28F |
| N51/8 | Suspension and damping system control unit | 28G |
| N62/4 | Driver assistance systems control unit | 36D |
| N68/4 | Rear axle steering control unit | 28J |
| N73/3 | Electronic ignition switch control unit | 36B |
