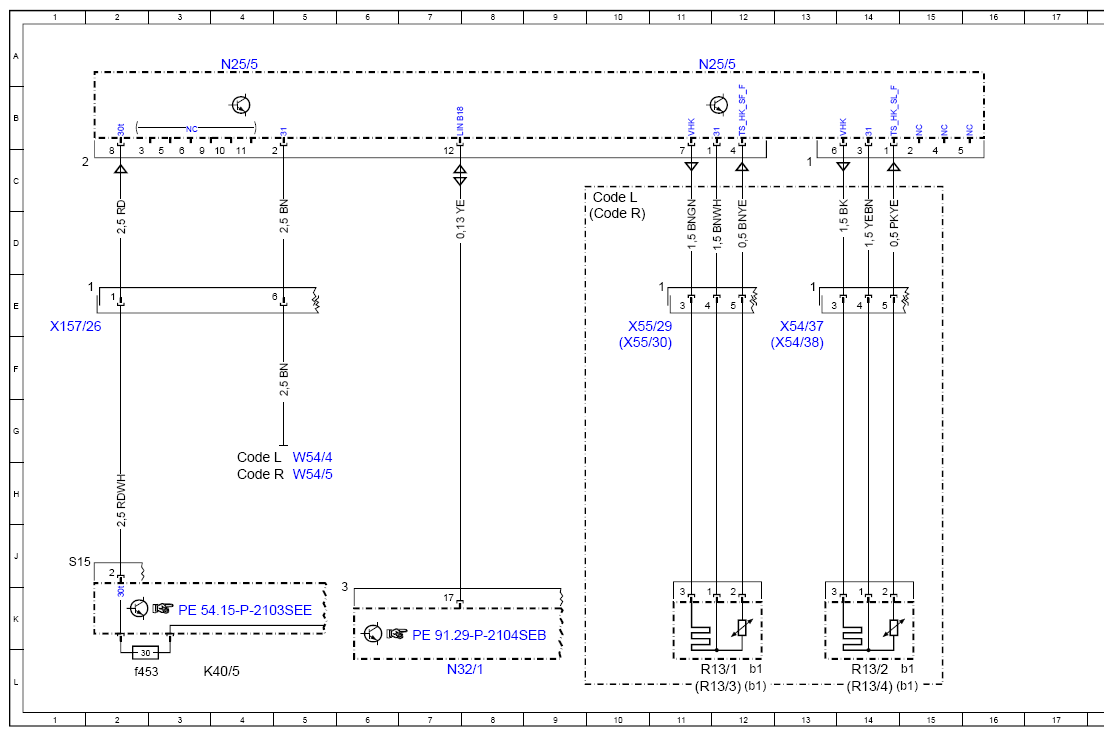

Wiring Diagram For Seat Heater Control Unit - PE91.30-P-2104-97SEE
Model 217, 222 as of model year 2018 with code 432 (Dynamic seats left and right) Control unit N25/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code L | LEFT-HAND DRIVE | 10C |
| Code L | LEFT-HAND DRIVE | 4H |
| Code R | RIGHT-HAND DRIVE | 10D |
| Code R | RIGHT-HAND DRIVE | 4H |
| K40/5 | Rear fuse and relay module | 4L |
| K40/5f453 | Fuse 453 | 2L |
| N25/5 | Driver seat heater control unit | 4A |
| N25/5 | Driver seat heater control unit | 11A |
| N32/1 | Driver seat control unit | 7L |
| R13/1 | Left front seat sitting surface heated cushion | 11L |
| R13/1b1 | Left front seat sitting surface heater pad temperature sensor | 12L |
| R13/2 | Left front backrest heated cushion | 14L |
| R13/2b1 | Left front seat backrest heater pad temperature sensor | 15L |
| R13/3 | Right front seat sitting surface heated cushion | 11L |
| R13/3b1 | Right front seat sitting surface heater pad temperature sensor | 12L |
| R13/4 | Right front backrest heated cushion | 14L |
| R13/4b1 | Right front seat backrest heater pad temperature sensor | 15L |
| W54/4 | Left rear wheel well ground point (vehicle interior) | 5H |
| W54/5 | Right rear wheel well ground point | 5H |
| X157/26 | Driver seat heater control unit ambiance illumination electrical connector | 1E |
| X54/37 | Left front seat backrest heater pad electrical connector | 13E |
| X54/38 | Right front seat backrest heater pad electrical connector | 13F |
| X55/29 | Left front seat surface heater pad electrical connector | 11E |
| X55/30 | Right front seat surface heater pad electrical connector | 10F |
