Remove/Install Fluid Reservoir - AR83.30-P-6520LFA

Model 217, 222

With Code 1U6 (R744 refrigerant)

Courtesy of MERCEDES-BENZ USA

Shown On Model 217

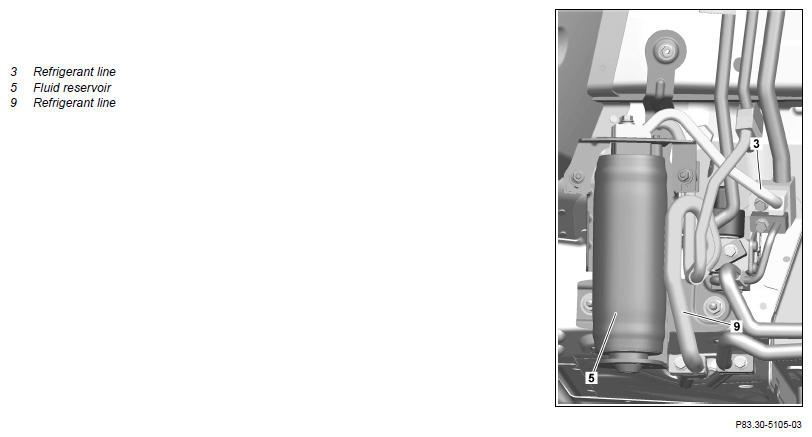

Shown On Model 222 With Code 582 (Rear air conditioner)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown On Model 217

	Risk of injury  when working on air conditioning systems due to R744 refrigerant escaping under pressure. Risk of suffocation from inhaling R744 refrigerant in high concentrations. Health hazard caused by inhalation of R744 refrigerant	Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0008-01A
Notice	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-P-0005-01KOA
	Notes on handling refrigerant R744		AH83.30-P-0003-03A
	Remove/install
1	Drain air conditioning system		AR83.30-P-1760LF
2	Remove left front wheel		AR40.10-P-1102A
3	Remove left fender liner (1)		AR88.10-P-1300LF
4	Remove refrigerant line (3)	:  Do not use any tools to sever the connections and avoid damage (scratches, notches) to the sealing surfaces. Otherwise, the integrity of the refrigerant circuit can no longer be ensured. :  Gaskets must be replaced.
		Bolt, refrigerant line to fluid reservoir	*BA83.30-P-1015-01P
		Bolt, connecting point for lines If damage (scratches, notches) occurs to the sealing surfaces ↓ Replace corresponding component.	*BA83.30-P-1009-01P
5	Use suitable stop plugs to seal openings	Record plug	Fig 1
6.1	Remove refrigerant line (4)	Model 217 with code 1U6 (R744 refrigerant) Model 222 with code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear) :  Do not use any tools to sever the connections and avoid damage (scratches, notches) to the sealing surfaces. Otherwise, the integrity of the refrigerant circuit can no longer be ensured. :  Gaskets must be replaced.
		Bolt, connecting point for lines	*BA83.30-P-1009-01P
		Bolt, refrigerant line to fluid reservoir If damage (scratches, notches) occurs to the sealing surfaces ↓ Replace corresponding component.	*BA83.30-P-1015-01P
6.2	Remove refrigerant line (9)	Model 222 with code 1U6 (R744 refrigerant) with code 582 (Air conditioning, rear) :  Do not use any tools to sever the connections and avoid damage (scratches, notches) to the sealing surfaces. Otherwise, the integrity of the refrigerant circuit can no longer be ensured. :  Gaskets must be replaced.
		Bolt, connecting point for lines	*BA83.30-P-1009-01P
		Bolt, refrigerant line to fluid reservoir If damage (scratches, notches) occurs to the sealing surfaces ↓ Replace corresponding component.	*BA83.30-P-1015-01P
7	Use suitable stop plugs to seal openings	Record plug	Fig 1

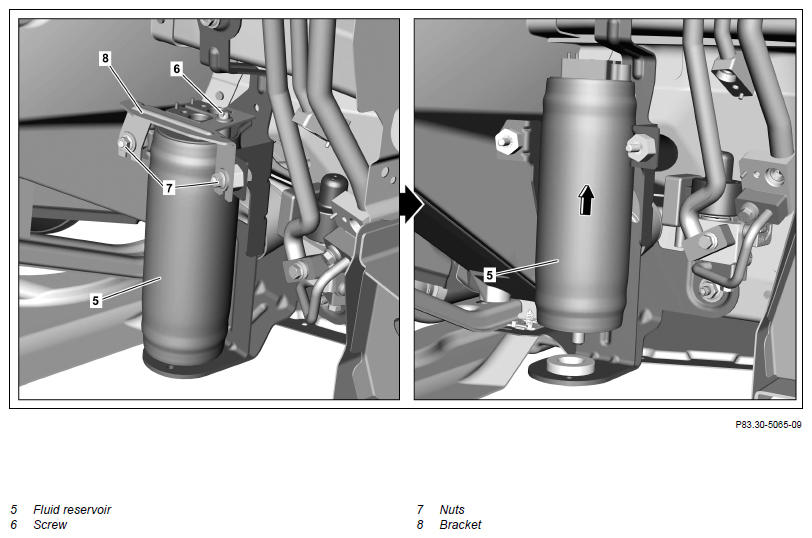

8	Remove bolt (6)	Bolt/nut, refrigerant reservoir bracket to bracket	*BA83.30-P-1013-01P
9	Unfasten nuts (7)	Bolt/nut, refrigerant reservoir bracket to bracket	*BA83.30-P-1013-01P
10	Remove holder (8)
11	Lift up and remove fluid reservoir (5) in direction of arrow
12	Install in the reverse order

Fig 1: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
