Remove/Install Air Conditioning Control And Operating Unit - AR83.25-P-1124LF

Model 222.0/1/9

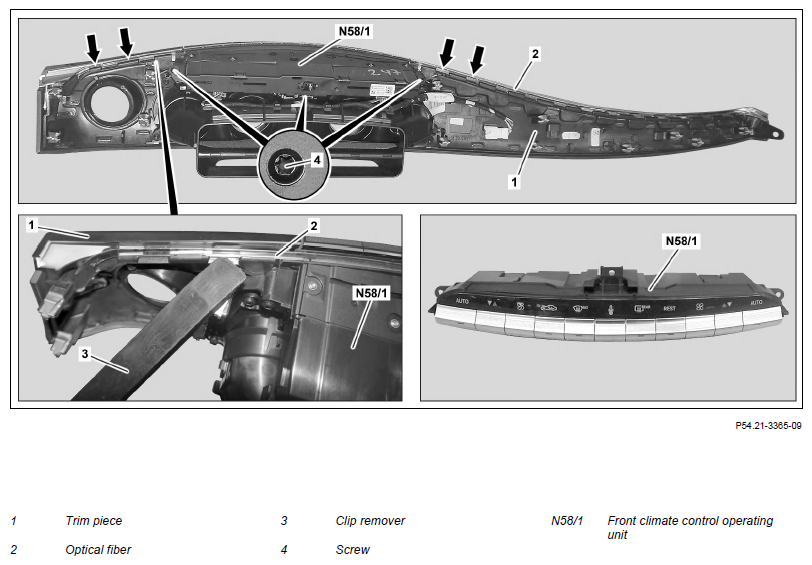

Fig 1: Air Conditioning Control And Operating Unit Components Location - Model 222.1

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove trim piece (1) from instrument panel		AR68.10-P-1180LF
2	Unclip optical fiber (2) at marked positions (arrows) from trim piece (1)	Carefully unclip optical fiber (2) with clip remover (3). Otherwise damage to the optical fiber (2) may occur that requires an exchange of the optical fiber (2).
		Clip remover	Fig 2
3	Remove bolts (4)
4	Carefully lift optical fiber (2) and remove front climate control operating unit (N58/1) from trim piece (1)
5	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
